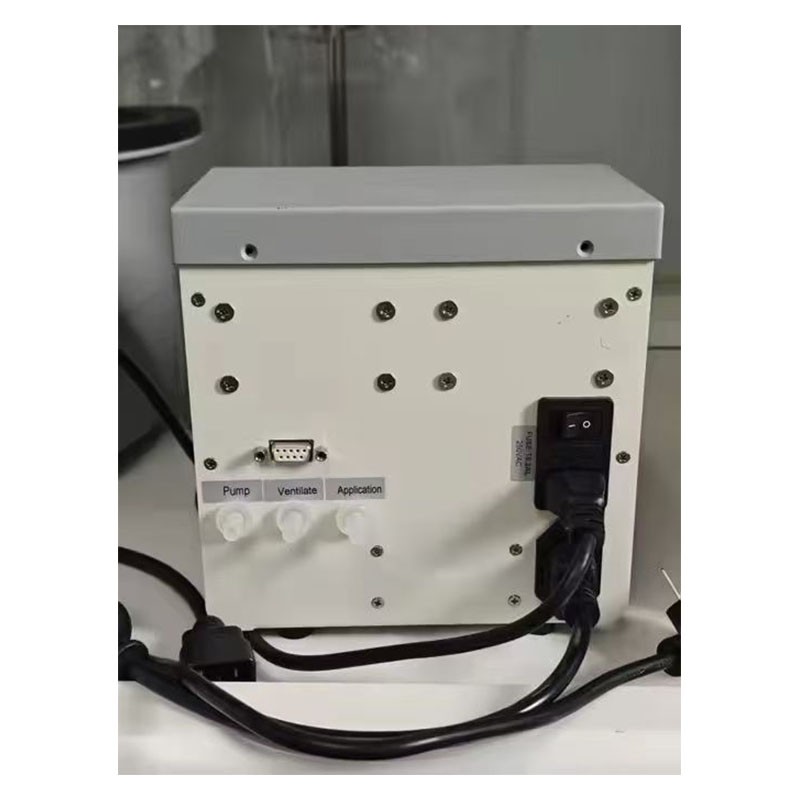

VC100 Vacuum Controller
- Category： Rotary evaporator
- Brand:Shu Yu
- Name：VC100 Vacuum Controller
- Wide range of measurement and control, 1-1,000mbar Two control modes available Single-point control and programmed control
The Vacuum Controller serves as a device for labs to
display, adjust and control the degree of vacuum in
vacuum systems. It generally constitutes the vacuum
control system of Rotary evaporator along with
vacuum pump, which enables repeatable distillation
experiment and recovery of many kinds of solvents in
an efficient and automatic manner.
Features
●Wide range of measurement and control,
1-1,000mbar
●Two control modes available Single-point
control and programmed control
●Stores up to 5 programs, each containing up to
5 steps of programming control
●Large TFT touch screen display control
provides easy operation
●All parts in contact with vapor or liquid are
made of PTFE, ceramics or other
high-performance materials which effectively
resists corrosion caused by organic solvents,
water, acid and alkali
●Built-in vent valve can feed inert gas into
system equipment
●One-click decompression allows easy
installation and dismantling of vacuum system
●Can be connected with pump power control for
temporary shutdown of pump power supply
after reaching stable degree of vacuum for
energy conservation and environmental
protection.
●Can also be operated in the normally open
status of pump
●Reliable and functional design to fulfill essential
needs of precise vacuum regulation
Parameters
|
Specifications |
VC100 |
|
Vacuum setting range |
1–1000mbar |
|
Vacuum measurement range |
1–1000mbar |
|
Control mode |
Single–point control mode, Programmed control mode |
|
Control program |
Can store up to 5 programs, each containing 5–step control (capable to set the degree of vacuum and time) |
|
Setting method |
Touch screen setting |
|
Display |
5" TFT |
|
Sensor overload pressure |
1,500mbar |
|
Connector diameter |
8mm |
|
Materials in contact with vapor |
PTFE, PP, silicone and ceramics |
|
Power |
600W |
|
Compatible conditions with vacuum pump |
Power of 50Hz vacuum pump ≤400W；Power of 60Hz vacuum pump ≤500W |
|
Overall dimensionsWxDxH |
189x207x193mm |
|
Weight |
4.0kg |
|
Voltage,Frequency |
110 240V,50Hz/60Hz |
|
Operating environment |
10℃ ~40℃ ≤80%RH |
