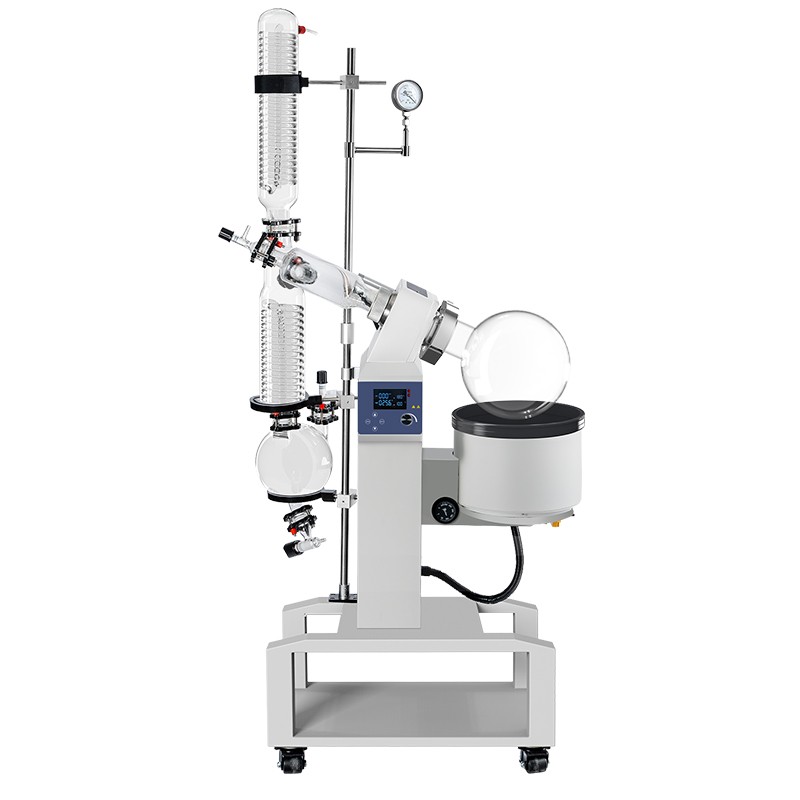

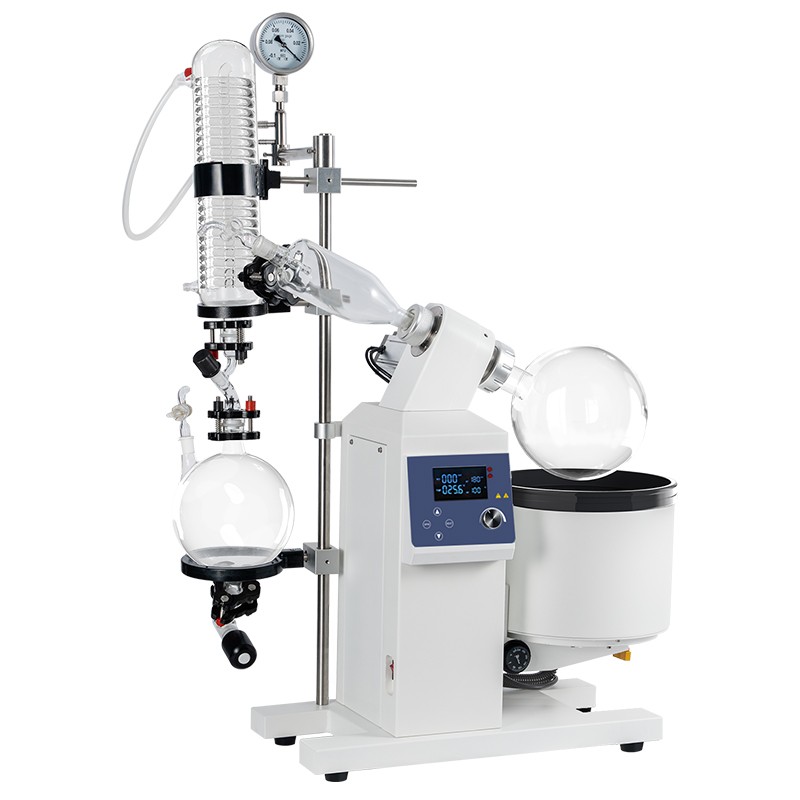

Pilot grade CNC rotary evaporator

Category： Rotary evaporator
Brand:Shu Yu

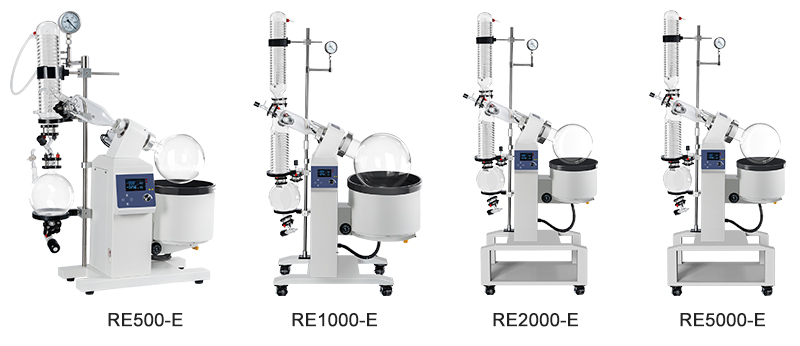

Model：RE500 - E/RE1000 - E/RE2000 - E/RE5000 - E
Suitable for pilot-scale production, large-scale application in biology engineering, pharmaceutical industry, chemical industry,beauty industry, medical industry and food processing.
INQUIRY EMAIL

Description
Suitable for pilot-scale production,
large-scale application in biology
engineering, pharmaceutical industry,
chemical industry,beauty industry, medical
industry and food processing.

Features
●LCD display with a simple and easy-to-operate interface, allowing multiple sets of data to be displayed on one screen.
●PID controller for precise control and quick setting.
●Stepless lifting of the water bath pot, ensuring stable lifting with low noise.
●Equipped with forward and reverse rotation functions, suitable for concentrating powder and samples containing solids.
●Double-layer high-efficiency condensing tube with a large cooling area and strong evaporation capacity, ensuring efficient recovery of samples from small to large quantities and preventing backflow in the evaporation condenser through its design.
●Professionally sealed system design with PTFE sealing rings, resistant to high temperatures and corrosion, and durable.
●Automatic control: A Vacuum Controller can be optionally configured to control the vacuum degree of samples and realize automatic solvent separation.
●The inner layer of the bath pot is made of Teflon coating, which is resistant to high temperatures and corrosion, easy to clean, and avoids cross-contamination during experiments.
vSpecial heat insulation design keeps the surface temperature of the pot shell low, preventing scalds to experimenters.
●Equipped with an automatic switching valve for continuous collection without affecting the system's negative pressure index and solvent distillation.
●Dual heating modes of water bath/oil bath (water bath is standard).
●Capable of continuous feeding.
●Digital display steam temperature sensing device can feed back the solvent steam temperature in real time, which is beneficial for adjusting the appropriate vacuum degree.

Parameters

Model	RE500 - E	RE1000 - E	RE2000 - E	RE5000 - E
Evaporator Capacity	5L	10L	20L	50L
Temperature Range	Water Bath: 20 - 100℃; Oil Bath: 20 - 180℃ (Optional)	Water Bath: 20 - 100℃; Oil Bath: 20 - 180℃ (Optional)	Water Bath: 20 - 100℃; Oil Bath: 20 - 180℃ (Optional)	Water Bath: 20 - 100℃; Oil Bath: 20 - 180℃ (Optional)
Temperature Control Accuracy	±1℃	±1℃	±1℃	±1℃
Rotation Speed Range	20 - 180rpm	20 - 130rpm	20 - 130rpm	20 - 130rpm
Rotation Direction	Forward & Reverse Rotation	Forward & Reverse Rotation	Forward & Reverse Rotation	Forward & Reverse Rotation
Maximum Evaporation Capacity (Max. L/h)(Evaporation Capacity of 75% Ethanol)	2	3.8	5	11
Ultimate Vacuum Degree	9 mbar	9 mbar	9 mbar	9 mbar
Temperature Control Mode	Microcomputer PID Control	Microcomputer PID Control	Microcomputer PID Control	Microcomputer PID Control
Display	LCD (Temperature/Rotation Speed/Forward/Reverse Rotation/Timing)	LCD (Temperature/Rotation Speed/Forward/Reverse Rotation/Timing)	LCD (Temperature/Rotation Speed/Forward/Reverse Rotation/Timing)	LCD (Temperature/Rotation Speed/Forward/Reverse Rotation/Timing)
Timing Function	Available	Available	Available	Available
Time Setting Range	0 - 999min	0 - 999min	0 - 999min	0 - 999min
Lifting Method	Automatic	Automatic	Automatic	Automatic
Lifting Stroke	130mm	200mm	180mm	250mm
Motor Type	Lifting Motor: DC Brushed Motor; Rotation Motor: High-Voltage Brushless Motor	Lifting Motor: DC Brushed Motor; Rotation Motor: High-Voltage Brushless Motor	Lifting Motor: DC Brushed Motor; Rotation Motor: High-Voltage Brushless Motor	Lifting Motor: DC Brushed Motor; Rotation Motor: High-Voltage Brushless Motor
Heating Power	2000W	3000W	4000W	5000W
Power Supply	220V, 50/60Hz	220V, 50/60Hz	220V, 50/60Hz	220V, 50/60Hz
Dimension [D×W×H]	600×290×720mm	790×480×1130mm	900×490×1320mm	1030×510×1370mm
Allowable Ambient Temperature	5 - 40℃	5 - 40℃	5 - 40℃	5 - 40℃
Allowable Relative Humidity	≤80%RH	≤80%RH	≤80%RH	≤80%RH
Enclosure Protection Class	IP20	IP20	IP20	IP20
Safety Protection	Motor Overcurrent Protection, Leakage Protection, Dry-Burning Protection, Over-Temperature Protection	Motor Overcurrent Protection, Leakage Protection, Dry-Burning Protection, Over-Temperature Protection	Motor Overcurrent Protection, Leakage Protection, Dry-Burning Protection, Over-Temperature Protection	Motor Overcurrent Protection, Leakage Protection, Dry-Burning Protection, Over-Temperature Protection
