Henan Shuyu Launches YSF - 100L Double - Layer Glass Reactor
On October 15, 2025, Henan Shuyu Technology Co., Ltd. launched the YSF - 100L double - layer glass reactor. With its advanced performance and user - friendly design, the company provides an ideal solution with this equipment for experimental pilot tests in fields such as biopharmaceuticals, fine chemicals, and new material synthesis.

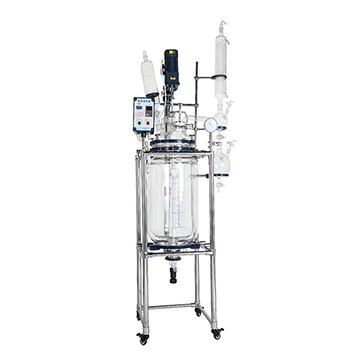

The YSF - 100L double - layer Glass Reactor integrates stirring, condensation, dropping, reflux, and collection systems fully. The inner layer can hold the reaction solvent for stirring reactions, and the interlayer achieves a wide temperature range reaction from - 80℃ to 260℃ through the circulation of cold and heat sources, meeting the needs of high - temperature (up to 300℃) and low - temperature experiments.
Under vacuum conditions (allowable pressure in the kettle: - 0.1 - 0.0Mpa), the reactor improves the evaporation efficiency. After the solvent vapor cools into liquid via the glass condensing coil (heat exchange area: 0.7㎡), it either flows back into the kettle or gets recovered through the valve at the lower part of the reflux elbow. After the reaction completes, the operator can also discharge the material conveniently from the side discharge port at the bottom of the kettle.
At the same time, the company makes the kettle body from high - borosilicate glass 3.3, and its fully transparent feature lets people see the reaction process clearly.
In terms of product features, the company adopts a stainless steel frame structure for the whole machine, and ingeniously matches the three - way and four - way connections, making the structure compact, firm and easy to move.
The company uses high - borosilicate glass 3.3 and polytetrafluoroethylene materials for all parts in contact with materials, which have stable performance, don't easily chemically react with materials, and ensure safe use.
The stirring system uses a servo motor, and the operator adjusts the speed through frequency conversion control, with a range of 0 - 800rpm/min. The company also offers a full explosion - proof system as an option. The double - display explosion - proof box digitally displays the speed and the temperature of the materials in the kettle, making the operation simple and the data display clear.
The company equips the stirring system with ceramic bearings and mechanical seals, which prevent the stirring rod from wearing and chipping, and have the advantages of high temperature resistance, wear resistance and good sealing effect. The company designs the stirring paddle in a crescent shape, which is based on 304 stainless steel and coated with polytetrafluoroethylene, with high strength and strong corrosion resistance.
In addition, the company uses a PT100 temperature sensor and a glass thermometer sleeve for the equipment, and equips it with a vacuum pressure gauge to display the vacuum degree in real time. The glass discharge valve has no liquid accumulation, and the operator can recover the solution quickly through side discharge. The company also installs universal wheels with brakes at the bottom of the machine, which makes the overall movement operation more convenient.
With its excellent performance and considerate design, the YSF - 100L double - layer glass reactor launched by Henan Shuyu Technology Co., Ltd. this time will bring great convenience to researchers' experimental work and promote the efficient development of experimental research and development work in related fields.
