Industrial grade numerical control rotary evaporator

Category： Rotary evaporator
Brand:Shu Yu

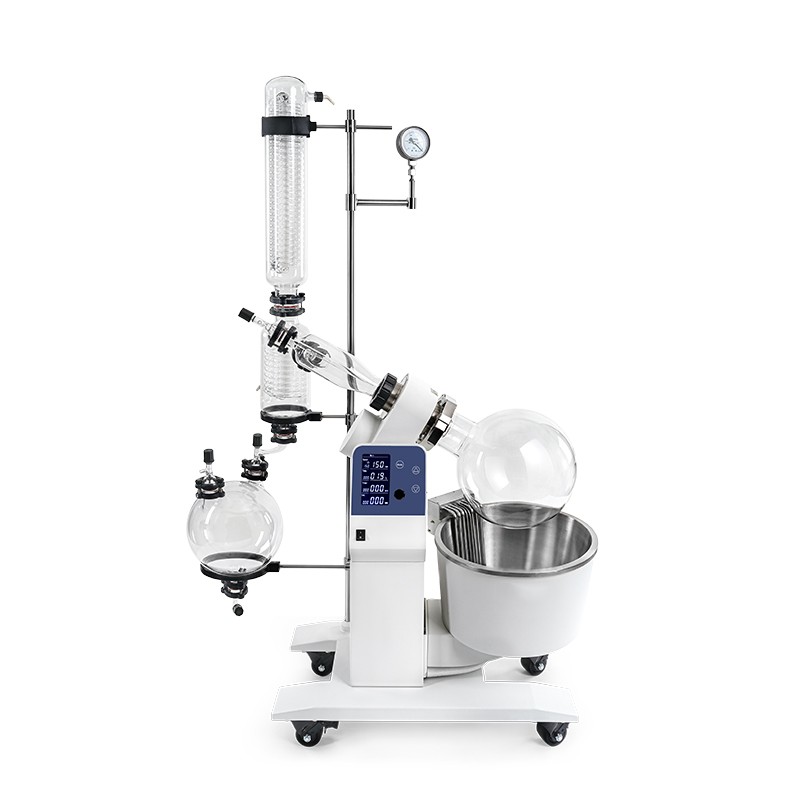

Name：RE200-Pro Industrial grade numerical control rotary evaporator
Suitable for pilot-scale production, large-scale application in biology engineering, pharmaceutical industry, chemical industry,beauty industry, medical industry and food processing.
INQUIRY EMAIL

Description
Suitable for pilot-scale production,
large-scale application in biology
engineering, pharmaceutical industry,
chemical industry,beauty industry, medical
industry and food processing.

Features
●Large LCD digital display with heating
temperature, rotation speed,
clockwise&anticlockwise and time
information
●One-click automatic motor lifting (stroke
180mm), smooth and silent
●Water/ oil heating bath with wide
temperature range from RT to 180 °C
●Speed range from 10 to 150rpm, and interval
operation in clockwise and anticlockwise
directions for drying process

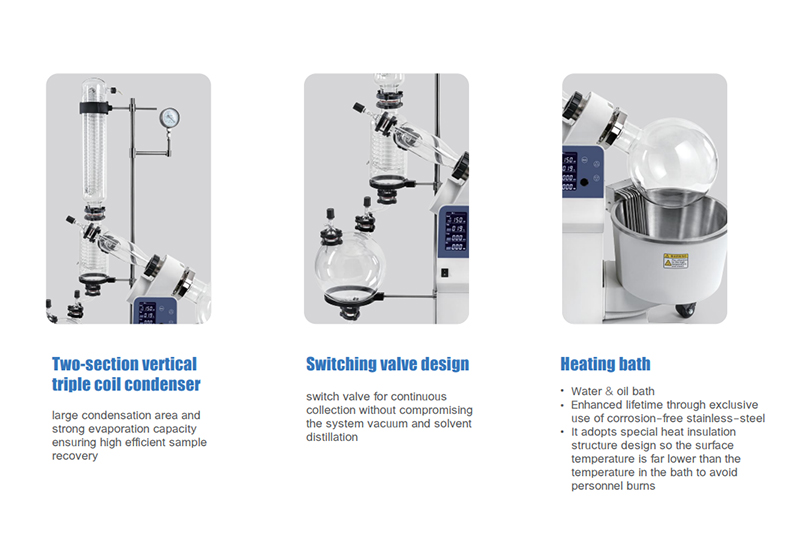

●Two-section vertical triple coil condensing
tube with large area and strong evaporation
capacity ensuring high-efficiency sample
recovery
●Patented connector for evaporating flask
easy & quick installation
●PTFE double sealing ring with excellent
sealing performance
●Switch valve for continuous collection
without compromising the system vacuum

and solvent distillation

Parameters

Specifications	RE200 - Pro
performance
Temperature range	Room temp. ~180℃ (water and oil bath)
Temperature control accuracy	Water: ±1℃；Oil: ±3℃
Rotation Speed	10 - 150rpm
Evaporation capacity	Max.4.0L/h (water)
Ultimate vacuum	Less 2.6hpa
function
Temperature control	Micro processor PID control
Display	LCD (temperature/speed/clockwise and Anti - clockwise/time)
Lift stroke	Motorized 180mm
Safety features	Motor over - current protection, earth - leakage protection, lifting overload protection, Boil - dry protection, Overheating protection
components
Evaporation flask	Round flask 20L
Receiving flask	Round flask 10L with drain valve
Condenser	Two - section vertical triple coil condenser, cooling surface 1.2㎡
specification
Heating bath size	∅450×240mm
Hose connection	Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm
Dimension[D×W×H]	1160×600×1860mm
Voltage/Frequency	220V/50/60Hz
Power	4600w
Heating Power	4400w
