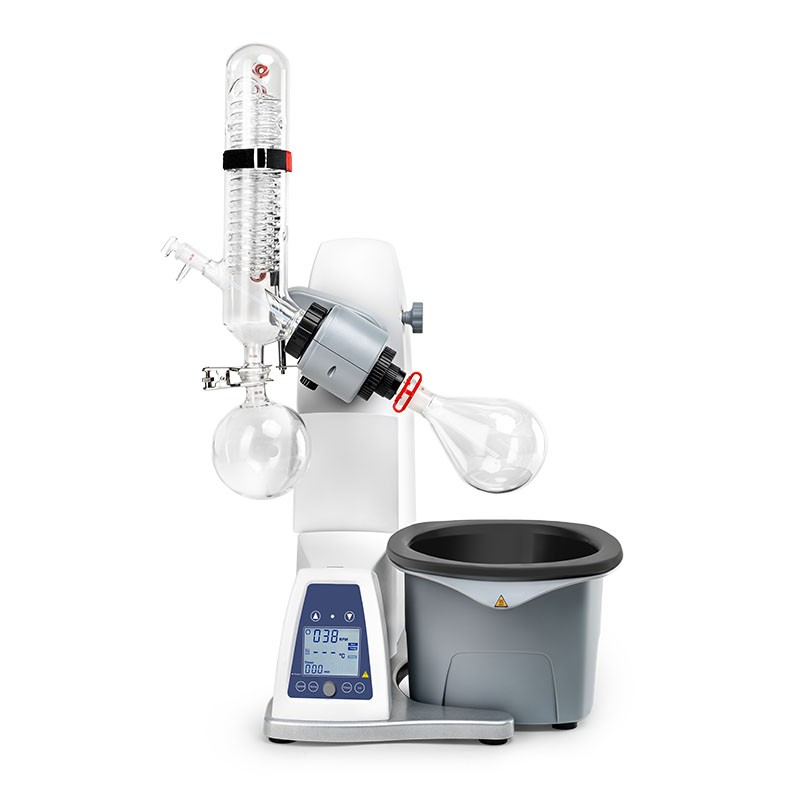

Rotary Evaporator

Category： Rotary evaporator
Brand:Shu Yu
Name：RE100-Pro Rotary Evaporator
It is highly used in chemical industries, pharmaceutical industries and also higher learning institution
INQUIRY EMAIL

Description
It is highly used in chemical industries, pharmaceutical industries and also
higher learning institution

Features
●Digital LCD display of both rotation speed and heating
temperature allows for optimal control of all distillation
processes
●Automatic motor lift releases the evaporating flask to a
safe position in case of power failure
●5L heating bath with wide temperature range from room
temperature to 180 °C Water/oil heating mode can be
changed only through a switch
●Overheating protection temperature at 220 °C
●Boil-dry protection, automatically power off if heating
without water/oil in the heating bath
●Speed range from 20 to 280rpm, and interval operation in
clockwise and anticlockwise directions for drying process
●Patented condenser (cooling surface 1700cm²) with
excellent cooling effect
●Ejection mechanism ensures easy removal of evaporating
flask
●Patented double spring sealing ring made of PTFE
provides an excellent sealing performance
●Optional glassware with explosion proof film available

Parameters

Specifications	RE100 - Pro
Motor Type	Brushless DC motor
Speed Range	20 - 280rpm
Display	LCD(speed, temperature, time)
Direction of Rotation	Clockwise and counterclockwise
Heating Temperature Range	Room temp. to 180℃
Control Accuracy	water: ±1℃; oil: ±3℃
Heating Power	1300W
Lift stroke	Motorized 150mm
Timer	Yes
Time Setting Range	1 - 999min
Dimension[D×W×H]	465×457×583mm
Weight	15kg
Permissible Ambient Temperature	5 - 40℃
Permissible Relative Humidity	80%RH
Protection Class	IP20
USB Interface	Yes
Voltage/Frequency	100 - 120/200 - 240V，50/60Hz
Power	1400W
