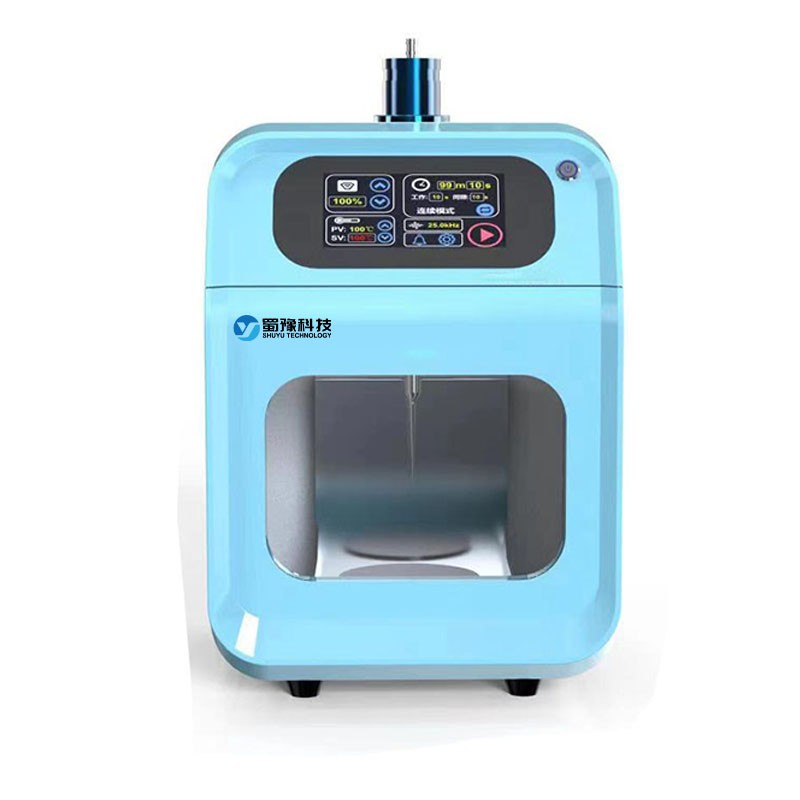

Ultrasonic Crusher XM-650DT

Category： Ultrasonic Crusher
Brand:Shu Yu
Name：Ultrasonic Crusher XM-650DT
Biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physical chemistry, zoology.
INQUIRY EMAIL

Description
The integrated series of ultrasonic cell disruptors ( crushers ) is a new product independently developed by our company. It has complete functions, a novel appearance and reliable performance. The instrument adopts a large - screen liquid crystal display; the control adopts a central microcomputer for centralized control, and the ultrasonic output, interval time, ultrasonic power and temperature can be set arbitrarily. The sample temperature is detected and displayed, the frequency is automatically tracked, and the fault is automatically alarmed.

Application Fields
Biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physical chemistry, zoology.

Working Principle
This instrument is a multi - functional and multi - purpose instrument that uses the cavitation effect of intense ultrasonic waves in liquids to perform ultrasonic treatment on substances. It can be used for the disruption of animal and plant tissues, cells, bacteria, and spore species. At the same time, it can also be used for emulsification, separation, dispersion, homogenization, extraction, degassing, cleaning and accelerating chemical reactions, etc. It is widely used in fields such as biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physical chemistry, and zoology. This instrument is composed of an ultrasonic generator ( power supply ), a transducer component and a sound - insulation cabinet, connected by cables in between.

Excellent Performance: Explorer in the Field of Ultrasonic Technology
The new - type integrated ultrasonic cell disruptor has reliable ultrasonic technology and is superior in cell disruption, material dispersion, protein extraction, DNA fragmentation, sample emulsification and homogenization. It can handle as little as 0.1 μL and as much as 3000 mL, meeting different experimental requirements.

The new technology has higher performance: The new - generation ultrasonic generator adopts integrated digital circuits and works in a pulsed mode. It has the functions of automatic frequency tracking and automatic power compensation; according to user feedback, the ultrasonic operation is stable and the ultrasonic power output is uniform. The experimental repeatability is good. Experiments have proved that compared with traditional ultrasonic devices, we have certain advantages in continuous ultrasonic, no - load ultrasonic, interval ultrasonic and the service life of ultrasonic probes.

The ultrasonic probe is made of high - purity titanium alloy of American standard TC4 material. The probe shapes are conical and wedge - shaped, and the wave emission form is vertical ultrasonic.

Manufacturing Process: Made in China, Proudly So

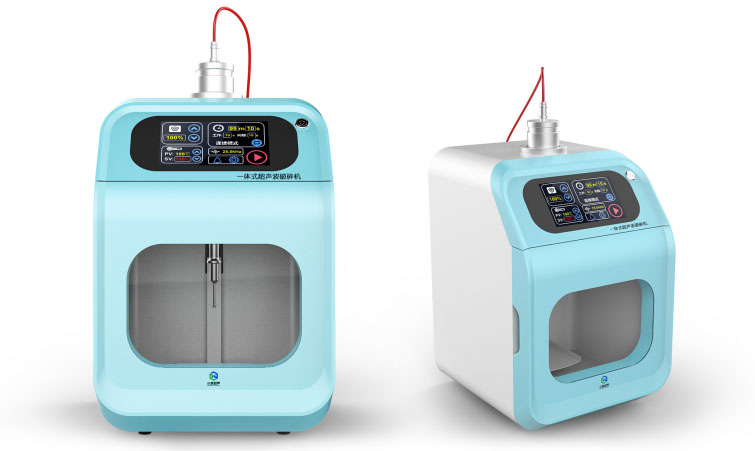

●Appearance Design: The shell is formed by ABS injection molding, with a streamline appearance and a man-machine engineering operation platform. The main unit and the sound-insulation box are integrated, making the whole machine elegant and decent.
● Adopt digital integrated circuits, and the instrument can perform no-load ultrasound and continuous ultrasound.
●The ultrasonic probe is small and delicate. The transducer adopts German IBDI chips, with high ultrasonic efficiency and not easy to generate heat.
●7-inch TFT medical touch screen for intuitive display of various parameters.
●Smart Design of Sound-insulation Box: Different from traditional ones, it uses built-in double-layer sound insulation cotton. The inside of the box body adopts PVC soft materials and is manufactured with an integral mold opening. During experiments, there is no need to worry about bacteria breeding on the sound insulation cotton due to liquid splashing, and better sound insulation effect is achieved at the same time.
● Equipped with functions such as an automatic lifting platform, ultraviolet sterilization, ozone disinfection, and lighting.

Case

	Sample Type 1	Sample Type 2
Sample Type	Caenorhabditis elegans, about 5×10⁵	Human whole blood DNA, 2 - 3kb, 1μg/tube
Sample Volume	500μL (1.5ml IPS tube)	80μL (200μL thin-walled tube)
Cross-linking Time	2% formaldehyde, 20min	–
Amplitude Setting	70%	70%
Ultrasonic Pulse	Pulse on 30s, Pulse off 30s	Pulse on 22s, Pulse off 22s
Ultrasonic Time	20min	15min
Set Temperature	4°C	4°C

Product Parameters

Model	XM-650DT	XM-900DT	XM-1000DT	XM-1200DT	XM-1500DT
Output Power	65 - 650W (10 - 100% adjustable)Note: Adjustable in 1% steps	90 - 900W (10 - 100% adjustable)Note: Adjustable in 1% steps	100 - 1000W (10 - 100% adjustable)Note: Adjustable in 1% steps	120 - 1200W (10 - 100% adjustable)Note: Adjustable in 1% steps	150 - 1500W (10 - 100% adjustable)Note: Adjustable in 1% steps
Working Frequency	20 - 35KHz (frequency automatic tracking) for all models
Processing Capacity	0.1 - 500ml (Need to select the corresponding probe)	0.1 - 800ml (Need to select the corresponding probe)	0.1 - 900ml (Need to select the corresponding probe)	1 - 1500ml (Need to select the corresponding probe)	1 - 2500ml (Need to select the corresponding probe)
Timing	0 - 9999M 99S (Can be set) for all models
Ultrasonic Pulse Time Adjustment	0.1 - 99.9s adjustable (Ultrasonic on / Ultrasonic off) for all models
Temperature Control	Controls sample temperature (0°C - 100°C, can be equipped with a constant temperature device) for all models
Alarm	Fault, temperature, time for all models
Input Method + Display Method	7-inch TFT touch screen + True color medical grade electrolytic screen for all models
Display Content	Frequency, temperature, power, time, etc. for all models
Protection Device	Program automatic shutdown, over-load, over-temperature protection display for all models
Password	With user password protection for all models
Optional Amplitude Rods for This Instrument	Φ2、Φ3、Φ6、Φ8、Φ10、Φ13	Φ2、Φ3、Φ6、Φ8、Φ10、Φ13、Φ15		Φ3、Φ6、Φ10、Φ13、Φ15、Φ20、Φ22
High-precision Constant Temperature Optional	50ml、100ml、250ml、500ml	50ml、100ml、250ml、500ml、1000ml

Probe Parameters

Horn Diameter (mm)	Φ2	Φ3	Φ6	Φ8	Φ10	Φ13	Φ15	Φ20	Φ22
Processing Volume (ml)	0.1 - 5	2 - 10	10 - 100	20 - 150	30 - 300	50 - 500	50 - 800	50 - 1200	50 - 1500
Power Ratio (10 - 100%)	10 - 45%	10 - 65%	10 - 100%	10 - 100%	10 - 100%	10 - 100%	10 - 100%	10 - 100%	10 - 100%
