Multi - Hole Electric Thermostatic Water Bath

Multi - Hole Electric Thermostatic Water Bath

Category： Heated Water Bath
Brand:Shu Yu
Model:HH·S
Application:For use in colleges and universities, industrial and mining enterprises, scientific research institutions, etc. for precision constant temperature and auxiliary heating.
INQUIRY EMAIL

Description

For colleges and universities, industrial and mining enterprises, scientific research units, etc., for precise constant temperature and auxiliary heating purposes.

Features
●Adopts an integrally formed stamped stainless steel inner tank with a four - corner arc design, facilitating the cleaning of the inner tank.

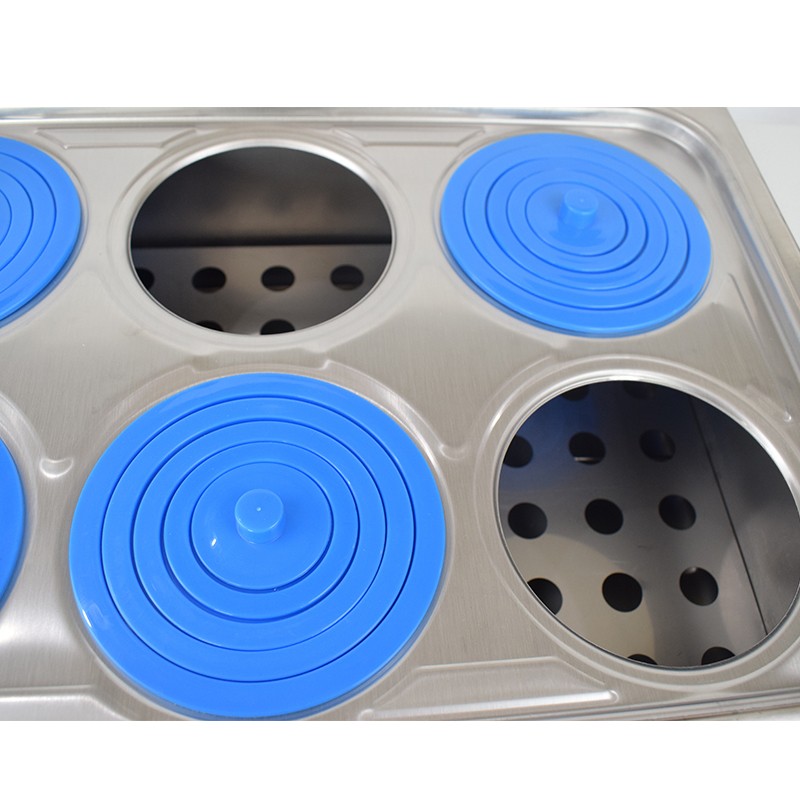

●The beaker holes can be arbitrarily changed in size. The hole cover is made of silicone material, with good anti - scald effect, and can better protect the glass beaker.
●Microcomputer intelligent temperature controller, with functions of setting, dual - digital display of measured temperature and P.I.D. self - tuning, with accurate and reliable temperature control.
●The double - row 8 - hole type is equipped with a low - water level alarm function.

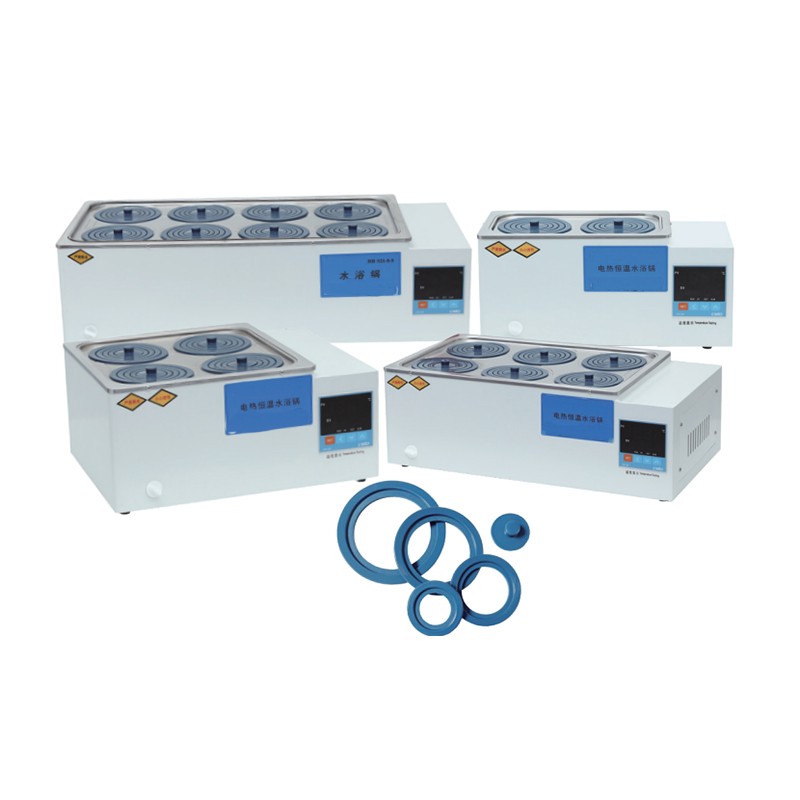

●The inner diameter of the stainless steel cover hole of the water bath is 125mm. The silicone cover is four - rings - and - one - cover, and the inner diameters of each ring are 97mm, 77mm, 59mm and 38mm respectively.

parameters

Serial No.	Item	Technical parameters
1	Product Model	HH•S11-2-S	HH•S21-4-S	HH•S21-6-S	HH•S21-8-S
2	Heating Method	Closed stainless steel electric heater	Closed stainless steel electric heater	Closed stainless steel electric heater	Closed stainless steel electric heater
3	Temperature Control Range	Room temperature +5℃ - 100℃	Room temperature +5℃ - 100℃	Room temperature +5℃ - 100℃	Room temperature +5℃ - 100℃
4	Temperature Resolution	0.1℃	0.1℃	0.1℃	0.1℃
5	Constant Temperature Fluctuation	±0.5℃	±0.5℃	±0.5℃	±0.5℃
6	Working Time	1 - 9999 minutes (timed or continuous)	1 - 9999 minutes (timed or continuous)	1 - 9999 minutes (timed or continuous)	1 - 9999 minutes (timed or continuous)
7	Power	600W	800W	1200W	1800W
8	Working Power Supply	AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
9	Chamber Size (mm)	305×160×140	305×305×140	470×305×140	620×300×140
10	Overall Dimensions (mm)	450×200×220	450×345×220	620×345×220	780×345×220
