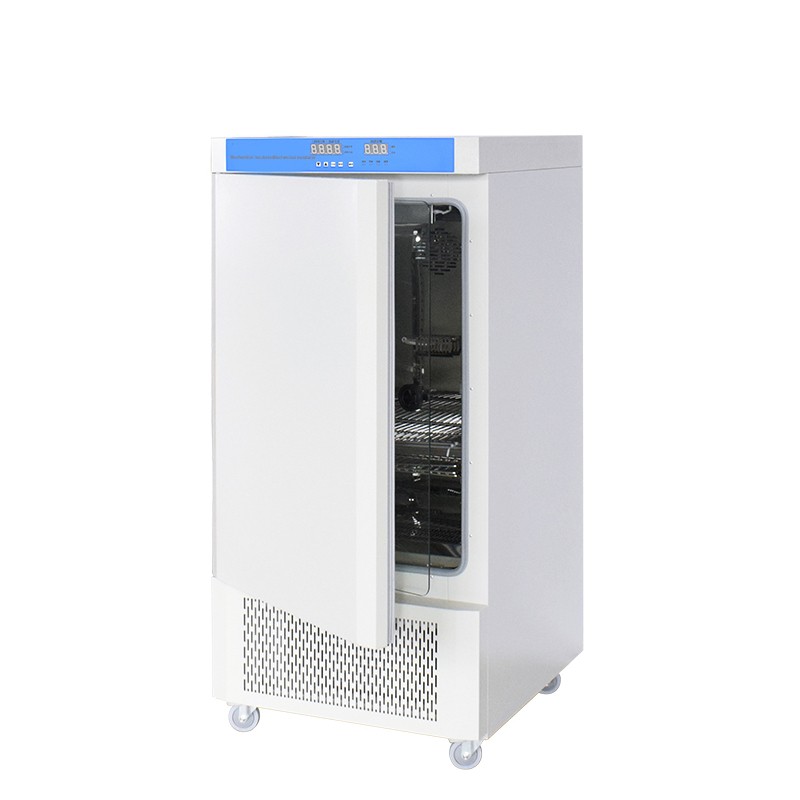

Biochemical Incubator

Category： Thermostatic Chamber
Brand:Shu Yu
Model：SPX-II
Application：This product is widely used in scientific research sectors such as medical care, drug inspection, health and epidemic prevention, and environmental protection. It is a constant - temperatu
INQUIRY EMAIL

Description
This product is widely used in scientific research sectors such as medical care, drug inspection, health and epidemic prevention, and environmental protection. It is a constant - temperature equipment for the cultivation and protection of cells, molds, microorganisms, as well as experiments like plant cultivation and seed breeding.

Features
●The inner tank is made of high - quality mirror - finished stainless steel, featuring corrosion resistance, acid resistance, easy cleaning, and no rusting.
●Microcomputer intelligent temperature controller, with PID control, ensuring stable temperature control and high precision. It has a 7 - digit LED high - brightness digital display, which is intuitive and clear, and has good control ability and anti - interference ability. Double temperature insurance device: The temperature controller has automatic tracking and over - temperature alarm functions; once over - temperature occurs, the heating system will be cut off immediately. Meanwhile, a temperature insurance device is installed in the working chamber to ensure the safety of the cultures inside.
●Double - layer door structure: After opening the outer door, the experiment situation in the working chamber can be observed through the inner door made of high - strength tempered glass, without affecting the temperature.
●The working chamber is equipped with daylight - like lighting; BOD socket (for 150L and above); the shelf in the working chamber can be adjusted in height freely.
●Working time setting range: 1 minute - 99 hours 59 minutes.
●Independent over - temperature alarm system, which will automatically interrupt immediately when the temperature exceeds the limit, ensuring the smooth progress of the experiment (optional).
●It can be equipped with a printer or an RS - 485 interface to connect to a computer for recording the changes of experimental parameters (optional).

parameters

Serial No.	Item	Technical Parameters - SPX-80BSH-II	Technical Parameters - SPX-150BSH-II	Technical Parameters - SPX-250BSH-II	Technical Parameters - SPX-300BSH-II
1	Product Model	SPX-80BSH-II	SPX-150BSH-II	SPX-250BSH-II	SPX-300BSH-II
2	Volume	80L	150L	250L	300L
3	Heating/Refrigeration Method	Stainless steel electric heater/Fully-enclosed CFC-free compressor
4	Temperature Control Range	0°C - 60°C
5	Temperature Resolution	0.1°C
6	Temperature Fluctuation	±0.5°C (Heating operation state) ±1.0°C (Refrigeration operation state)
7	Number of Shelves	2 pieces
8	Refrigerant	R134a (CFC-free and environment-friendly type)
9	Working Time	1 minute - 99 hours 59 minutes or continuous
10	Power	300W	400W	500W	700W
11	Working Power Supply	AC 220V 50Hz
12	Working Chamber Dimensions (mm)	440x320x520	480x390x780	570x500x850	570x540x950
13	Overall Dimensions (mm)	570x545x1120	610x625x1435	700x715x1500	700x735x1600

Optional Accessories
●Intelligent program controller
●Independent over - temperature controller
●Embedded printer
●LCD display instrument
●RS - 485 communication interface and software
●Side test hole of the cabinet
Remarks
Performance parameters are tested under no - load conditions: ambient temperature 20°C, ambient humidity 50% RH.
