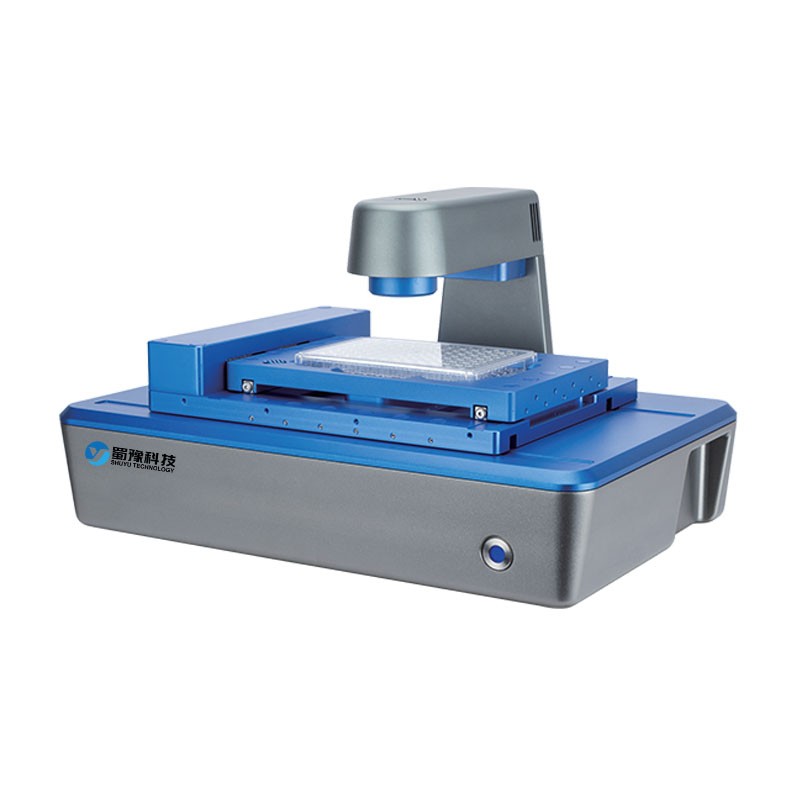

Live Cell Scanning Analyzer

Category： Live Cell Imaging System
Brand:Shu Yu
Model：MCS31
Application:Agricultural Science, Cell Industry, Immunology, Neuroscience, Drug R&D, Oncology Research, Regenerative Medicine, Stem Cell Applications, Aquaculture
INQUIRY EMAIL

Description
The live-cell imaging system is specially designed for cell culture, routine cell inspection and basic cell analysis. It can be placed inside a cell incubator, as well as on a Biosafety cabinet or a standard laboratory bench.
This system enables continuous observation of the morphology, viability and fluorescence of cells cultured in an incubator. It avoids the environmental impacts caused by repeatedly taking cells out of and putting them back into the incubator for observation during the cell culture process—impacts that would otherwise affect experimental results. This feature greatly facilitates cell research.
Application Fields
Agricultural Science, Cell Industry, Immunology, Neuroscience, Drug R&D, Oncology Research, Regenerative Medicine, Stem Cell Applications, Aquaculture

Features
1.Bright field difference switching
2.Three-color fluorescent electric switching
3.Body sealing, waterproof and corrosion-resistant
4.Adapted to a variety of vehicles
5.Low-phototoxic light source
6.Electric switch between dual objective lenses
7.Electric XY axis displacement platform Electric Z axis focus

parameters

Category	Details
Bright - field Observation	Transmitted phase - contrast illumination, working distance 55mm50,000 - hour long lifespan, 625nm low - toxicity LED light source
Fluorescence ObservationFluorescence Band Customizable	·Blue (B): 472 - 495nm·Green (G): 543 - 560nm·Ultraviolet (UV): 393 - 416nm
Objective Lens	·Optional dual objective lenses among 4×/10×/20× ·Motorized objective lens switching
Stage	Motorized XY moving platform with a stroke of 115*77mm; repeat positioning accuracy ≤3μm
Z - axis	Motorized auto - focusing mechanism
Camera	High - speed and high - sensitivity camera, 500W, 2/3 inch, 40fps
Software	Supports remote control, including light control, camera control, photographing, video recording, and time - lapse photography
Analysis Functions	Cell counting, cell confluency, scratch assay, transfection efficiency, activity analysis
Scanning Functions	·Multi - well scanning: Customize XY array for multi - point photography, bright - field and fluorescence multi - channel overlay·Region scanning: Set rectangular region for panoramic scanning and stitching, bright - field and fluorescence multi - channel overlay
Data Transmission/Power Supply	USB data cable + DC power cable
Working Environment	5 - 40℃, 20 - 95% RH
Dimensions (Length/Width/Height)	252 × 377 × 208 (Unit: mm)
