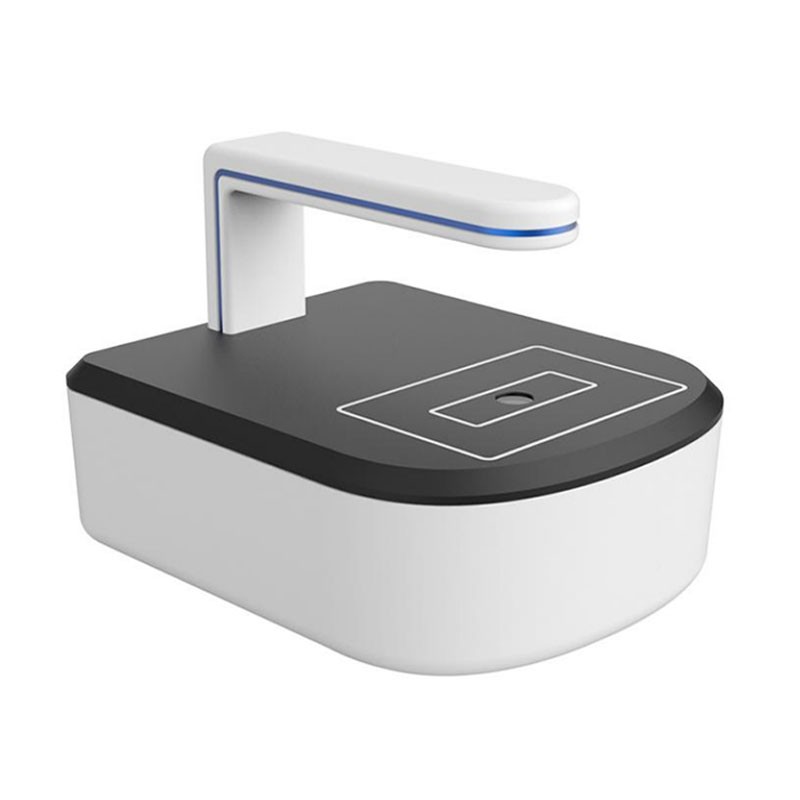

Live Cell Imager
- Category： Live Cell Imaging System
- Brand:Shu Yu
- Model：MCS21/MCS22/MCS11
- Application:Agricultural Science, Cell Industry, Immunology, Neuroscience, Drug R&D, Oncology Research, Regenerative Medicine, Stem Cell Applications, Aquaculture
Description
Through automated timed observation, analysis and reporting, you can remotely monitor the cell culture progress without entering the clean room or opening the incubator, greatly improving work efficiency and avoiding the risk of interfering with growth and contaminating samples.
Intelligent functions:
Intelligent live cell imaging monitoring system greatly simplifies your workflow. Through automated timed observation, analysis and reporting, you can remotely monitor the progress of cell culture without entering the clean room or opening the incubator, thereby improving work efficiency and reducing interference and contamination risks.

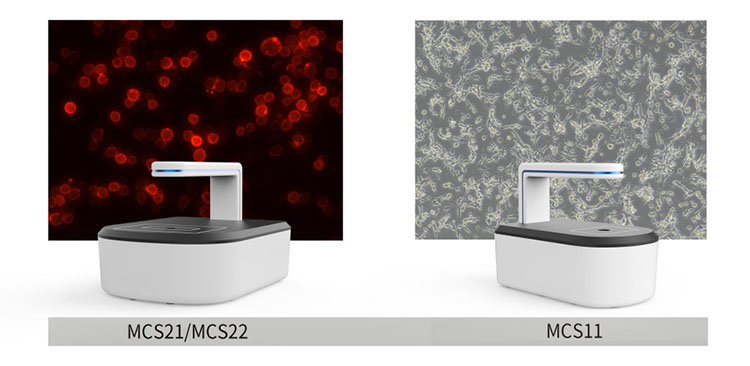

Fluorescence standard version MCS21/22:
It has bright field, phase contrast and fluorescence imaging, and comes standard with two blue and green fluorescence channels, suitable for monitoring cell transfection and cell activity, etc.
The bright field basic version MCS11:
625nm red LED light source phase contrast observation can reduce cell photobleaching and is suitable for cell observation, confluence analysis, scratch healing and other scenarios.
Application Fields
Agricultural Science, Cell Industry, Immunology, Neuroscience, Drug R&D, Oncology Research, Regenerative Medicine, Stem Cell Applications, Aquaculture
Features
The MCS11/MCS21/MCS22 live cell imaging monitoring system greatly simplifies your workflow. Through automated timed observation, analysis and reporting, you can remotely monitor the cell culture progress without entering the ultra-clean room and opening the incubator, greatly improving work efficiency and avoiding the risk of interfering with growth and contaminating samples.
parameters
|
|
MCS11 |
MCS21 |
MCS22 |
|
Bright - field Observation |
Transmitted phase - contrast illumination, working distance 70mmLong - life low - phototoxicity LED light source: 625nm |
Transmitted phase - contrast illumination, working distance 70mmLong - life low - phototoxicity LED light source: 625nm |
Transmitted phase - contrast illumination, working distance 70mmLong - life low - phototoxicity LED light source: 625nm |
|
Fluorescence Observation |
None |
Blue (B): 475/30nmGreen (G): 560/40nmThree - color fluorescence optional, wavelength customizable |
Blue (B): 475/30nmGreen (G): 560/40nmThree - color fluorescence optional, wavelength customizable |
|
Objective Lens |
Single objective lens: 4X/10X/20X optional |
Single objective lens: 4X/10X/20X optional |
Dual objective lenses: motorized switching4X/10X/20X optional |
|
Platform |
Flat stage, manual movement |
Flat stage, manual movement |
Flat stage, manual movement |
|
Body Dimensions |
Width*Length*Height: 143mm*232mm*182mm |
Width*Length*Height: 214mm*260mm*182mm |
Width*Length*Height: 214mm*260mm*182mm |
|
Z - axis |
Motorized focusing, auto - focusing |
Motorized focusing, auto - focusing |
Motorized focusing, auto - focusing |
|
Camera |
5 - megapixel bright - field camera |
High - speed and high - sensitivity fluorescence camera, 5 megapixels;Chip size: 2/3 inch; Frame rate: 40fps |
High - speed and high - sensitivity fluorescence camera, 5 megapixels;Chip size: 2/3 inch; Frame rate: 40fps |
|
Software |

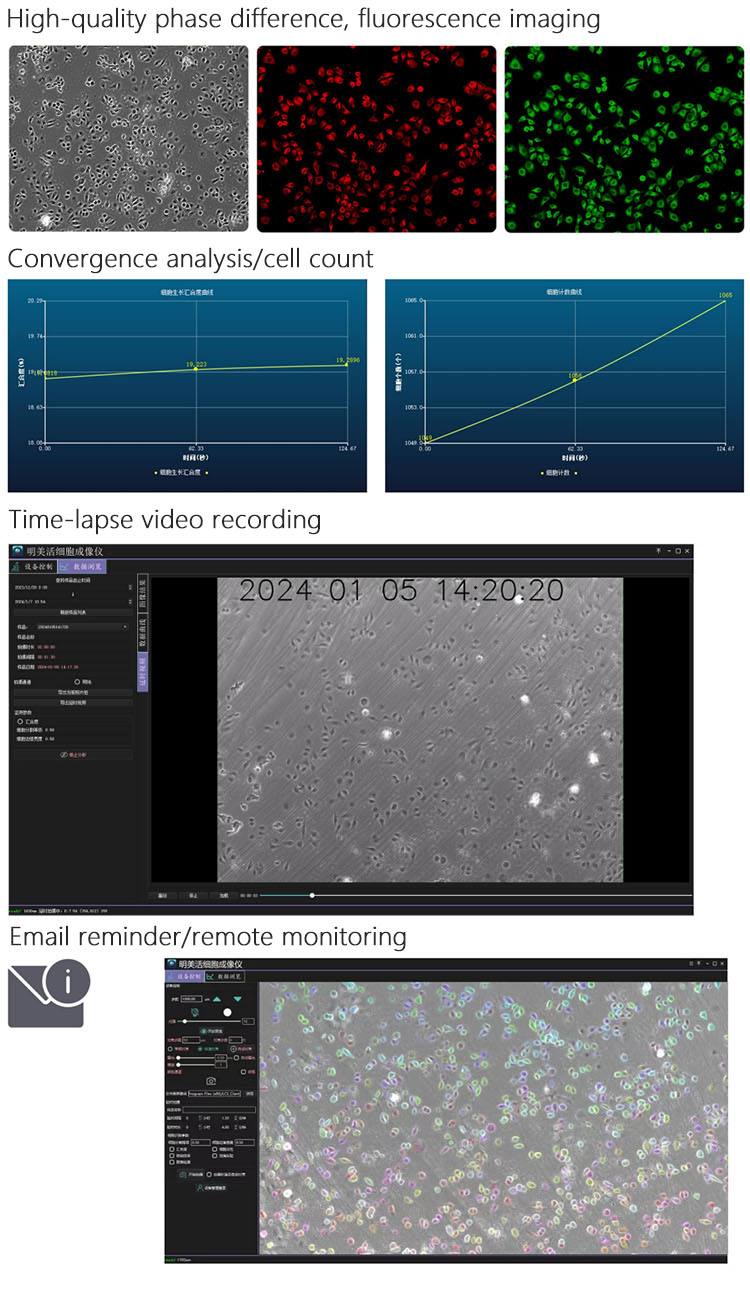

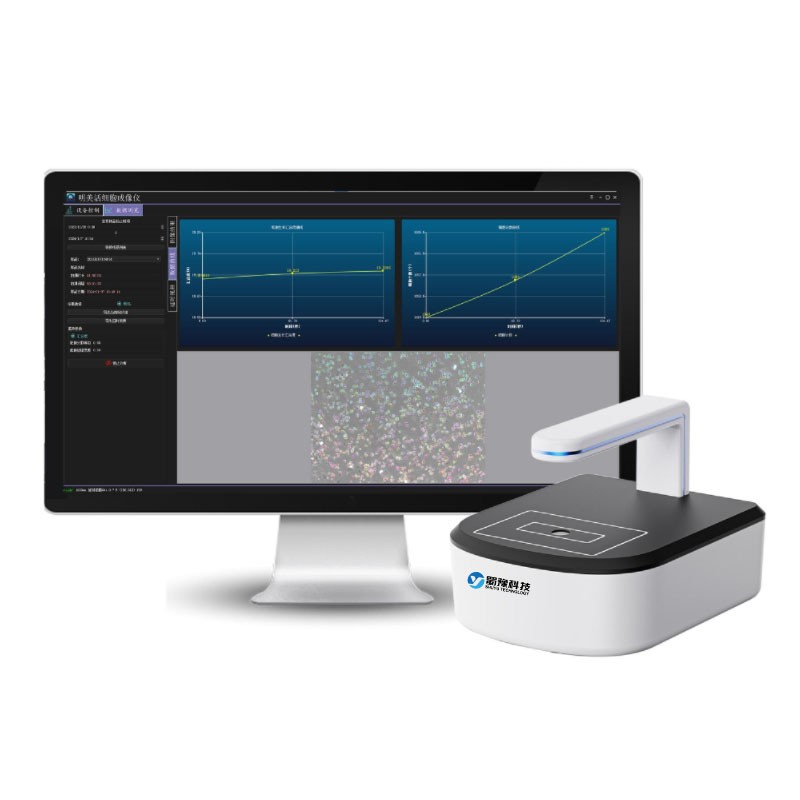

Adopts C/S architecture, supports remote control, including light control, camera control, photographing, video recording, time - lapse photography, cell counting,cell confluency, scratch assay; external network control, email alert |
Adopts C/S architecture, supports remote control, including light control, camera control, photographing, video recording, time - lapse photography, cell counting,cell confluency, scratch assay; external network control, email alert |
Adopts C/S architecture, supports remote control, including light control, camera control, photographing, video recording, time - lapse photography, cell counting,cell confluency, scratch assay; external network control, email alert |
|
Data Transmission/Power Supply |
USB data cable + DC power cable |
USB data cable + DC power cable |
USB data cable + DC power cable |
|
Working Environment |
5 - 42℃, 5 - 95%RH |
5 - 42℃, 5 - 95%RH |
5 - 42℃, 5 - 95%RH |
