Seed Aged Incubator

Category： Thermostatic Chamber
Brand:Shu Yu

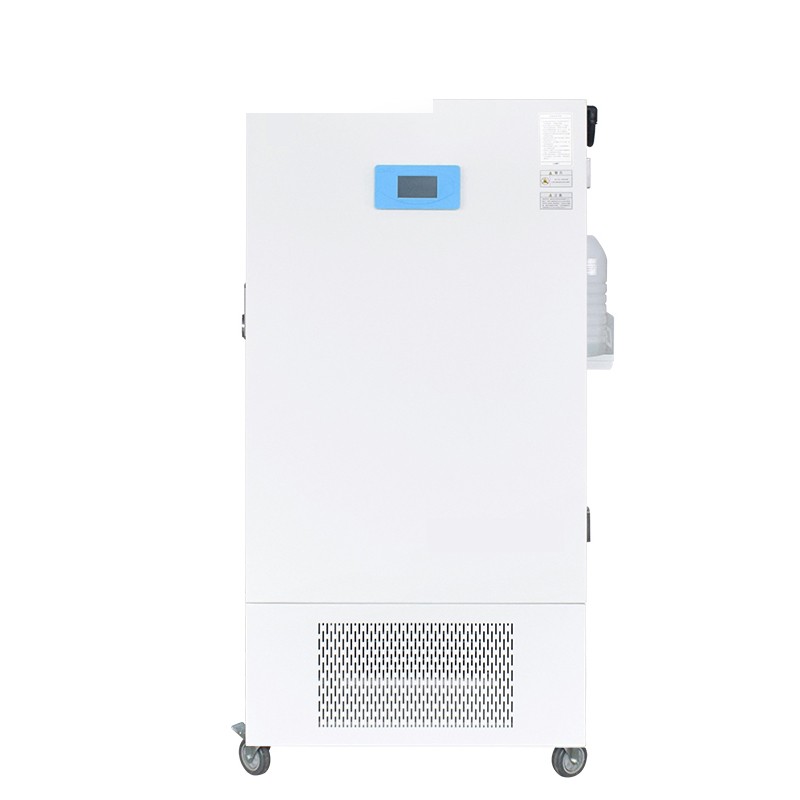

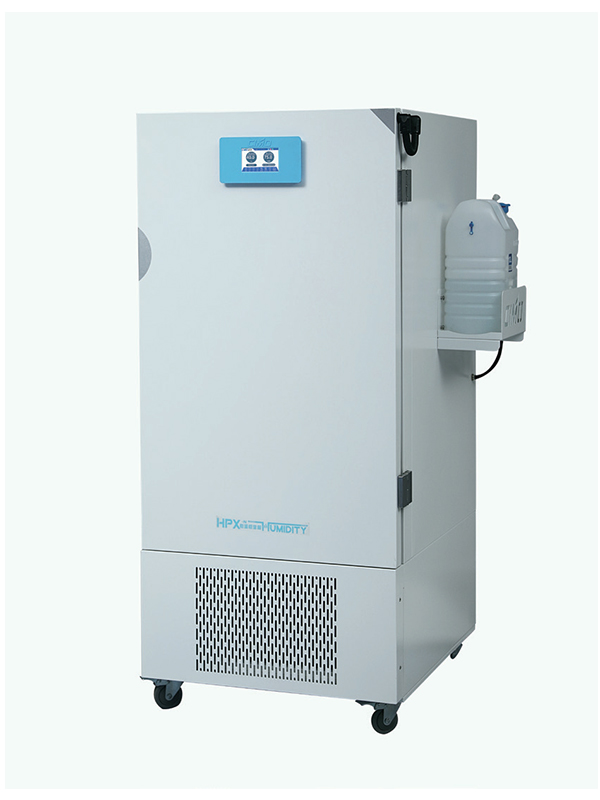

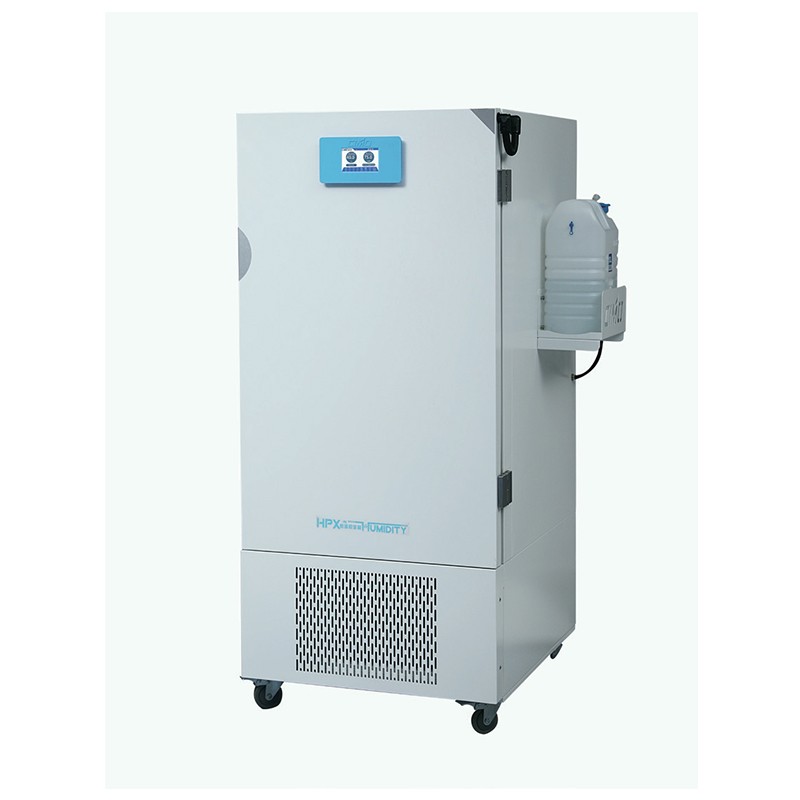

Name：Seed Aged Incubator
Application：Widely used in pharmaceutical industry, food industry, cosmetic industry, microbial culture, biotechnology and other industries, the performance of raw materials, life, packaging and other
INQUIRY EMAIL

Description

This product is a device with functions of cold and hot temperature maintenance and constant temperature control. It can provide a constant temperature and humidity environment for conducting various stability tests. It is widely applied in industries such as the pharmaceutical industry, food industry, cosmetics industry, microbial culture, and biotechnology to test the performance, service life, packaging, etc. of raw materials.

Features

1.This product has a novel and attractive appearance. The working chamber is made of high - quality 304 stainless steel, with rounded corners and arc - shaped design, easy to clean; The shell is made of high - quality cold - rolled steel plate, with surface electrostatic spraying treatment, strong corrosion resistance; Double - layer door structure, the inner door is a high - quality tempered glass door, which can directly observe the test situation in the working chamber without affecting the internal temperature and humidity; Unique air duct design ensures uniform and stable temperature and humidity inside the working chamber; The stainless steel shelf can be adjusted freely in height.

2.True - color LCD touch screen, real - time display of temperature, humidity and time, with a man - machine operation interface, simple operation and more humanized; Instrument historical record data can be viewed.

3.Adopt an intelligent operating system, fuzzy PID intelligent control, the operation of set value/program segments can be freely set. Equipped with a large - capacity memory, it can store 250,000 pieces of data records and 16,000 pieces of event records.

4.It has the function of switching between Chinese and English menus.

5.User authority hierarchical management: The administrator can create up to 5 sub - users and assign different authorities to realize multi - level management.

6.It can automatically record the operation data, operation logs and alarm logs of the equipment, and can export the original files or unalterable PDF files through the instrument USB interface.

7.Screen password locking function can prevent non - experimental personnel from operating at will.

8.Built - in high - brightness LED lighting and ultraviolet sterilization lamp (for MJ - N series); The box side is equipped with a test hole (50mm), which is convenient for data verification.

9.Adopt imported high - precision temperature and humidity sensor, accurate and reliable, no maintenance required for long - term use.

10.Variable - frequency refrigeration system, energy - saving and water - saving, small temperature and humidity fluctuation, fast recovery after door opening, and ensure long - term frost - free operation of the equipment under extreme conditions; Adopt international well - known brand compressors and environment - friendly fluorine - free refrigerants. Power - on recovery mode options: stop, restart operation, continue operation.

11.An embedded micro printer can be equipped: print temperature and humidity data in real time, and the printing time interval can be set by itself. (Optional)

12.4G intelligent IoT gateway or WiFi intelligent IoT gateway, through the WeChat applet, 7*24 - hour remote intelligent monitoring can be realized. Alarm push can be carried out, equipment operation status, historical data and curve query can be monitored, and PDF files can be exported. (Optional)

13.SMS alarm module: GPRS mobile phone SMS alarm (sent to the designated mobile phone through communication software to ensure the safety of the test process). (Optional)

14.3Q verification service can be provided.

Parameters

Serial No.	Item	Technical Parameters
1	Model	HPX-160N MJ-160N	HPX-250N MJ-250N	HPX-350N MJ-350N	HPX-510N MJ-510N
2	Volume	160L	250L	350L	510L
3	Control Mode/Program	PID fuzzy logic control, set value/program control for fuzzy operation
4	Temperature Control Range	0°C - 70°C / When humidifying: 10°C - 70°C ( -20°C - 100°C can be customized )
5	Humidity Control Range	15%RH - 98%RH
6	Resolution	0.1°C
7	Temperature Fluctuation	≤±0.3°C
8	Temperature Uniformity	≤±0.8°C
9	Humidity Fluctuation	≤±1.5%RH
10	Total Heating and Humidifying Power	1600W	1950W	2350W	2750W
11	Compressor Power	250W	280W	315W	385W
12	Power Supply Voltage	AC 220V 50/60Hz
13	Number of Stainless Steel Shelves	Standard configuration: 3 layers (can be increased )
14	Volume of External Water Tank	12L
15	Overall Dimensions (mm)	640×745×1470	700×810×1600	750×910×1660	850×990×1810
16	Working Chamber Dimensions (mm)	505×420×785	565×485×920	615×585×980	715×665×1070

Note: The parameters are the test results after the equipment has been operating stably for 2 hours under the conditions of an ambient temperature of 20 - 25°C and a voltage fluctuation of < 10%. Our company reserves the right to change the technical specifications at any time.

Safety and protection functions
1.Automatic detection and display of equipment faults
2.Automatic start, automatic stop, power - on recovery, and timed operation
3.Independent over - temperature protector for the working chamber
4.Automatic water replenishment for the internal humidification system, water - lack alarm and protection
5.Audible and visual alarm and protection for upper and lower limit temperature and humidity deviations
6.Sensor fault alarm
7.Compressor overload protection
8.Door - opening alarm
