Thermostatic Incubator

Category： Thermostatic Chamber
Brand:Shu Yu
Name：Thermostatic Incubator
Application:This product is widely used in scientific research and industrial production departments such as medical and health, pharmaceutical industry, biochemistry, and agricultural science for ba
INQUIRY EMAIL

Description

This product is widely used in scientific research and industrial production departments such as medical and health, pharmaceutical industry, biochemistry, and agricultural
science for bacterial culture, fermentation, and other constant temperature tests.

Features

1.Double - door structure: When the box door is opened, the inner door is made of high - quality insulated tempered glass, which is convenient for observing the situation
inside the working chamber without affecting the internal temperature.

2.Dual temperature safety devices: The temperature controller has an automatic tracking and over - temperature alarm device; once over

ures in the working chamber.

3.Adopts a microcomputer - intelligent temperature control instrument with P.I.D. control, which has a self - tuning function and is displayed by high - brightness LED nixie tubes,
being clear and intuitive. After setting the temperature, the instrument automatically judges the power required for heating and displays the heating status, without the problem
of temperature overshoot, and the temperature control is accurate and stable. It has the function of automatic recovery and memory after power failure.

4.The inner tank is made of high - quality mirror stainless steel material, with a rounded corner design, featuring corrosion resistance, acid resistance, and being easy to clean.

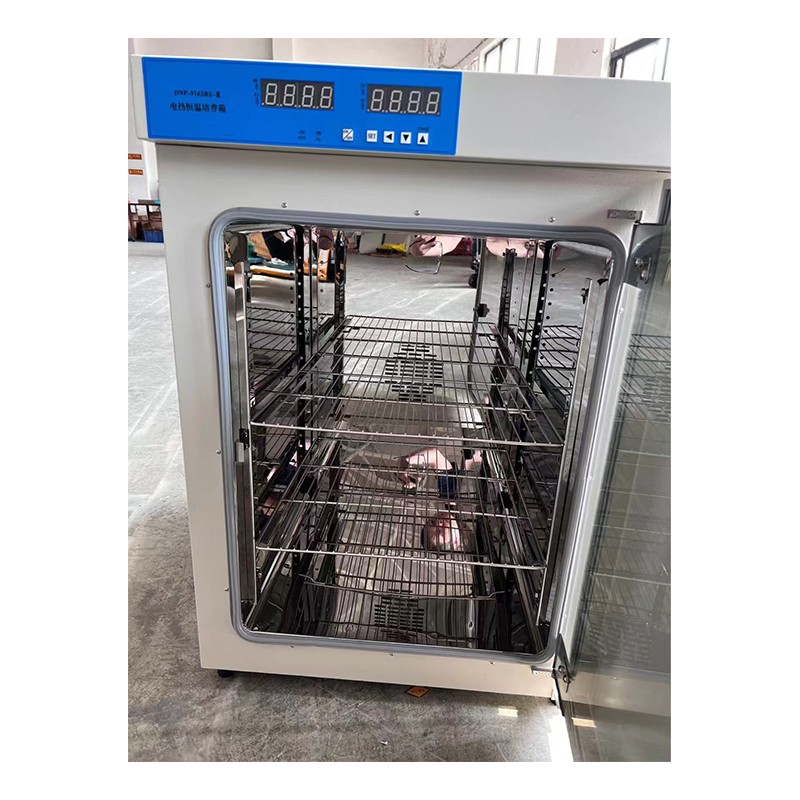

5.The shelf in the working chamber can be adjusted to any height according to user needs.

6.Working mode: Continuous or 1 - 9999 minutes timing function.

7.Independent over - temperature alarm system, which will automatically interrupt immediately when the temperature exceeds the limit, ensuring the smooth progress of the
experiment (optional).

8.The working chamber can be equipped with an ultraviolet sterilization device or an illuminating lamp (optional).

Parameters

Serial No.	Item	Technical Parameters
1	Product Model	DNP-9052BS-Ⅲ	DNP-9082BS-Ⅲ	DNP-9162BS-Ⅲ	DNP-9272BS-Ⅲ
2	Volume	50L	80L	160L	270L
3	Heating Method	Electric heating wire/Three - dimensional heating
4	Temperature Control Range	Room temperature +5°C - 65°C
5	Temperature Resolution	0.1°C
6	Temperature Fluctuation	±0.2°C
7	Temperature Uniformity	±0.5°C
8	Number of Shelves	2 pieces
9	Working Time	1 - 9999 minutes or continuous operation
10	Power	200W	200W	440W	440W
11	Working Power Supply	AC 220V 50Hz
12	Size of Working Chamber (mm)	350×350×410	400×400×500	500×500×650	600×600×750
13	Overall Dimensions (mm)	515×515×700	550×570×790	650×670×935	765×770×1035

Optional Accessories：
1.Independent temperature limit controller
2.LCD display instrument
3.Sterilization or lighting device
4.Side test hole of the box body
5.Power socket inside the box

Remarks：
1.The performance parameters are tested under no - load conditions: ambient temperature 25°C, ambient humidity 50% RH.
