Research grade biological microscope ML51-N

Research grade biological microscope ML51-N

Category： Biological microscopes
Brand:Shu Yu
ML51-N is a scientific research level biologicla microscope similar to Olympus BX43. it is popular to professional microscope users has requirement of high quality imaging, widely used for clinical, d
INQUIRY EMAIL

Description

The biological microscope ML51-N uses infinity independent achromatic optics to observe samples with true clarity and bright colors. The standard
plan-field semi-apochromatic objective lens provides a high-quality and high-performance imaging solution for digital imaging. It is widely used in medical

testing, disease prevention, biological research, teaching and scientific research and other fields.

Feature

1.Wide field of view eyepiece in high eyepoint:
The large field of view eyepiece can support up to 23mm field of view in bright field. The flat and bright field of view greatly reduces fatigue and
improves work efficiency. The trinocular observation head supports simultaneous imaging of the eyepiece and camera.

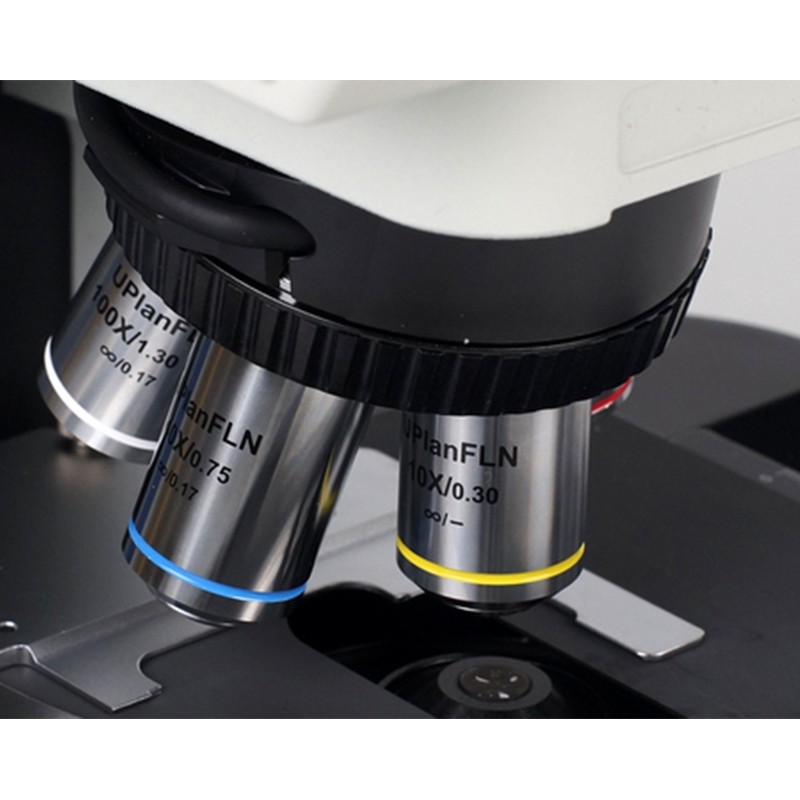

2.Semi-apochromatic objectives:
The standard semi-apochromatic objective lens has high numerical aperture and higher light transmittance. In addition to better resolution and
clarity in high-magnification scenes such as 100X, it can also achieve better results in special observations such as fluorescence.

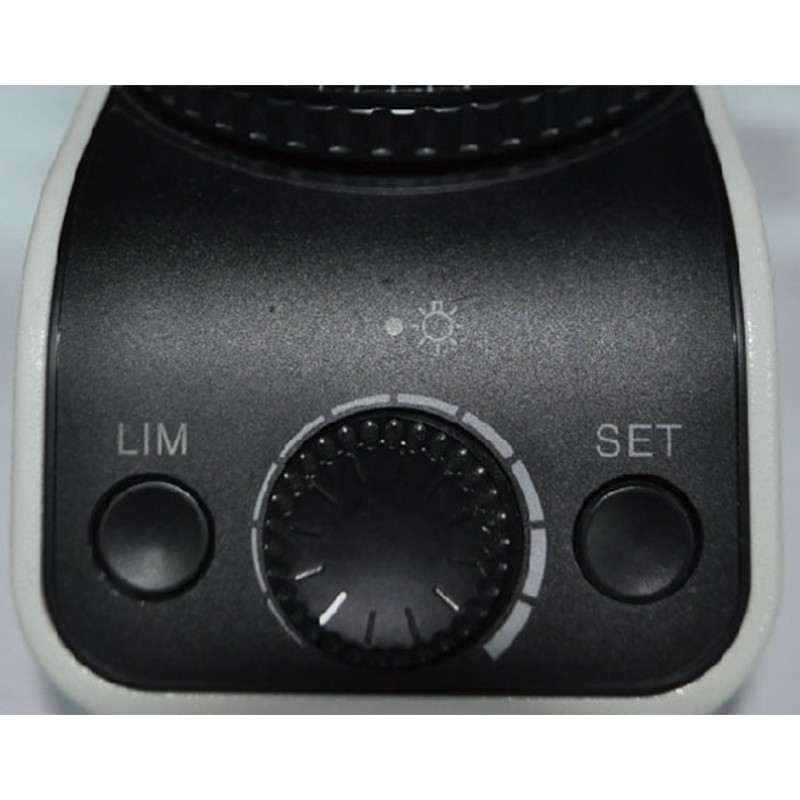

3.Light intensity manager:
Built-in coded nosepiece and light intensity manager, the light intensity automatically adjusts as the objective lens switches, ensuring consistent

light intensity at different magnifications, improving work efficiency and reducing eye fatigue.

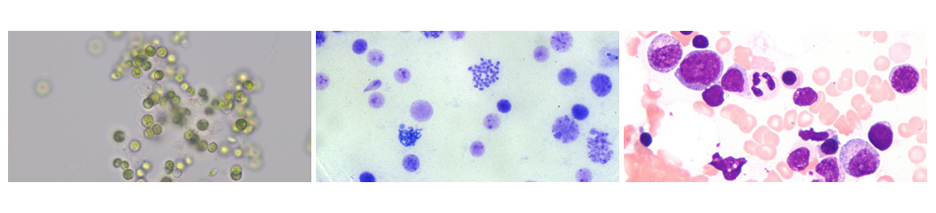

Sample images

Specifications

Parts	Specification	Standard	Optional
Eyepiece	Wide field eyepiece 10X, FN25, diopter is adjustable	•
	Wide field eyepiece 10X, FN23		•
Observation tube	Hinged type trinocular observation tube, high eyepoint, 30° inclination, Pupillary distance adjustment 50 - 75mm	•
	Trinocular split ratio 100:0 or 20:80 or 0:100		•
Nosepiece	Quintuple nosepiece, ball bearing with anti fungus device	•
	Coded quintuple nosepiece with prism slot		•
	Interchangeable reversed six hole nosepiece		•
Objectives	Plan semi - apochromatic objective 4X/10X/40X/100X	•
	Plan achromatic phase contrast objective 10X/20X/40X/100X PH		•
	Plan Achromatic DIC Objective		•
Focus system	25 mm stage stroke with coarse adjustment limit stopper, torque adjustment for coarse adjustment knobs, stage mounting position variable, minimum adjustment gradations: 1 μm	•
