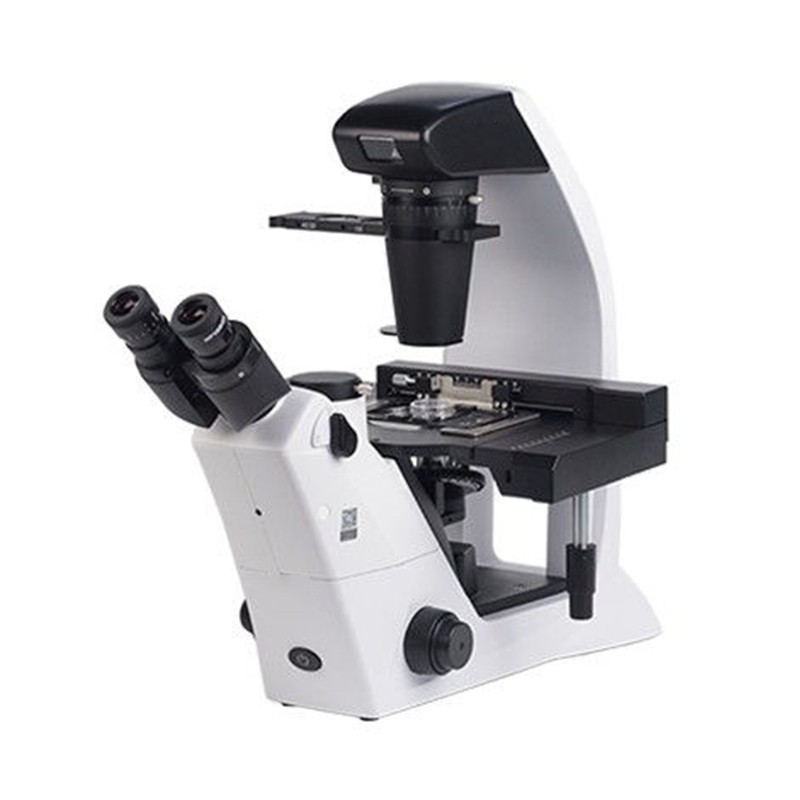

Research-grade inverted biological microscope MIX60

Research-grade inverted biological microscope MIX60

Category： Biological microscopes
Brand:Shu Yu
The inverted microscope MIX60 is a research-grade biological microscope with high imaging performance, intelligent use, clear observation details, flat image field without field curvature, ultra-long
INQUIRY EMAIL

Description

The inverted microscope MIX60 is a research-grade biological microscope with high imaging performance, function similar to Olympus CKX53.
Its intelligent use, clear observation details, flat image field without field curvature, ultra-long working distance condenser, supports bright field
and phase contrast observation, and can be upgraded to expand fluorescence observation; equipped with OLED digital display screen and voice
broadcast function can display light intensity and objective lens magnification in real time.

Feature

1.Digital intelligent module, more considerate design:
■ECO light-off function when people leave. The new sensor can be set to automatically turn off the light source after no one is using it for a certain
period of time, realizing the function of turning off the lights when people leave and turning on the lights when people come, saving power and
extending the life of the light source.

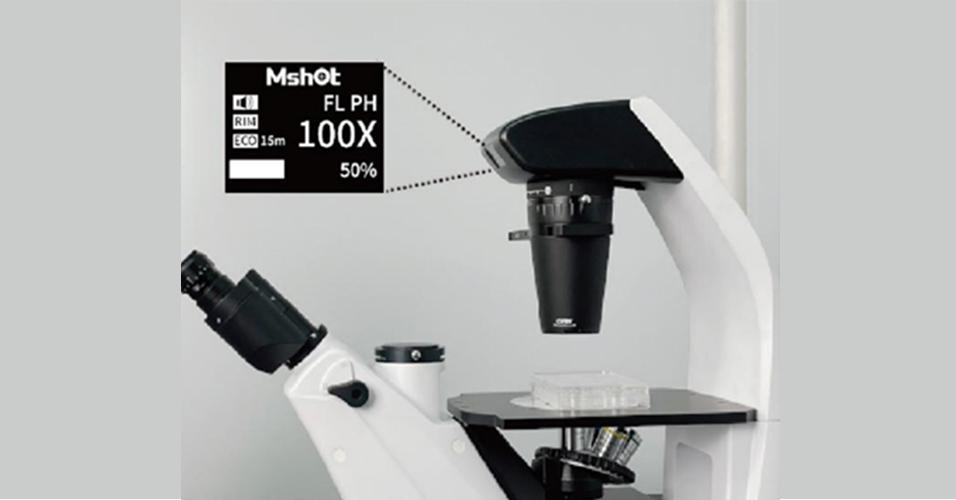

■Intuitive LED digital display screen The fuselage is equipped with an OLED screen, which intuitively displays the current objective lens magnification
and light intensity index. It can also perform voice broadcast to facilitate the selection of objective lens magnification.

2.Supports phase contrast observation at multiple magnifications:
The condenser is equipped with a push-pull switching phase contrast insert plate, which can be used with multiple phase contrast objectives to achieve
phase contrast observation at different magnifications, clearly showing the morphological details of living cell samples.

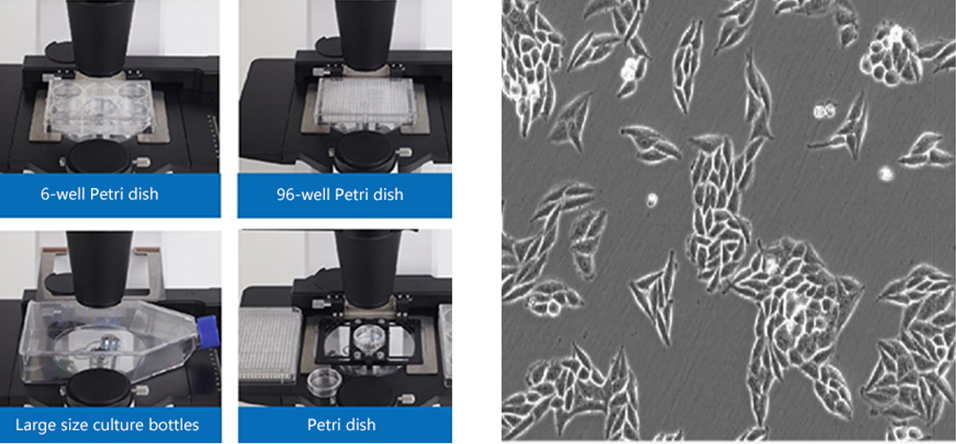

3.Flexible adaptation to different culture containers to meet diverse needs:

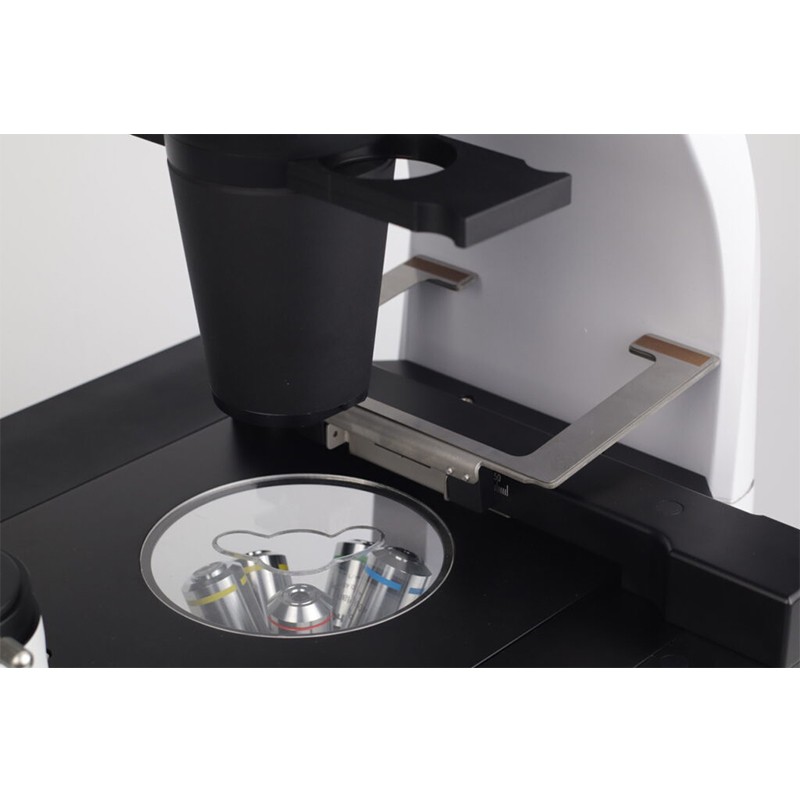

The universal sample holder can be adapted to common culture containers such as multi-well plates and culture bottles. With a reversible design, it can
also accommodate extra-large culture bottles and other containers; at the same time, the stage can be expanded to 351mm × 251mm.

Sample images

Specifications

Item	Specifications
Host	200mm infinity optical system, the body is equipped with ECO light - off function and can draw power
Eyepiece	WF10X/22 plan eyepiece, high eye point, adjustable diopter Centering telescope
Eyepiece tube	Inclination angle 45°, interpupillary distance 50 - 70mm, body split ratio = 100:0 or 0:100
Nosepiece	Quintuple nosepiece, ball bearing with anti - fungus device
Stage	Fixed stage size: 267.4mm×271.4mm XY stage moving ruler, mechanical movement, movement range: 110mm×75mm With stage expansion board
Universal sample holder	Match slides and different petri dish sizes
Drip board	Round transparent drip board: φ118mm
Condenser	Numerical aperture N.A.: 0.3, working distance WD: 72mm Compatible Objective Magnifications 4X, 10X, 20X, 40X, 60X Detachable condenser, container height ≥19cm can be placed on the stage
Phase ring plate	10X ring, 20X/40X ring
Focusing mechanism	Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm.
Transmitted illumination system	3W full spectrum white LED, brightness continuously adjustable The filter holder can be inserted into φ34mm color filters (blue, green, yellow, etc.) and is removable With aperture diaphragm, aperture blades, manual control switch
Digital display screen	Displays the current working status, including ECO, voice function, objective lens multiple and brightness, etc., and can perform voice broadcast of the current objective lens multiple.
Objective lens	Long working distance 4X plan objective (M) Long working distance Plan Phase Contrast Objectives 10XPH/20XPH/40XPH
