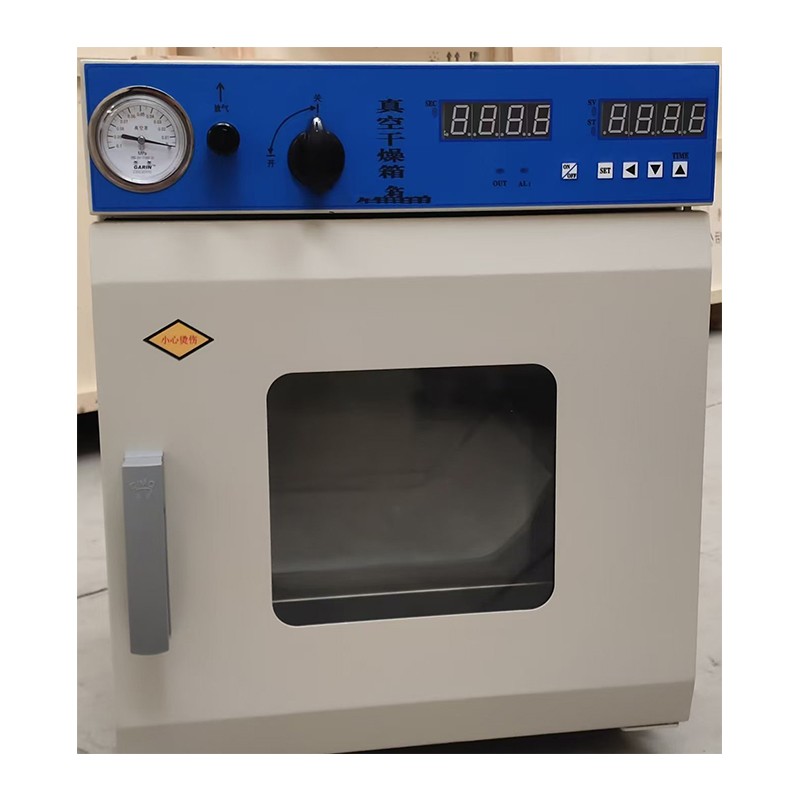

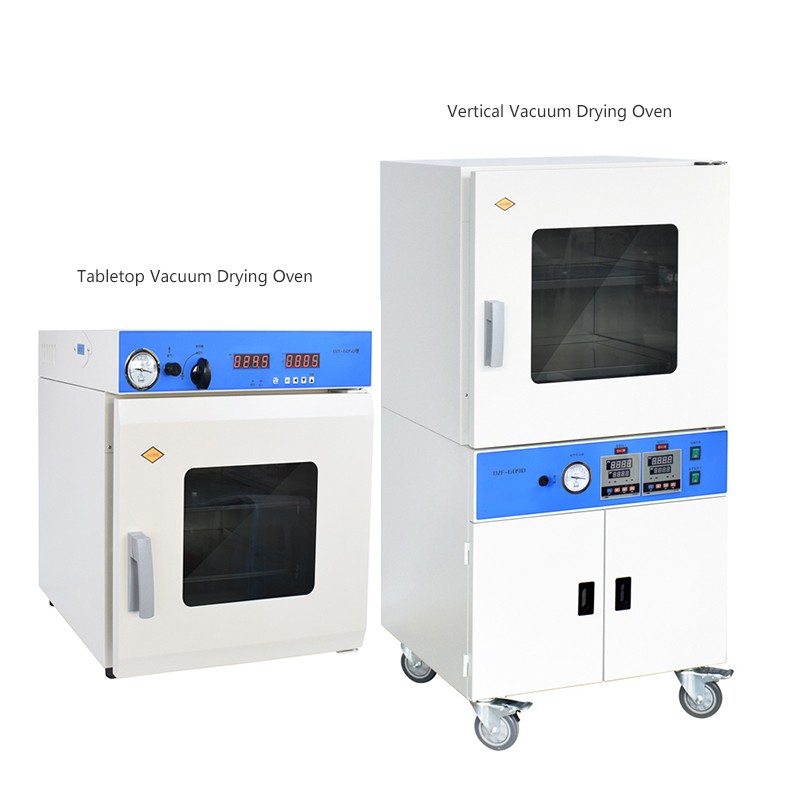

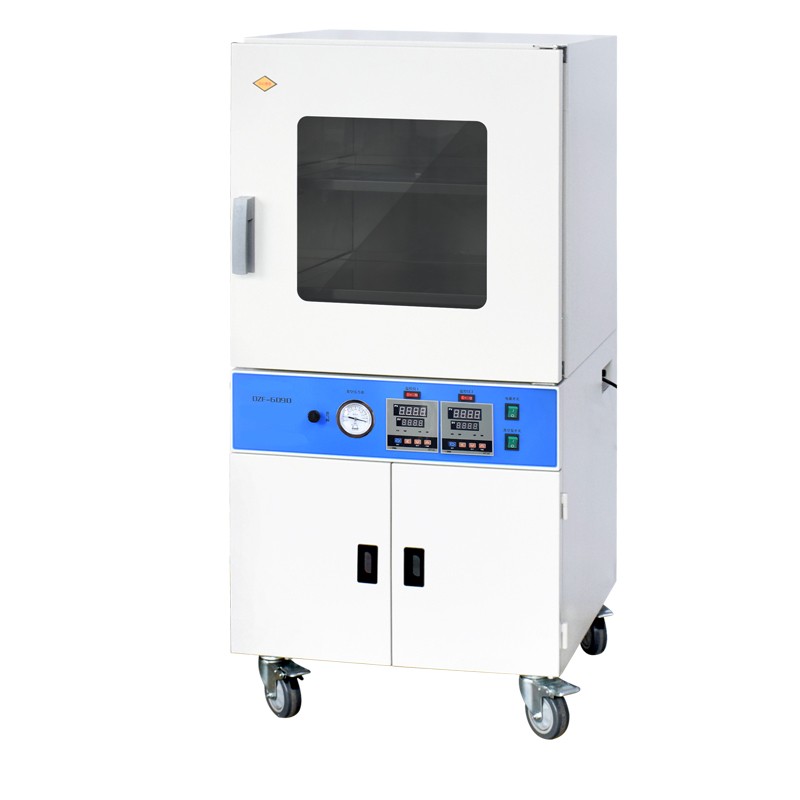

Vacuum Drying Oven

Category： Vacuum Drying Oven
Brand:Shu Yu
Name：Vacuum Drying Oven
Application：For industrial and mining enterprises, scientific research of colleges and universities, and various laboratories to conduct drying treatment of items under vacuum conditions.
INQUIRY EMAIL

Description

For industrial and mining enterprises, scientific research of colleges and universities, and various laboratories to conduct drying treatment of items under vacuum conditions.

There are the following advantages of heating and drying items under vacuum conditions:
1.Can reduce the drying temperature;
2.Avoid oxidation of some items during heating;
3.Prevent hot air from killing biological cells;
4.No dust breakage.

Features

1.The temperature control system adopts a microcomputer P.I.D. intelligent controller with nixie tube display. After setting the temperature, the instrument automatically controls the power required for heating and displays the heating status.The temperature control is accurate and stable. It has over-temperature sound and light alarms and automatically cuts off the power supply.

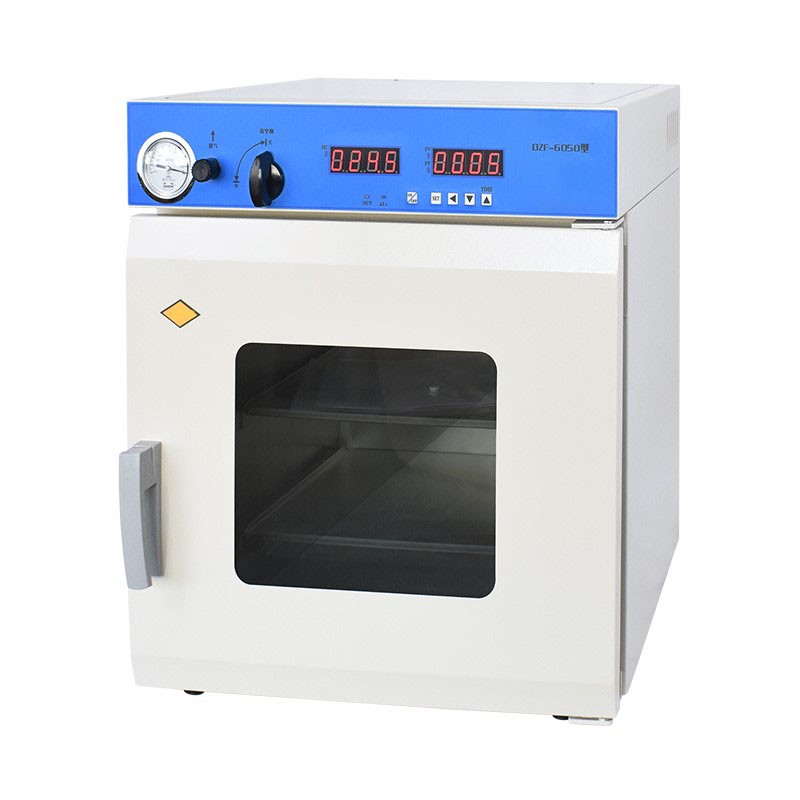

2.The operation panel is placed on the upper part of the box (6020, 6030, 6050), which is different from being arranged on the left side of the box, making the operation simple and convenient for observation;

3.The observation window uses double-layer glass. The sealing glass door is made of high-quality tempered glass with a thickness of more than 15mm, and the outer layer is 3mm anti-explosion glass;

4.The 6050 box door is equipped with a switch tightness adjustment device, and the mouth of the working chamber uses an integrally formed silicone sealing ring;

5.The inner tank is made of high-quality stainless steel material, featuring corrosion resistance, acid resistance, and easy cleaning.

6.There is very little energy loss. The heaters of 6210, 6090, 6030, and 6020 are all located on the shelf inside the box, which can greatly reduce heat loss.

Parameters

Serial No.	Item	Technical Parameters
1	Product Model	DZF-6020	DZF-6030	DZF-6050	DZF-6090	DZF-6210
2	Volume	24.75L	30.72L	52.97L	91.13L	215L
3	Heating Method	Stainless steel electric heater
4	Vacuum Degree	< 133pa
5	Temperature Control Range	Room temperature +10°C - 250°C
6	Temperature Resolution	0.1°C
7	Constant Temperature Fluctuation	±0.5°C
8	Working Time	1 - 9999 minutes for timing or continuous operation
9	Power	300W	400W	1400W	1350W	2050W
10	Working Power Supply	AC 220V 50Hz
11	Size of Working Chamber (mm)	300×300×275	320×320×300	415×370×345	450×450×450	560×640×600
12	Overall Dimensions (mm)	460×430×570	490×500×595	570×510×655	615×590×1270	725×730×1460

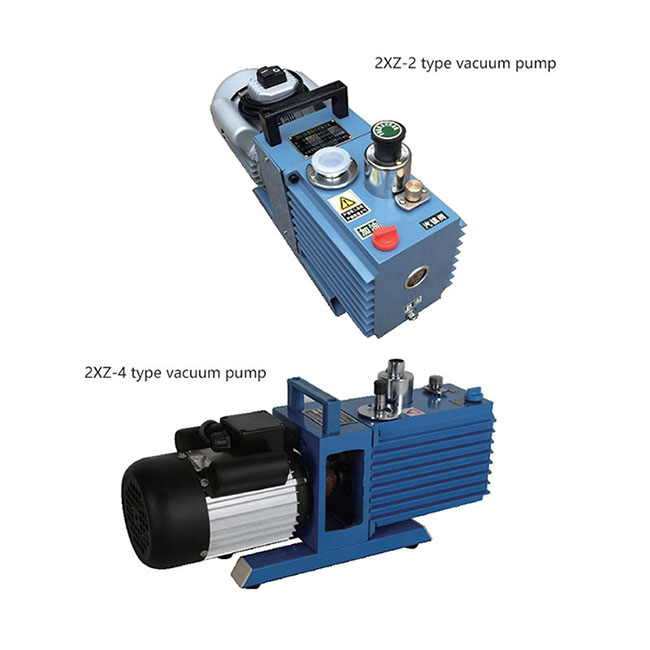

Optional Accessories：
1.2XZ-2 Vacuum Pump
2.2XZ-4 Vacuum Pump

Main Technical Parameters：
1.2XZ-2: Pumping speed 2L/S, rotation speed 1400r/min, power 370W, ultimate pressure 6×10-2Pa. External dimensions: Length 480 × Width 140 × Height 250mm.
2.2XZ-4: Pumping speed 4L/S, rotation speed 1400r/min, power 550W, ultimate vacuum 6×10-2Pa. External dimensions: Length 528 × Width 145 × Height 280mm.
