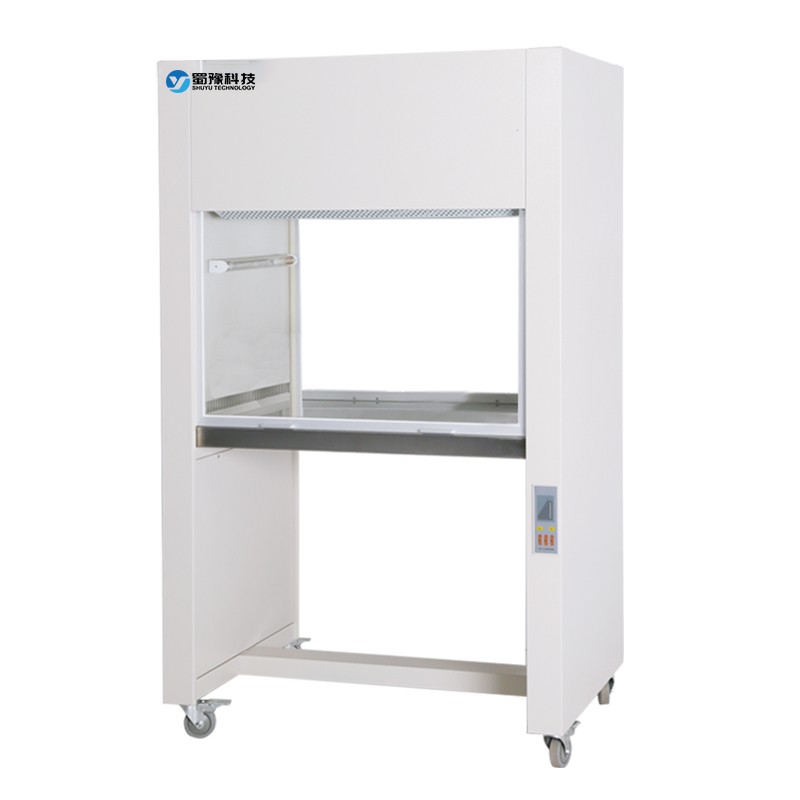

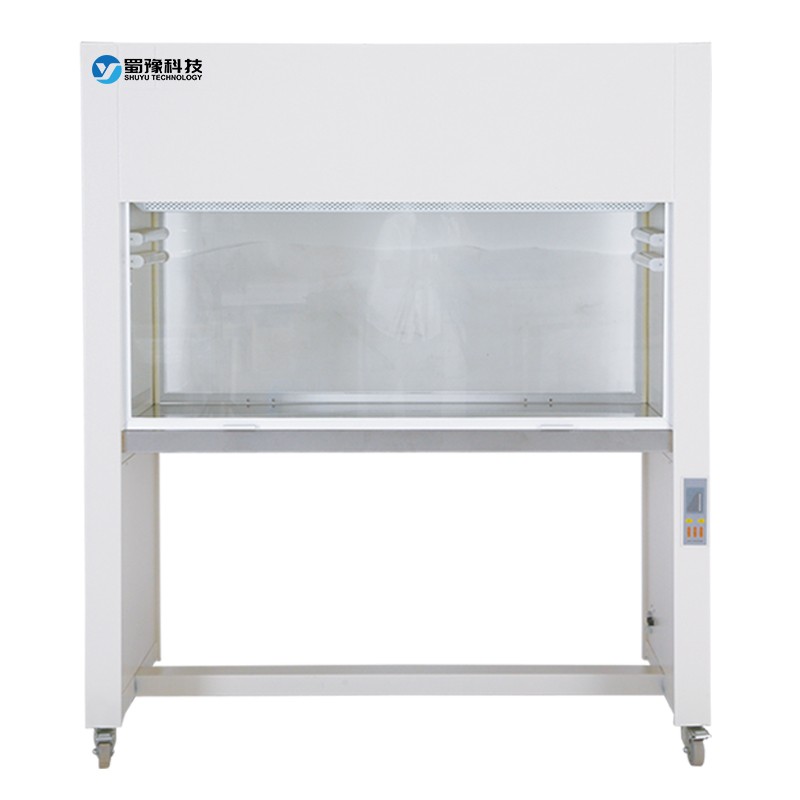

Laminar Flow Hood
- Category： Clean Bench
- Brand:Shu Yu
- Name：Vertical Laminar Flow Hood
- Applications：It is suitable for biological laboratories, pharmaceuticals, electronics manufacturing, food testing, and cosmetics production. It is also commonly used in relevant sterile inspection and
1.With the rapid development of science and technology, air cleaning technology has been widely applied in technical and production fields such as aerospace, navigation, pharmaceuticals, microbiology, genetic engineering, and the food industry.
2.Laminar Flow Hood, Clean Bench is a purification equipment that provides a local clean environment. Its use has a good effect on improving process conditions, enhancing product quality, and increasing the qualified rate of finished products.
Features

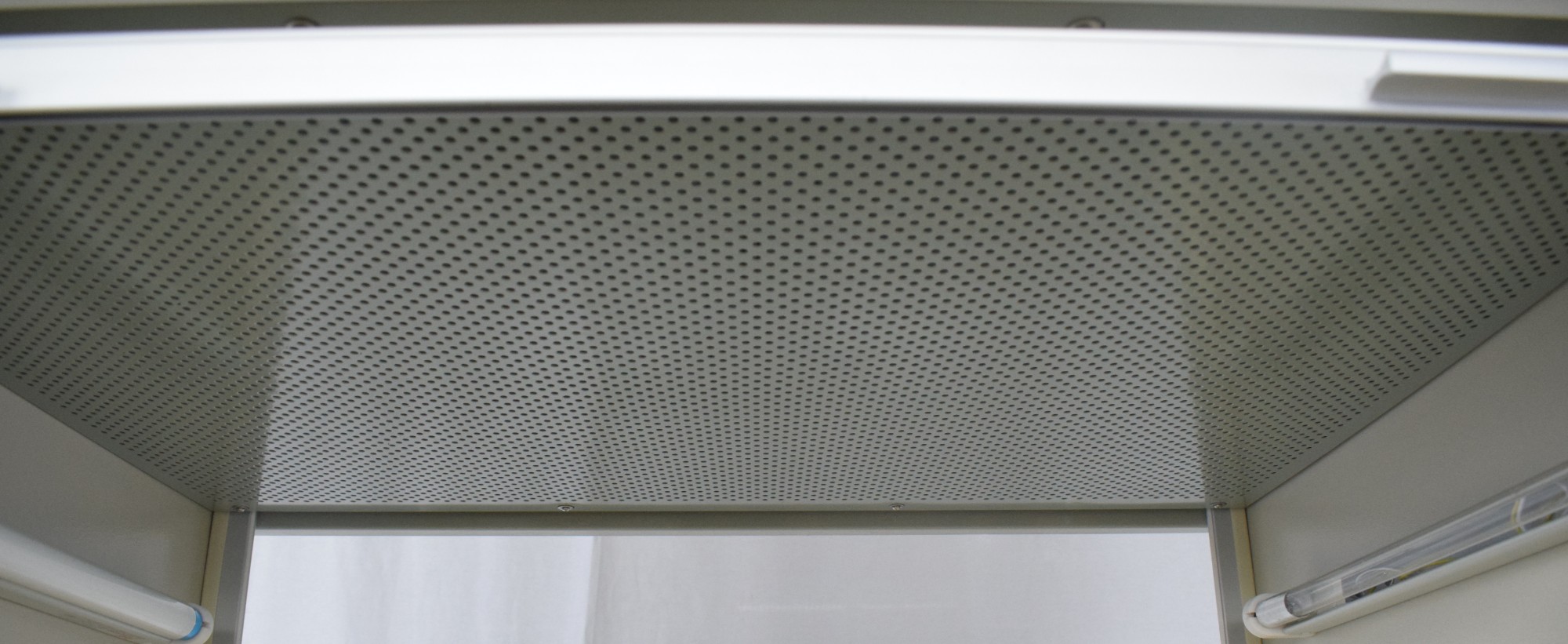

●Laminar Flow Hood, Clean Bench is a vertical local air purification equipment. The indoor air is initially filtered by a pre - filter, pressed into a static pressure box by a small centrifugal fan, and then filtered at the secondary stage by an air high - efficiency filter. The clean air flow blown out from the air outlet surface of the air high - efficiency filter has a uniform cross - section wind speed, which can exclude the original air in the work area and carry away dust particles and microorganisms, so as to form a sterile and highly clean working environment.
●This equipment is made by high - quality bending, assembling and welding. The worktop is formed by one - time bending of high - quality stainless steel material. The air supply body is equipped with electrical components such as a new - type non - woven pre - filter, an air high - efficiency filter made of ultra - fine glass fiber filter material, and a small low - noise variable - speed centrifugal fan. The equipment has the characteristics of simple structure and beautiful appearance.

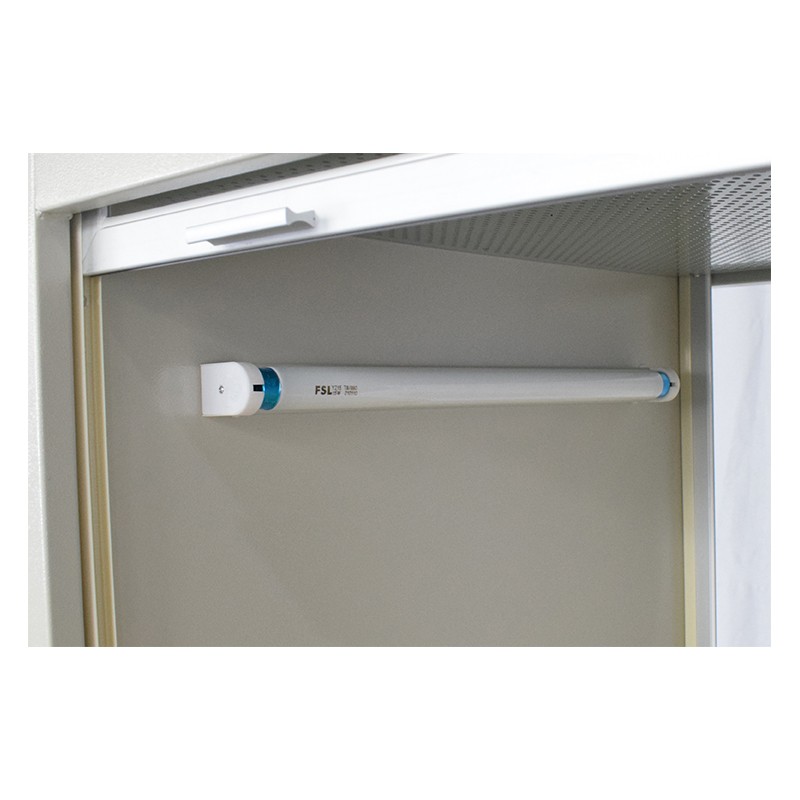

●This equipment adopts a variable - speed fan system. By adjusting the input voltage of the centrifugal fan, its working condition is changed, so that the average wind speed at the air outlet surface is always maintained within an ideal range, effectively prolonging the service life of the main component of the equipment - the high - efficiency filter and reducing the operation cost of the equipment. This equipment is also equipped with an ultraviolet sterilization device, which completely kills the residual microorganisms attached to the inner walls and corners of the workroom.
Parameters
|
Product Model |
Item |
Technical Parameters2 |
|||
|
1 |
Product Model |
Single person and single vertical air delivery SW - CJ - 1FD |
Single double-sided vertical air delivery SW - CJ - 1F |
Double single vertical air delivery SW - CJ - 2FD |
Double-sided vertical air delivery SW - CJ - 2F |
|
2 |
Cleanliness Class |
ISO Class 5, Class 100 (equivalent to Federal 209E) |
|||
|
3 |
Settling Bacteria Concentration |
≤0.5cfu / 皿・0.5h |
|||
|
4 |
Average Air Velocity |
≥0.3m/s (adjustable) |
|||
|
5 |
Noise |
≤62dB (A) |
|||
|
6 |
Vibration Half - peak Value |
≤3μm (x, y, z directions) |
|||
|
7 |
Illuminance |
≥300Lx |
|||
|
8 |
Power Supply |
AC 220V 50Hz |
|||
|
9 |
Maximum Power |
250W |
250W |
380W |
380W |
|
10 |
Specification and Quantity of High - efficiency Filter |
784×558×50mm×① |
1203×568×50mm×① |
||
|
11 |
Working Chamber Dimensions (mm) |
820×610×500 |
820×610×500 |
1240×620×500 |
1240×620×500 |
|
12 |
Appearance Dimensions (mm) |
960×680×1620 |
960×680×1620 |
1380×690×1620 |
1380×690×1620 |
