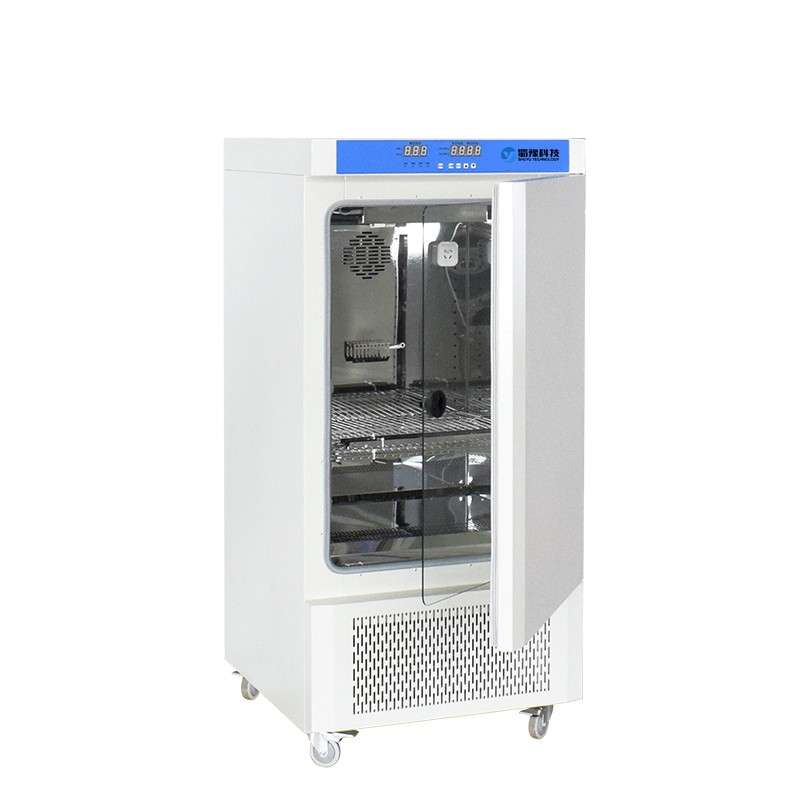

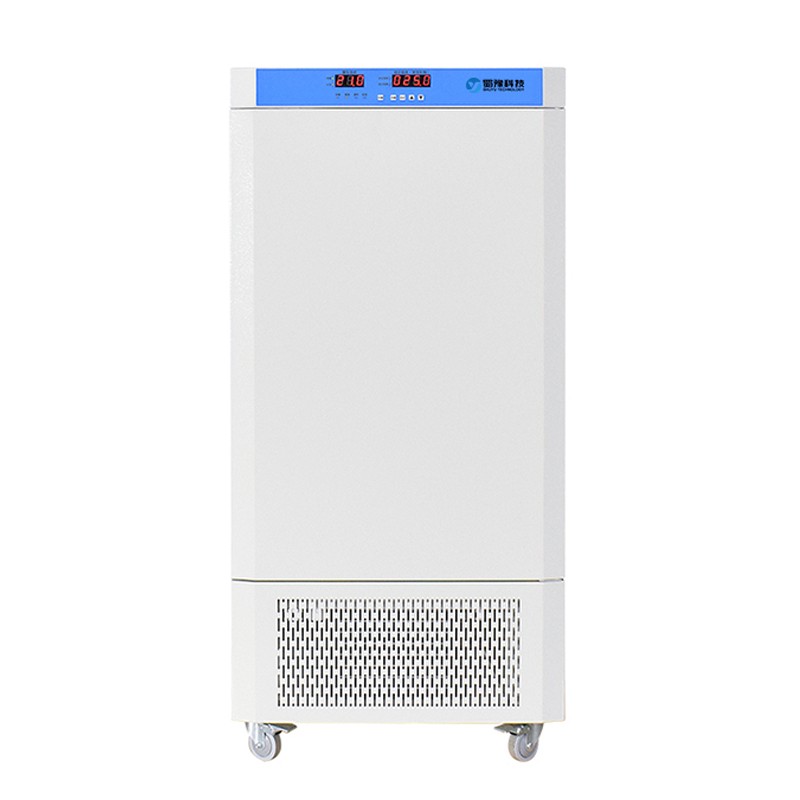

Mold Incubator

Category： Thermostatic Chamber
Brand:Shu Yu
Model：MJ-II/III
Application:Widely employed in medical, pharmaceutical testing, public health, and environmental protection research departments. It serves as a constant-temperature apparatus for the cultivation and
INQUIRY EMAIL

Description
This product is a high-precision equipment with cold and hot temperature control and constant humidity (Type III) control. It is widely used in scientific research departments such as medical care, drug inspection, health and epidemic prevention, and environmental protection. It is a constant-temperature equipment for the cultivation and protection of cells, bacteria, molds, and microorganisms, as well as experiments such as plant cultivation and breeding.

Features
●The inner liner is made of high - quality mirror - finish stainless steel, featuring corrosion resistance, acid resistance, easy cleaning, and no rusting.
●Microcomputer intelligent temperature controller, with PID control, stable temperature control and high precision. It has LED high - brightness digital display, which is intuitive and clear, and has good control ability and anti - interference ability. Double temperature insurance devices: The temperature controller has automatic tracking and over - temperature alarm functions; once over - temperature occurs, the heating system will be cut off immediately. Meanwhile, a temperature insurance device is installed in the working chamber to ensure the safety of the cultures in the working chamber.

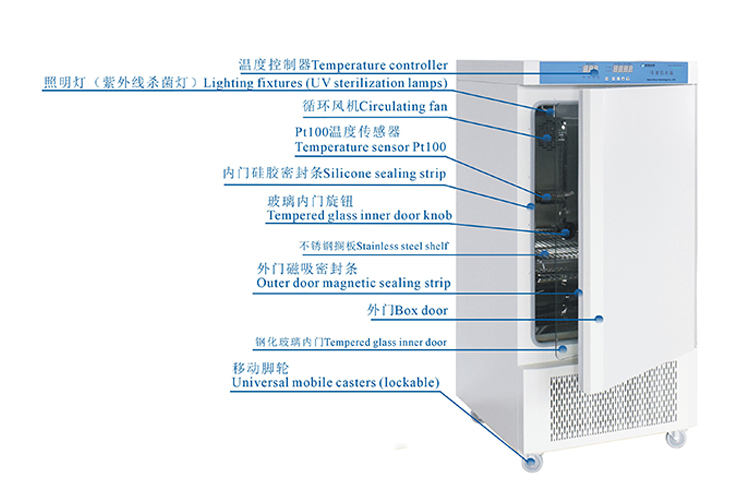

●Double - door structure: After the outer door is opened, the experiment in the working chamber can be observed through the inner door made of high - strength tempered glass, and the temperature will not be affected. An ultraviolet sterilization device and a BOD socket (only for Type II with a volume of 150L and above) are installed in the working chamber; the shelf in the working chamber is made of stainless steel, and its height can be adjusted arbitrarily.
●Independent over - temperature alarm system, which will automatically cut off when the limited temperature is exceeded, ensuring the smooth progress of the experiment (optional).
●It can be equipped with a printer or an RS - 485 interface to connect to a computer for recording the changes of test parameters (optional).
●A test hole is arranged on the side of the cabinet, facilitating experimental operations and temperature measurement (optional).

●Programmable control mode is available, and multiple parameters (including temperature, humidity, time, etc.) can be set for operation (optional for Type III).

parameters

No.	Item	Mold Incubator - II Series				Mold Incubator - III Series
1	Product Model	MJ-80BSH-II	MJ-160BSH-II	MJ-250BSH-II	MJ-300BSH-II	MJ-160BSH-III	MJ-250BSH-III	MJ-300BSH-III
2	Internal Volume	80L	150L	250L	300L	150L	250L	300L
3	Heating & Cooling Method	Stainless steel electric heater / Hermetic non-fluorinated compressor
4	Temperature Control Range	0°C ~ 60°C				0°C ~ 60°C (10°C - 45°C during humidification)
5	Temperature Resolution	0.1°C
6	Humidity Control Range	Not applicable (No humidification function)				55% - 90% RH, Fluctuation: ±5% - ±8% RH (at 25°C - 40°C)
7	Humidification Method	None				External ultrasonic humidifier
8	Temperature Fluctuation	±0.5°C (Heating mode) / ±1°C (Cooling mode)
9	Number of Shelves	2 pcs (Stainless steel)		3 pcs (Stainless steel)
10	Refrigerant Type	R134a (Non-fluorinated, Eco-friendly)
11	Operating Timer Range	1 min - 99 hrs 59 mins / Continuous operation				1 hr - 9999 hrs / Continuous operation
12	Rated Power	300W	400W	500W	700W	800W	850W	1000W
13	Power Supply	AC 220V, 50Hz
14	Working Chamber Dimensions (W×D×H, mm)	440×320×520	480×390×780	570×500×850	570×540×950	480×390×780	570×500×850	570×540×950
15	Overall Dimensions (W×D×H, mm)	570×545×1120	610×625×1435	700×715×1500	700×735×1600	610×625×1435	700×715×1500	700×735×1600

Optional Accessories Introduction

The optional accessories for the equipment include the following categories, with specific correspondences as follows:
1.Intelligent Program Controller
There are two types available: Intelligent Program Controller (Type II) and Intelligent Program Controller (Type III), both of which are optional configuration options for enhancing the equipment’s program control capability.
2.Other Functional Accessories
Matching with relevant configurations: Embedded Printer, which can be selected to realize on-site printing of test data; LCD Display Meter, which is divided into LCD Display Meter (Type II) and LCD Display Meter (Type III), corresponding to different equipment models to optimize parameter display effects; RS-485 Communication Interface and Software, used for data transmission and connection with external devices; and Cabinet Side Test Hole, designed to facilitate on-site experimental operations and temperature measurement.
3.Independent Temperature Limit Controller
This is an independent optional accessory, mainly used to monitor and control the temperature limit of the equipment, providing an additional layer of safety protection for the operation process.

Remarks
All performance parameters of the equipment are tested under no-load conditions. The specific test environment is as follows: ambient temperature is 20°C, and ambient humidity is 50%RH. This ensures that the parameter data provided is based on a unified and standardized test background, allowing users to more accurately reference and evaluate the equipment’s performance.
