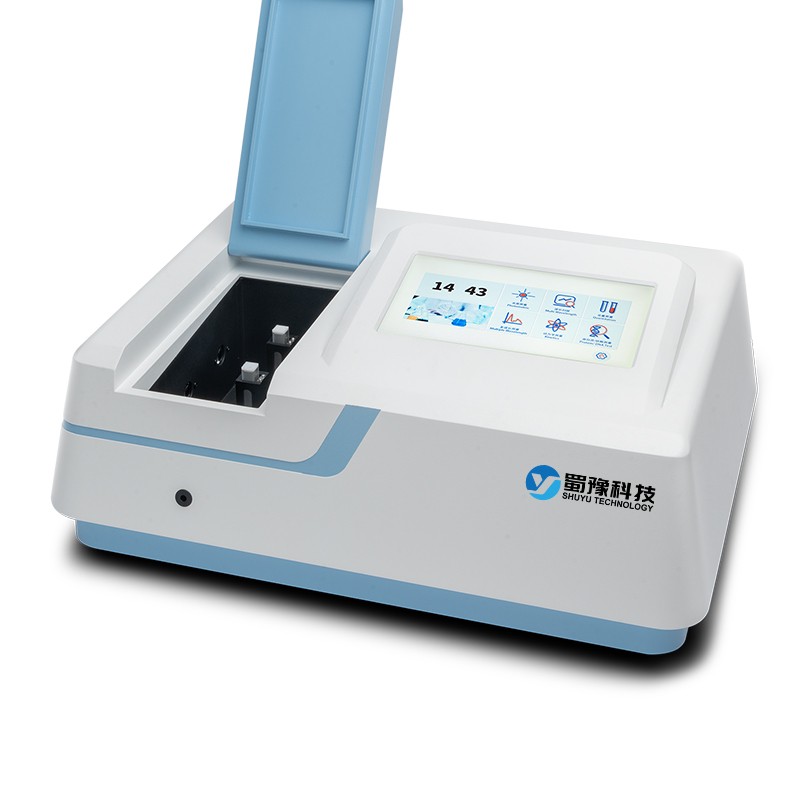

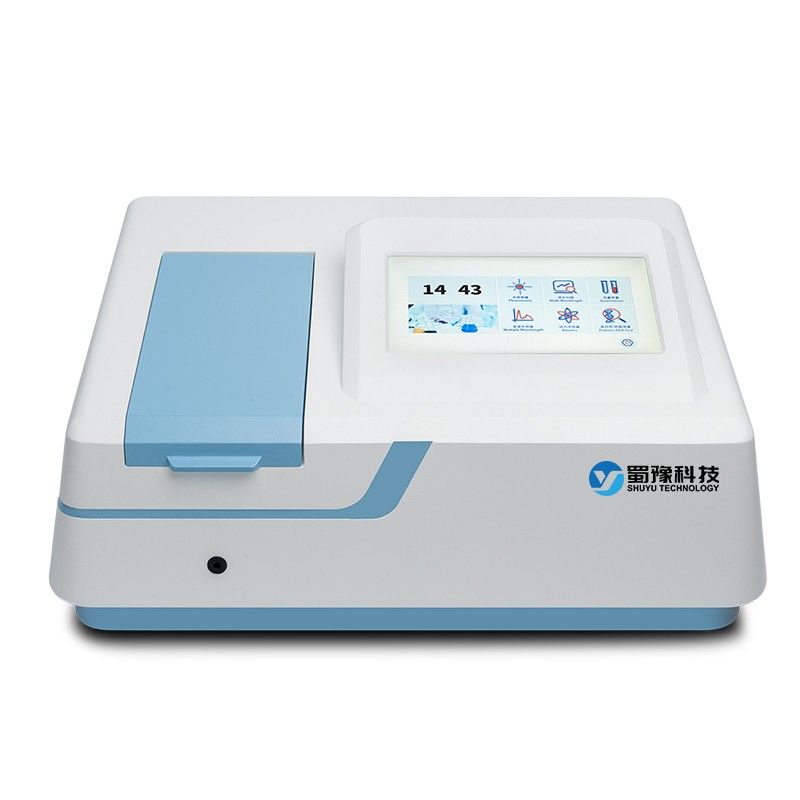

Touch screen single beam Visible spectrophotometer

Category： UV/vis Spectrophotometer
Brand:Shu Yu
Name：SP-UV2101
Application:Laboratory ,Chemical,Medical,School
INQUIRY EMAIL

Description

Our Spectrophotometer range is highly recommended for live display of ABS & %T, Quantitative analysis (Beer's Law),
Reaction monitoring, Colorimetric analysis, Kinetic experiments, Protein and DNA assays, DNA & RNA quantification,
Protein quantification and many more application in Advanced teaching labs; Industrial, Pharmaceutical, Life Science &
Biotechnology research QA/QC labs.

Feature
●10.1 inches high resolution TFT colored capacitive touch screen (1024*600) and windows graphic interface.
●Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan,
●DNA\Protein test, multi-wavelength test, etc
In-house massive memory is capable of saving up to 1024M for test data & working curves.
●Various optional accessories, like automatic cell holder, thermostatic automatic sampler, adjustable micro cell holder, reflection accessory and integrating sphere, etc. which extend the application range of device and combine the requirements of common samples and special ones.
●Supports USB storage. The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage.
●Socket type deuterium and tungsten lamp can make lamps switching without optics debugging and easy to be replaced.
●Follow GLP/GMP standards, user management, logging, data tracking and exporting, etc.are all available.

Speciﬁcation

Specifications	SP - UV2101
Optical System	Single Beam, Grating 1200 lines/mm
Wavelength Range	190 - 1100 nm
Spectral Bandwidth	1nm
Wavelength Accuracy	±0.1nm@656.1nm, ±0.3nm@all
Wavelength Repeatability	<= 0.1nm
Photometric Accuracy	0.2%T(0 - 100%T), ±0.002A(0 - 0.5A), ±0.004A(0.5 - 1A)
Photometric Repeatability	≤0.15%T (0 - 100%T), 0.001A(0 - 0.5A), 0.002A(0.5 - 1A)
Photometric Range	0 - 200%T, - 0.3 - 3A, 0 - 9999C (0 - 9999F)
Stray Light	<= 0.03%T@220nm, 360nm
Stability	±0.0003A/h @500 nm
Baseline Flatness	±0.001A
Noise	0.0005A@500nm
Work Mode	T, A, C, E
Scanning Speed	Hi, Med, Low (Max. 3000nm/min)
Wavelength Setting	Auto
Display	10.1" TFT Colored Capacitive Touch Screen
Light Source	Imported Deuterium & Tungsten lamp
Detector	Imported Silicon Photodiode
Cuvette Holder	10mm manual 4 - cell holder
Output	USB drive, USB host, RS232
Power	AC 220V/50Hz or AC 110V/60Hz
Shipping Size	810660390mm
Gross Weight	26kg
Standard Accessories	10mm glass cuvette x 4, 10mm quartz cuvette x 2, Power cord, User’s Manual, PC software
