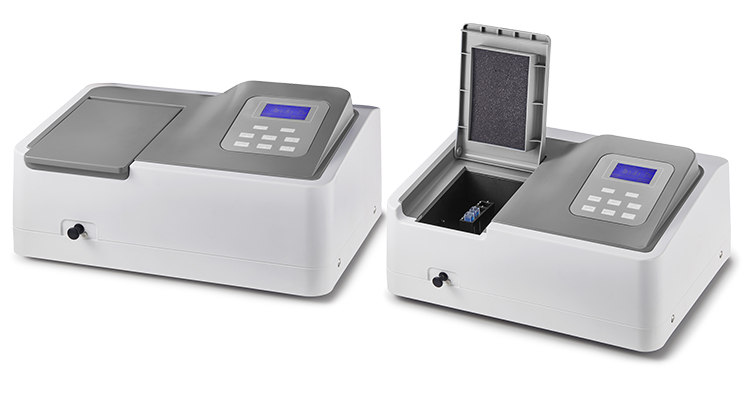

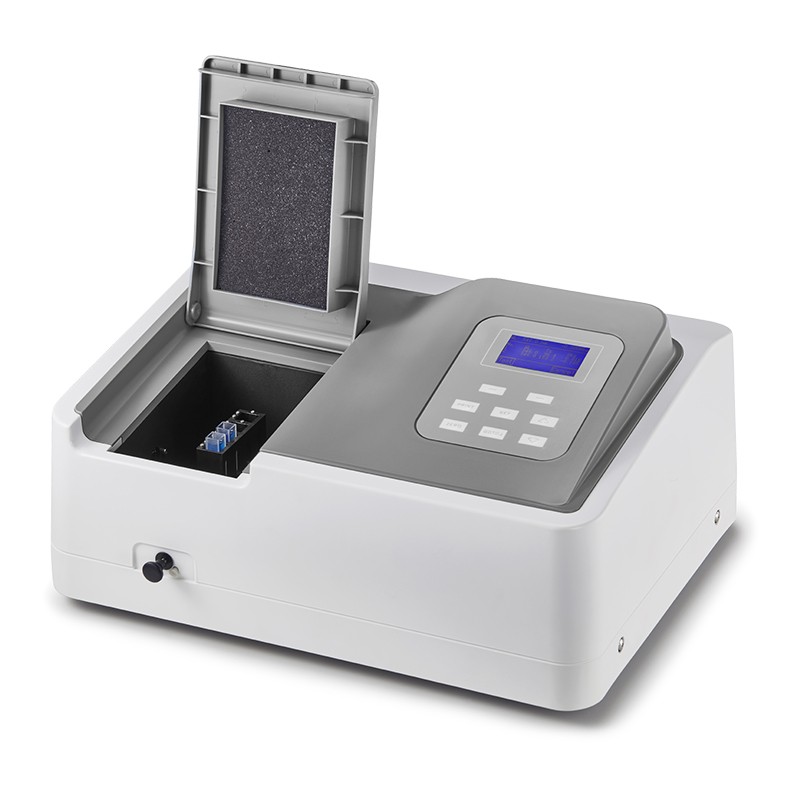

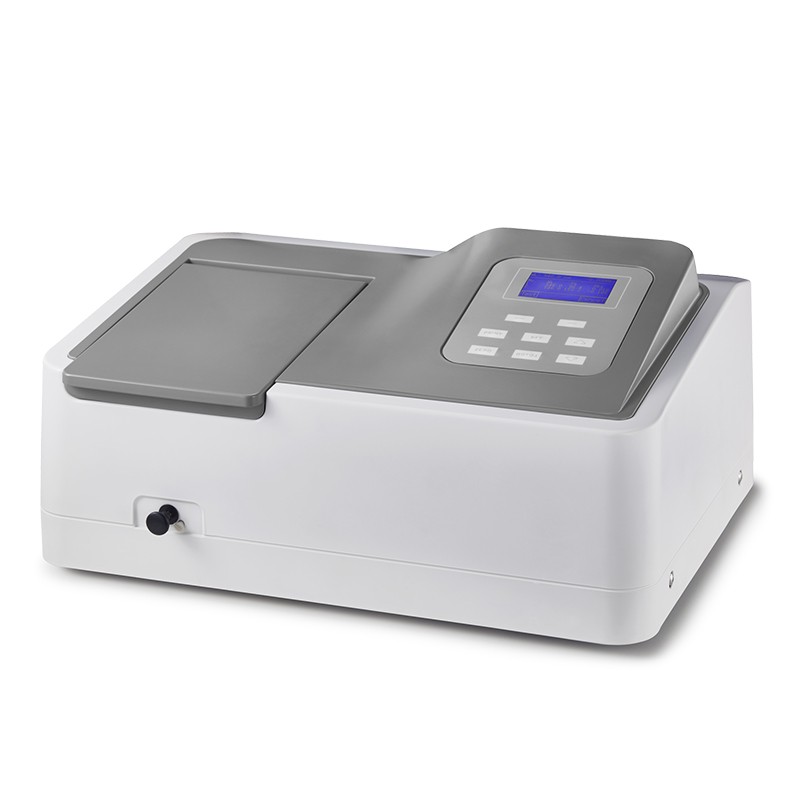

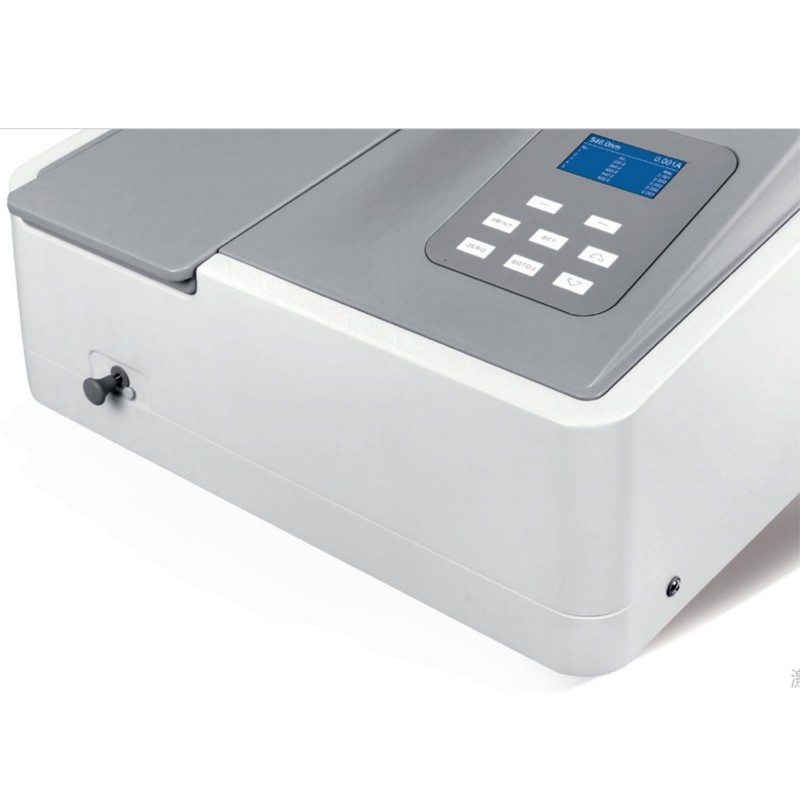

Single Beam Spectrophotometer

Category： UV/vis Spectrophotometer
Brand:Shu Yu
Name： SP-V1000/SP-UV1000/SP-V1100/SP-UV1100 Spectrophotometer
Application:Laboratory ,Chemical,Medical,School
INQUIRY EMAIL

Description

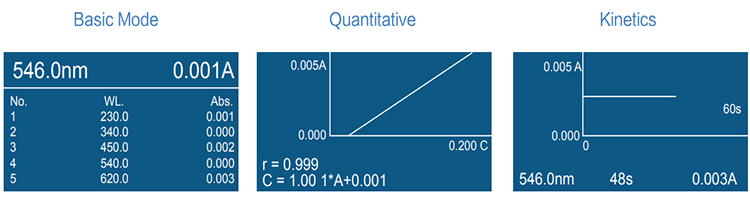

Our Spectrophotometer range is highly recommended for live display of ABS & %T, Quantitative analysis (Beer's Law),
Reaction monitoring, Colorimetric analysis, Kinetic experiments, Protein and DNA assays, DNA & RNA quantification,
Protein quantification and many more application in Advanced teaching labs; Industrial, Pharmaceutical, Life Science &
Biotechnology research QA/QC labs.

Feature

•Saves up to 200 group data & 200 standard curves
•Data can be restored even after a sudden power failure
•Auto setting of wavelength to calibrate the system
•Wavelength range from 190 to 1100nm
•Automatic Switching between Tungsten & Deuterium lamps
•System is fully equipped and capable of executing all functions
in stand-alone mode
•Large sample for accommodate 5–100mm path length
cuvettes with optional holders
•Optional application software 'Wave Professional' provides
computer control , and other functions such as spectrum scan,
time scan(kinetics), multiwavelength scanning & Nucleic Acid /
Protein measurement. (SP-V1100/SP-UV1100)
•Wide range of accessories are available

Speciﬁcation

Model	SP - V1000	SP - UV1000	SP - V1100	SP - UV1100
Optical System	Single Beam	Single Beam	Single Beam	Single Beam
Light Source	Tungsten lamp	Tungsten lamp & Deuterium lamp	Tungsten lamp	Tungsten lamp & Deuterium lamp
Spectral Bandwidth	4.0nm	4.0nm	2.0nm	2.0nm
Wavelength Range	325 - 1000nm	200 - 1000nm	320 - 1100nm	190 - 1100nm
Wavelength Accuracy	±2nm	±2nm	±0.5nm	±0.5nm
Wavelength Repeatability	≤1nm	≤1nm	≤0.3nm	≤0.3nm
Photometric Range	-0.3 - 3.0 A, 0 - 200%T	-0.3 - 3.0 A, 0 - 200%T	-0.3 - 3.0 A, 0 - 200%T	-0.3 - 3.0 A, 0 - 200%T
Photometric Accuracy	±0.003 A @ 0.5 A, ±0.006 A @ 1.0 A, ±0.5%T @ 100%T	±0.003 A @ 0.5 A, ±0.006 A @ 1.0 A, ±0.5%T @ 100%T	±0.002 A @ 0.5 A, ±0.004 A @ 1.0 A, ±0.3%T @ 100%T	±0.002 A @ 0.5 A, ±0.004 A @ 1.0 A, ±0.3%T @ 100%T
Photometric Repeatability	≤0.0015 A @ 0.5 A, ≤0.003 A @ 1.0 A, ≤0.25%T @ 100%T	≤0.0015 A @ 0.5 A, ≤0.003 A @ 1.0 A, ≤0.25%T @ 100%T	≤0.001 A @ 0.5 A, ≤0.002 A @ 1.0 A, ≤0.15%T @ 100%T	≤0.001 A @ 0.5 A, ≤0.002 A @ 1.0 A, ≤0.15%T @ 100%T
Stability	≤0.002 Ah @ 500 nm (after preheat 2 hours)	≤0.002 Ah @ 500 nm (after preheat 2 hours)	≤0.002 Ah @ 500 nm (after preheat 2 hours)	≤0.002 Ah @ 500 nm (after preheat 2 hours)
Stray Light	≤0.2%T @ 360nm	≤0.2%T @ 360nm	≤0.05%T @ 360nm	≤0.05%T @ 220 & 360nm

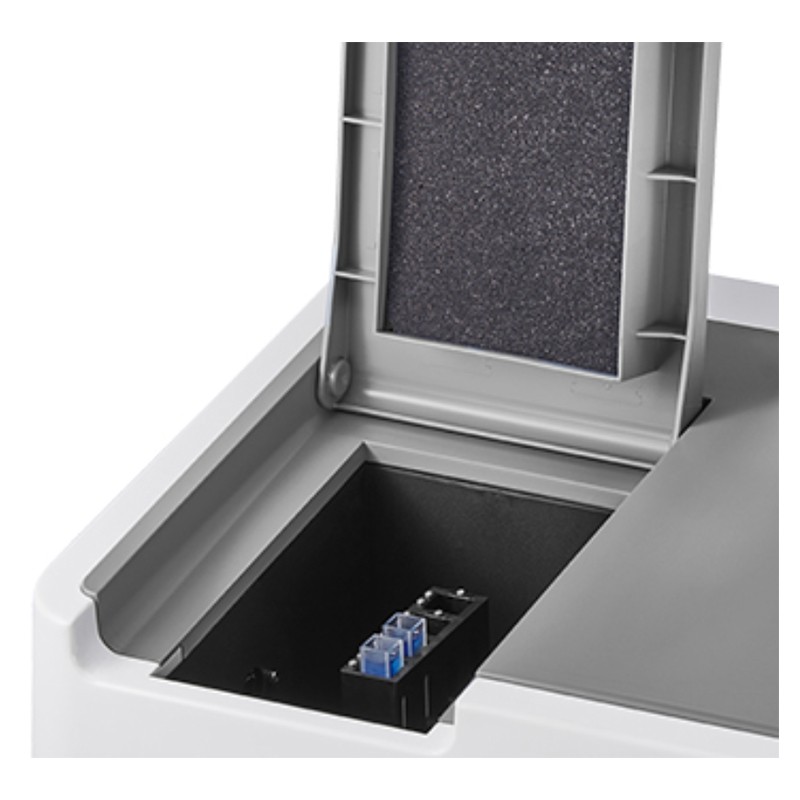

Sample Compartment	4 - position, 10mm pathlength cuvette	4 - position, 10mm pathlength cuvette	4 - position, 10mm pathlength cuvette	4 - position, 10mm pathlength cuvette
Display	LCD	LCD	LCD	LCD
Output	USB Port & Parallel Port (Printer)	USB Port & Parallel Port (Printer)	USB Port & Parallel Port (Printer)	USB Port & Parallel Port (Printer)
Power Requirements	110/220VAC, 50/60Hz, 80W	110/220VAC, 50/60Hz, 120W	110/220VAC, 50/60Hz, 80W	110/220VAC, 50/60Hz, 120W
Dimension(L × W × H)	490 × 360 × 210mm	490 × 360 × 210mm	490 × 360 × 210mm	490 × 360 × 210mm
Weight	12kg	14kg	12kg	14kg
