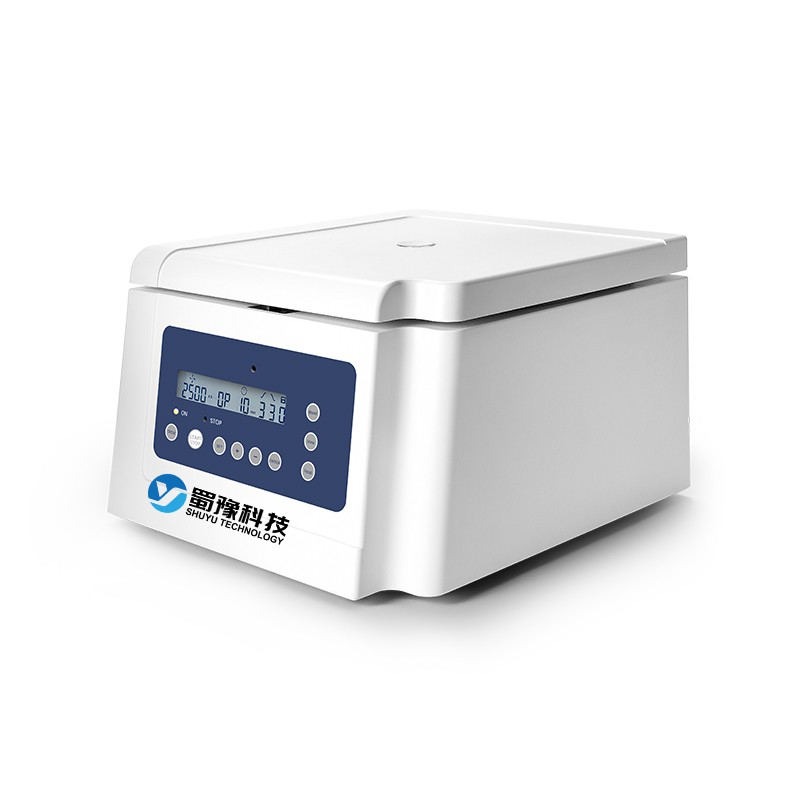

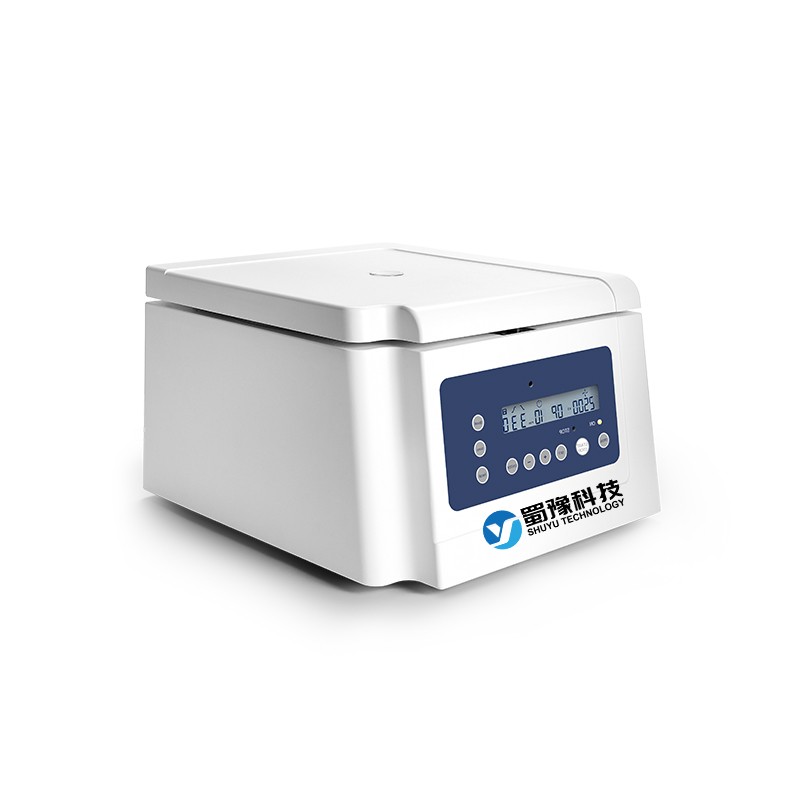

Clinical low-speed centrifuge

Category： Low Speed Centrifuge
Brand:Shu Yu
Model:DM0424/DM0408
Application：used in applications from clinical to bioche mical for qualitative analysis of serum, plasma, blood, and urine.
INQUIRY EMAIL

Applications

used in applications from clinical to bioche mical for qualitative

analysis of serum, plasma, blood, and urine.

Features
●Quiet, compact, and convenient with LCD display
●Maximum up to 4000rpm Speed can be set in RPM/RCF, with 3
customizable routine programs (Blood, Urine & Faecal)
●3 acceleration level & 4 level deceleration
●Maximum capacity 50mL ×4, Accommodating different sizes of
blood collection tubes and Centrifuge tubes suitable for swing
out rotor and angle rotor
●Automatic internal diagnosis and self-detection

●Maintenance-free brushless DC motor

parameters

Specifications	DM0424	DM0408
Speed range	500 - 4000rpm increment: 100rpm	300 - 4000rpm increment: 100rpm
Max. RCF	2500×g	1900×g
Speed accuracy	±100rpm	±100rpm

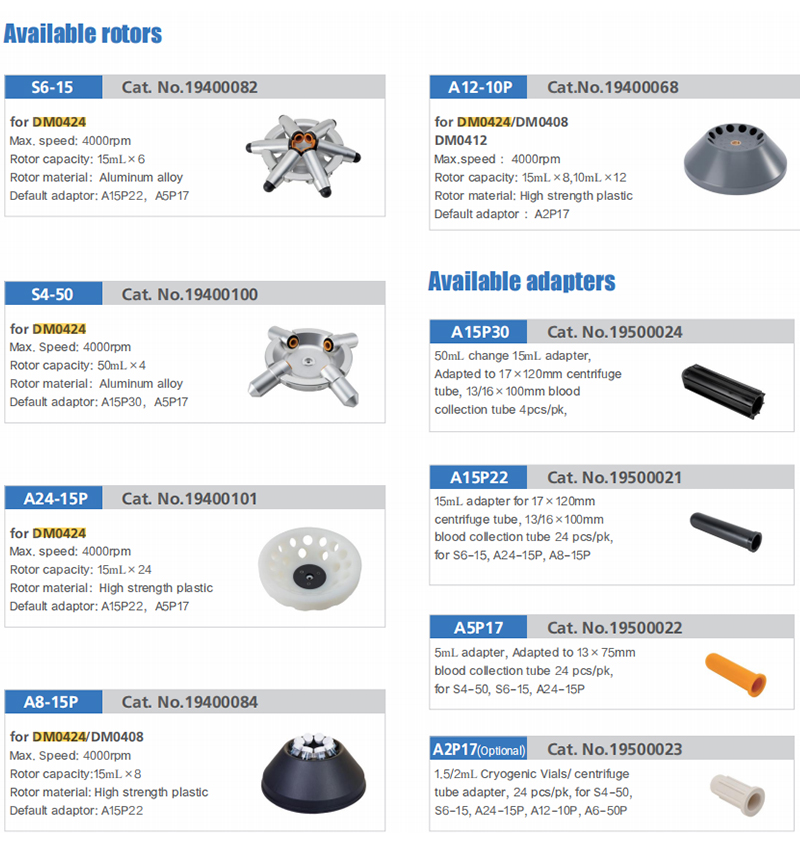

Rotor	Swing6 × 15mLSwing4 × 50mLAngle 24 × 15 mL,Angle 12 × 10mL/8 × 15mL	Angel 8 × 15mL(Default),Angel 12 × 10mL
Run time	1 - 99min, HOLD	1 - 99min, HOLD
Motor	Brushless DC motor	Brushless DC motor
Display	LCD	LED
Program	Blood: 3200rpm,10min.Urine: 1800rpm,5min.Faecal: 1300rpm,10min.	Blood: 3200rpm, 10minUrine: 1800rpm,5minFaecal: 1300rpm, 10min
Safety Device	Automatic internal diagnosis	Automatic internal diagnosis
Acceleration/deceleration	3↑4↓ steps	25s↑35s↓
Power Requirements	Single phase, 100V - 240V, 50Hz/60Hz	Single phase, 100V - 240V, 50Hz/60Hz
Dimension(W×D×H)	364 × 440 × 268mm	286 × 367 × 227mm
Weight	14.5kg	9.2kg
Certification	CE cTÜVus	CE cTÜVus
Noise	≤62dB(A)	≤60dB(A)
