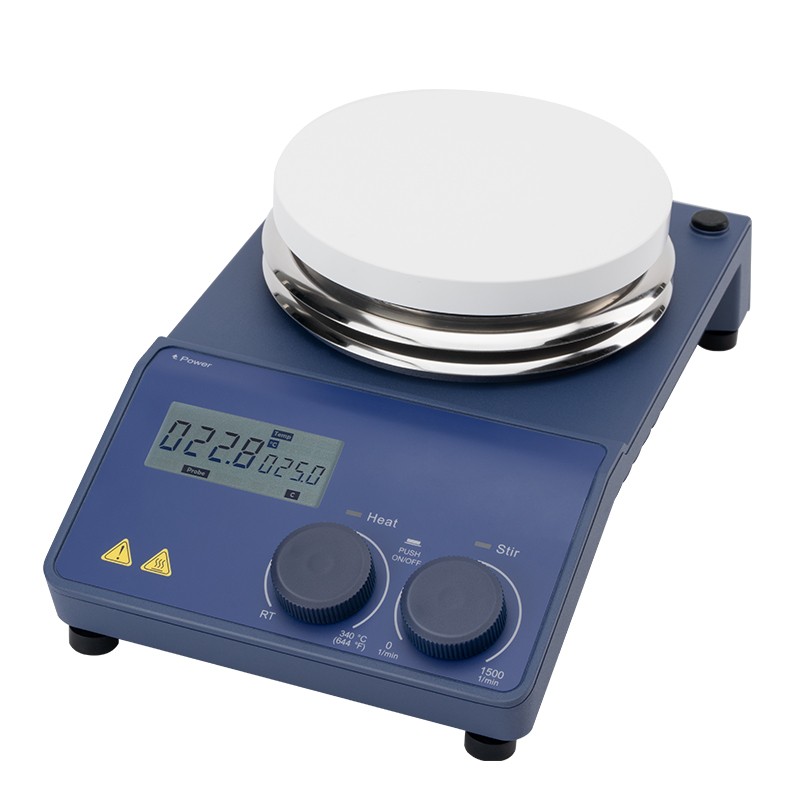

Automatic Magnetic Stirrer

Category： Magnetic Stirrer
Brand:Shu Yu
Model:MS-H-Pro^A / MS-H-PRO^B / MS-H-PRO^C / MS-H-S
INQUIRY EMAIL

Features
●Brushless DC motor is maintenance free and explosion-proof
●Digital temperature control up to 340°C
●Digital speed control up to 1500rpm
●Maximum stirring quantity of H2O is 20L
●Safety circuits provide overheating protection
●"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
●Wide range timer function from 1 min to 99h 59min (MS-H-ProT
only)
●High-resolution LCD display shows actual temperatures and speed (MS-H-ProT
displays the time)
●External temperature control is possible by connecting the temperature sensor
(PT 1000)with accuracy at ±0.2°C
●Work plate with ceramic coating provides good chemical-resistantperformance
●Remote function provides PC control and data transmission
●Wide variety of accessories available to choose

Security
●International safety certification: CE, CTÜVuS, FCC and other product safety cert,certifications issued by TUV Rheinland
●Safety circuits provide overheating protection
●“HOT” warning flashes if the work plate temperature is above 50°C
●Brushless DC motor is maintenance free and exposion-proof

●Fully enclosed aluminum alloy housing with good heat dissipation performance and reliable protection capability

parameters

Specifications	MS-H-Pro^A	MS-H-PRO^B	MS-H-PRO^C	MS-H-S
Work plate Dimension (W x D)	∅135mm (5 inch)	∅135mm (5 inch)	∅135mm (5 inch)	∅135mm (5 inch)
Work plate material	Aluminum cover with ceramic coating	Stainless steel cover with ceramic coating	Stainless steel cover with ceramic coating	Stainless steel cover with ceramic coating
Motor type	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor
Stirring positions	1	1	1	1
Max. stirring quantity (H₂O)	20L	20L	20L	20L
Max. magnetic bar length	80mm	80mm	80mm	80mm
Speed range	100 - 1500rpm, resolution ±1rpm	100 - 1500rpm, resolution ±1rpm	100 - 1500rpm, resolution ±1rpm	0 - 1500rpm
Speed display	LCD	LCD	LCD	Scale
Temperature display	LCD	LCD	LCD	Scale
Heating temperature range	Room temp - 340℃, increment 1℃	Room Temp - 340℃, increment 1℃	Room Temp - 340℃, increment 1℃	Room Temp - 340℃
Heating liquid temperature control accuracy	±1℃(<100℃), ±1%(>100℃)	±1℃(<100℃), ±1%(>100℃)	±1℃(<100℃), ±1%(>100℃)	-
Overheating temperature protection	420℃	420℃	420℃	420℃
Temperature display accuracy	±0.1℃	±0.1℃	±0.1℃	-
External temperature sensor	PT1000 (accuracy ±0.2℃)	PT1000 (accuracy ±0.2℃)	PT1000 (accuracy ±0.2℃)	-
"Hot" warning	50℃	50℃	50℃	-
Data connector	RS232	RS232	RS232	-
Protection class	IP21	IP21	IP21	IP21
Timer function	-	-	1min to 99h59min	-
Motor rating input	18W	18W	18W	18W
Motor rating output	10W	10W	10W	10W
Power	650W	550W	550W	530W
Heating output	600W	500W	500W	500W
Voltage, Frequency	100 - 120/200 - 240V, 50/60Hz	100 - 120/200 - 240V, 50/60Hz	100 - 120/200 - 240V, 50/60Hz	100 - 120/200 - 240V, 50/60Hz
Dimension (WxDxH)	280x160x100mm	160x280x100mm	160x280x100mm	160x280x100mm
Weight	2.8kg	2.8kg	2.8kg	2.8kg
Permissible ambient temperature and humidity	5 - 40℃, 80%RH	5 - 40℃, 80%RH	5 - 40℃, 80%RH	5 - 40℃, 80%RH
