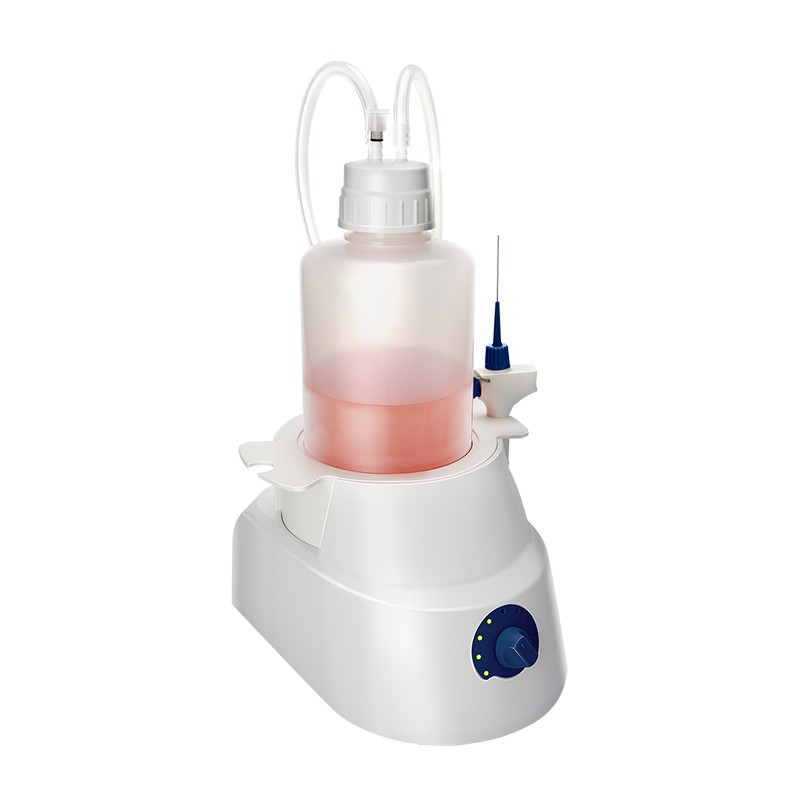

Economical Vacuum Aspirator

Category： Pipette
Brand:Shu Yu
Model：EcoVac
Small，compact and easy to use system for the convenient handling of liquid waste disposal.
INQUIRY EMAIL

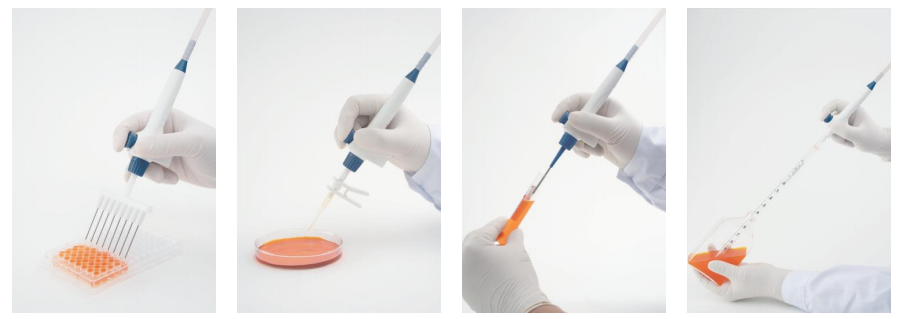

Applications
EcoVac is suitable for any application where the single liquid suction volume is less than 2L.The applicability
includes use of various common consumables,which can be widely used in the collection and removal of liquids
in experiments of microorganisms,molecules,proteins,cells,etc.,and other applications such as RNA/DNA
extraction,Western blots and ELISA.

•Aspiration of supernatants after centrifugation
• Aspiration of eluent
• Removal of supernatants during nucleic acid extraction
• Removal of culture media
• Removal of wash solutions from immuno-assay well-plate
• Removal of buffers of Western blot strips

• Removal of excess liquid from slides and Petri dishes

A	8-channel tip detrusion adapter 200μL tip
B	8 channel needle ∅1.5mm
C	Single needle ∅2.5mm, 40mm
D	Single needle ∅2.5mm, 120mm
E	Single needle ∅1.5mm, 40mm
F	Single needle ∅1.5mm, 120mm
G	tip detrusion adapter 200μL tip
H	tip detrusion adapter 1mL tip

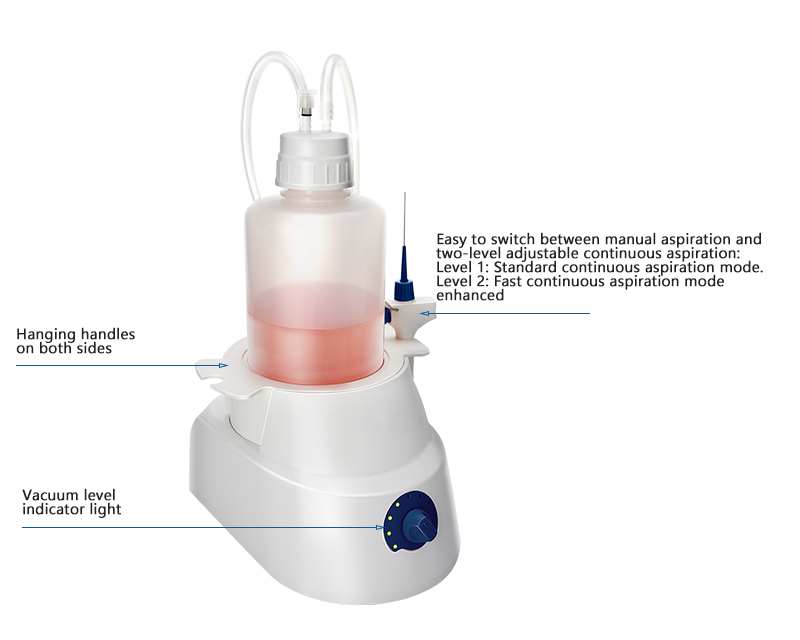

Features
●Small and compact to fit in the cabinet, on the benchtop or even beneath the bench
●Easy to switch between manual aspiration and continuous aspiration mode, reducing RSI (Repetitive Strain Injury) and improving efficiency
●Collection bottle outlet with hydrophobic filter prevents aerosol and liquid contamination
●Brushless motor offers low noise and long life
●Different adapters are available to fit a multitude of laboratory supplies
●The parts in contact with liquids can be autoclaved
●Adjustable vacuum level with indicator light is designed for various applications

Specifications

Specifications	Details
Vacuum range	0–500mbar
Aspirating speed	15L/min (air)
Flow rate [liquid]	17mL/s
Bottle	2L standard, 1L optional with adaptor
Motor type	Brushless Motor
Input voltage	100–220VAC, 50/60Hz
Dimension [W×D×H]	180×240×340 mm
Weight	2.8kg
