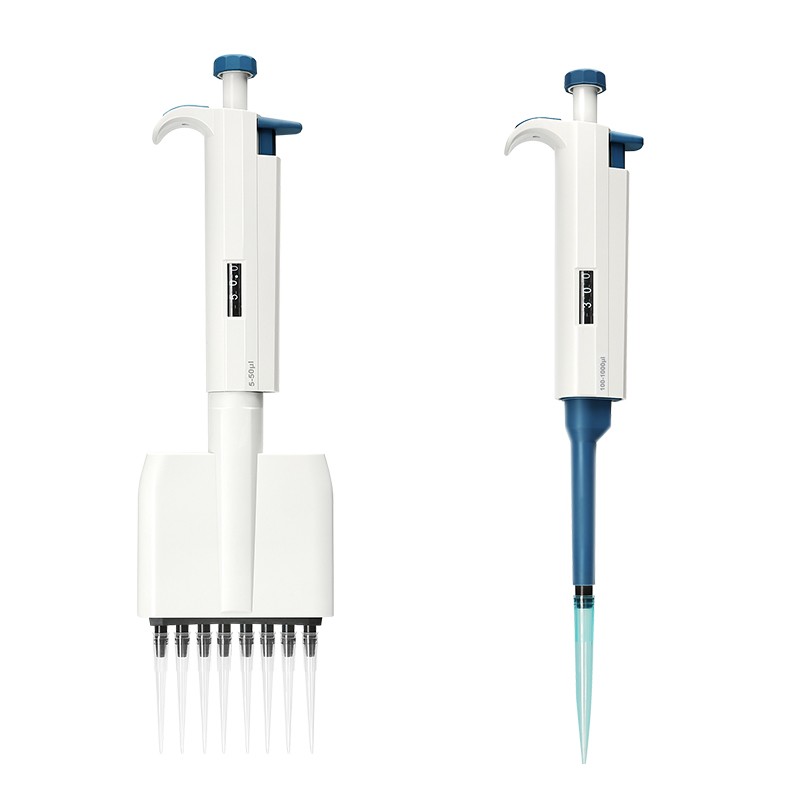

multi-channel pipette manifold

Category： Pipette
Brand:Shu Yu
Name:multi-channel pipette manifold
Application:Shuyu Technology's this pipette is applicable to many fields such as scientific research, detection and monitoring, medical - related and education.
INQUIRY EMAIL

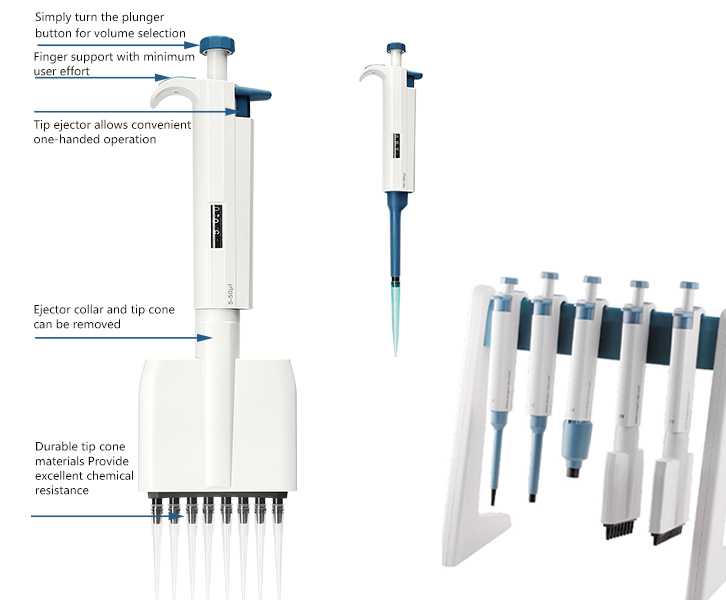

Features for TopPette

●Lightweight, ergonomic design with low force operation
●Digital display for clear volume setting visibility
●Volume range: 0.1μL to 10mL
●Easy calibration/maintenance (tools included)
●Reduces repetitive strain injury risk
●ISO8655 - calibrated, each pipette comes with individual test certificate
●Autoclavable lower section

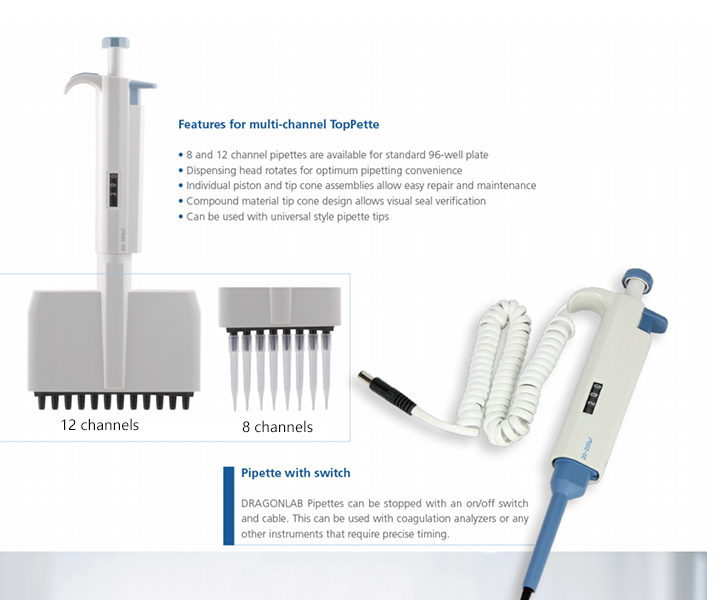

Features for multi-channel TopPette
●8/12-channel options for standard 96-well plates
●Rotating dispensing head for easy pipetting
●Individual piston & tip cone assemblies: easy repair/maintenance
●Compound material tip cone: visual seal check
●Compatible with universal pipette tips

Pipette with switch
DRAGONLAB Pipettes feature an on/off switch and cable for stopping. Usable with coagulation analyzers or other instruments needing precise timing.

Specifications

TopPette/ MicroPette / MicroPette Plus Mechanical Pipettes (Adjustable & Fixed Volume)

Single-channel Adjustable Volume Pipettes
Volume Range	Increment	Test Volume	Maximum permissible systematic error (Inaccuracy)		Maximum permissible random error (Imprecision)
Volume Range	Increment	Test Volume	%	μL	%	μL
0.1-2.5μL	0.05μL	2.5μL	2.50%	0.0625	2.00%	0.05
		1.25μL	3.00%	0.0375	3.00%	0.0375
		0.25μL	12.00%	0.03	6.00%	0.015
0.5-10μL	0.1μL	10μL	1.00%	0.1	0.80%	0.08
		5μL	1.50%	0.075	1.50%	0.075
		1μL	2.50%	0.025	1.50%	0.015
2-20μL	0.5μL	20μL	0.90%	0.18	0.40%	0.08
		10μL	1.20%	0.12	1.00%	0.1
		2μL	3.00%	0.06	2.00%	0.04
5-50μL	0.5μL	50μL	0.60%	0.3	0.30%	0.15
		25μL	0.90%	0.225	0.60%	0.15
		5μL	2.00%	0.1	2.00%	0.1
10-100μL	1μL	100μL	0.80%	0.8	0.15%	0.15
		50μL	1.00%	0.5	0.40%	0.2
		10μL	3.00%	0.3	1.50%	0.15
20-200μL	1μL	200μL	0.60%	1.2	0.15%	0.3
		100μL	0.80%	0.8	0.30%	0.3
		20μL	3.00%	0.6	1.00%	0.2
50-200μL	1μL	200μL	0.60%	1.2	0.15%	0.3
		100μL	0.80%	0.8	0.30%	0.3
		50μL	1.00%	0.5	0.40%	0.2
100-1000μL	5μL	1000μL	0.60%	6	0.20%	2
		500μL	0.70%	3.5	0.25%	1.25
		100μL	2.00%	2	0.70%	0.7
200-1000μL	5μL	1000μL	0.60%	6	0.20%	2
		500μL	0.70%	3.5	0.25%	1.25
		200μL	0.90%	1.8	0.30%	0.6
1000-5000μL	50μL	5000μL	0.50%	25	0.15%	7.5
		2500μL	0.60%	15	0.30%	7.5
		1000μL	0.70%	7	0.30%	3
2-10mL	0.1mL	10mL	0.60%	60	0.20%	20
		5mL	1.20%	60	0.30%	15
		2mL	3.00%	60	0.60%	12

8-channel Adjustable Volume Pipettes
Volume Range	Increment	Test Volume	Maximum permissible systematic error (Inaccuracy)		Maximum permissible random error (Imprecision)
Volume Range	Increment	Test Volume	%	μL	%	μL
0.5 - 10μL	0.1μL	10μL	1.50%	0.15	1.50%	0.15
		5μL	2.50%	0.125	2.50%	0.125
		1μL	4.00%	0.04	4.00%	0.04
5 - 50μL	0.5μL	50μL	1.00%	0.5	0.50%	0.25
		25μL	1.50%	0.375	1.00%	0.25
		5μL	3.00%	0.15	2.00%	0.1
50 - 300μL	5μL	300μL	0.70%	2.1	0.25%	0.75
		150μL	1.00%	1.5	0.50%	0.75
		50μL	1.50%	0.75	0.80%	0.4

12-channel Adjustable Volume Pipettes
Volume Range	Increment	Test Volume	Maximum permissible systematic error (Inaccuracy)		Maximum permissible random error (Imprecision)
Volume Range	Increment	Test Volume	%	μL	%	μL
0.5 - 10μL	0.1μL	10μL	1.50%	0.15	1.50%	0.15
		5μL	2.50%	0.125	2.50%	0.125
		1μL	4.00%	0.04	4.00%	0.04
5 - 50μL	0.5μL	50μL	1.00%	0.5	0.50%	0.25
		25μL	1.50%	0.375	1.00%	0.25
		5μL	3.00%	0.15	2.00%	0.1
50 - 300μL	5μL	300μL	0.70%	2.1	0.25%	0.75
		150μL	1.00%	1.5	0.50%	0.75
		50μL	1.50%	0.75	0.80%	0.4

Fixed Volume Pipettes
Volume Range	Increment	Test Volume	Maximum permissible systematic error (Inaccuracy)		Maximum permissible random error (Imprecision)
Volume Range	Increment	Test Volume	%	μL	%	μL
5μL	-	5μL	1.3%	0.065	1.2%	0.06
10μL	-	10μL	0.8%	0.08	0.8%	0.08
20μL	-	20μL	0.6%	0.12	0.5%	0.1
25μL	-	25μL	0.5%	0.125	0.3%	0.075
50μL	-	50μL	0.5%	0.25	0.3%	0.15
100μL	-	100μL	0.5%	0.5	0.3%	0.3
200μL	-	200μL	0.4%	0.8	0.2%	0.4
250μL	-	250μL	0.4%	1.0	0.2%	0.5
500μL	-	500μL	0.3%	1.5	0.2%	1.0
1000μL	-	1000μL	0.3%	3.0	0.2%	2.0
2000μL	-	2000μL	0.3%	6.0	0.15%	3.0
5000μL	-	5000μL	0.3%	15	0.15%	7.5
