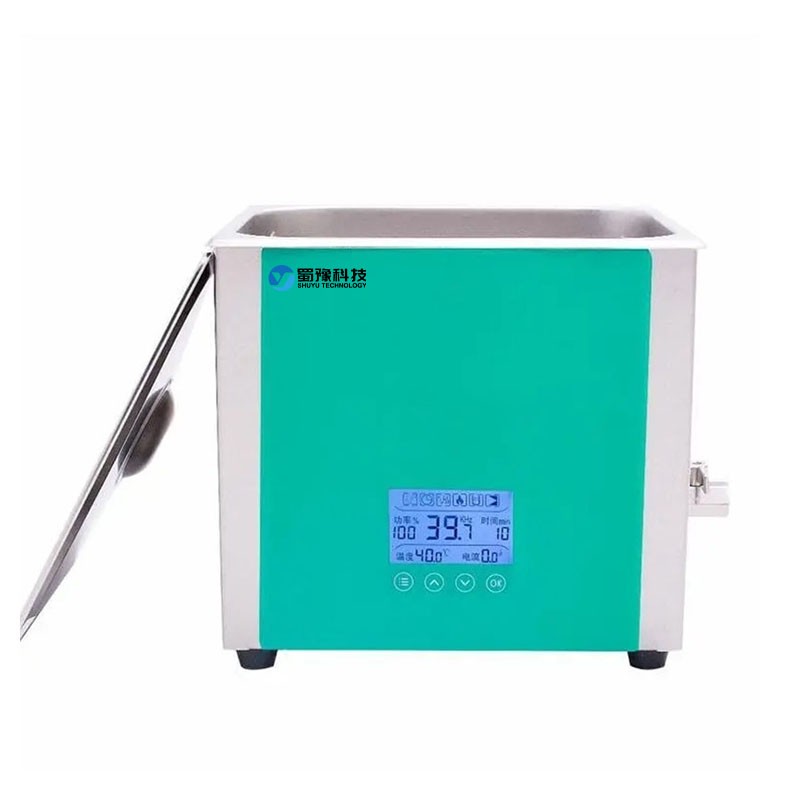

Ultrasonic Cleaning Machine XM-500UVF
- Category： Ultrasonic Cleaning Machine
- Brand:Shu Yu
- Name：Ultrasonic Cleaning Machine XM-500UVF
- Silent design. It is a super-quiet ultrasonic device designed to completely solve the pain points encountered by users during use. A frequency of 40kHz is a frequency with high universality.
Silent design. It is a super-quiet ultrasonic device designed to completely solve the pain points encountered by users during use. A frequency of 40kHz is a frequency with high universality.
System Features
●The inner tank is formed by one - time stamping of stainless steel SUS304, with no welded joints and good waterproof performance.
●The cleaning basket is formed by argon arc welding of stainless steel SUS304 mesh, improving the cleaning effect.
●The ultrasonic transducer of the cleaning machine has a transmitting power of 50/60W.
●The ultrasonic working time (1 - 999 minutes/always on) is adjustable at will, suitable for different occasions. Models of 6L and above are equipped with an exclusive customized drainage device, featuring a humanized design for quickly draining waste water after cleaning.
●The cleaning temperature is adjustable at will within the range of room temperature - 80°C.
●The outer shell of the cleaning machine is made of imported atomized stainless steel plate, which is beautiful and generous, and resistant to acid and alkali.
●Adopt high - quality imported core components, with high ultrasonic power conversion efficiency, strong power and good cleaning effect.
●Unique heat dissipation system makes the components work more stably.
●PTC heating ensures a good heating effect, and the PCB board undergoes moisture - proof and anti - corrosion treatment.
●Exclusively adopt three dial coders for time, temperature and power for convenient control. The LCD screen displays various function parameters, and three programs can be set by itself (patented technology).
●The exclusive panel adopts organic glass, which is beautiful and generous, and available in five colors.
●Exclusive stepless power adjustment function, applicable to different ultrasonic treatment fields, more in line with experimental requirements.
Technical Parameters
|
Model |
Rated Power Supply Voltage |
Overall Dimensions (Length × Width × Height, mm) |
Inner Dimensions of Cleaning Tank (Length × Width × Height, mm) |
Capacity (L) |
Ultrasonic Input Power (W) |
Ultrasonic Frequency (kHz) |
Heating Power (W) |
Time Range (Min) |
Temperature Range (°C) |
|
XM - 2200UVF |
220V |
264×162×242 |
240×145×100 |
3.5 |
100W |
40 |
200 |
1 - 999/Always On |
RT - 80 |
|
XM - 3200UVF |
220V |
325×175×292 |
300×150×150 |
6 |
150W |
40 |
200 |
1 - 999/Always On |
RT - 80 |
|
XM - 5200UVF |
220V |
328×266×292 |
300×240×150 |
10 |
200W |
40 |
300 |
1 - 999/Always On |
RT - 80 |
|
XM - 250UVF |
220V |
328×266×292 |
300×240×150 |
10 |
250W |
40 |
300 |
1 - 999/Always On |
RT - 80 |
|
XM - 300UVF |
220V |
328×266×292 |
300×240×150 |
10 |
300W |
40 |
300 |
1 - 999/Always On |
RT - 80 |
|
XM - 400UVF |
220V |
355×326×292 |
330×300×150 |
15 |
400W |
40 |
400 |
1 - 999/Always On |
RT - 80 |
|
XM - 500UVF |
220V |
530×328×292 |
500×300×150 |
22.5 |
500W |
40 |
500 |
1 - 999/Always On |
RT - 80 |
|
XM - 600UVF |
220V |
530×328×292 |
500×300×150 |
22.5 |
600W |
40 |
500 |
1 - 999/Always On |
RT - 80 |
|
XM - 700UVF |
220V |
530×328×292 |
500×300×150 |
22.5 |
700W |
40 |
500 |
1 - 999/Always On |
RT - 80 |
|
XM - 800UVF |
220V |
530×328×342 |
500×300×200 |
30 |
800W |
40 |
500 |
1 - 999/Always On |
RT - 80 |
