Water Temperature Box

Category： Heated Water Bath
Brand:Shu Yu
Model:H.S/DK-8D
Application:For use in colleges and universities, industrial and mining enterprises, scientific research institutions, etc. for precision constant temperature and auxiliary heating.
INQUIRY EMAIL

Description
This product is used for distillation drying, concentration, and constant - temperature heating of chemical drugs, biological manufacturing, serum biochemical experiments, constant - temperature culture, as well as boiling and disinfection of syringes and small surgical instruments.
Features

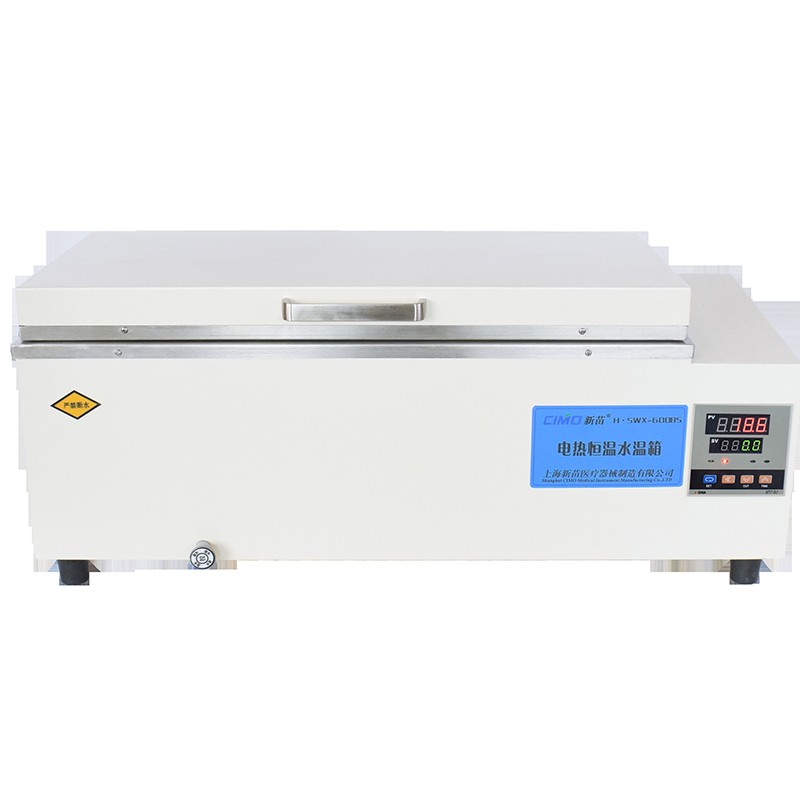

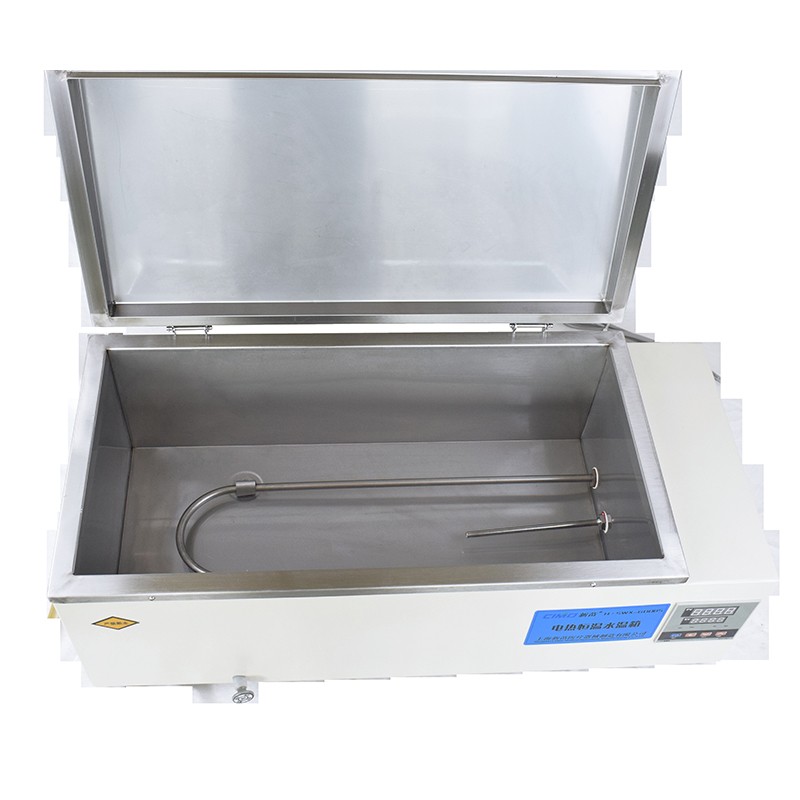

●The shell of the H.SWX series products is made of high - quality cold - rolled steel plate with spray molding. The inner tank and upper cover are made of stainless steel plate. High - quality thermal insulation materials are filled between the shell and the inner tank. The overall structure design is reasonable, and the shape is beautiful and generous.

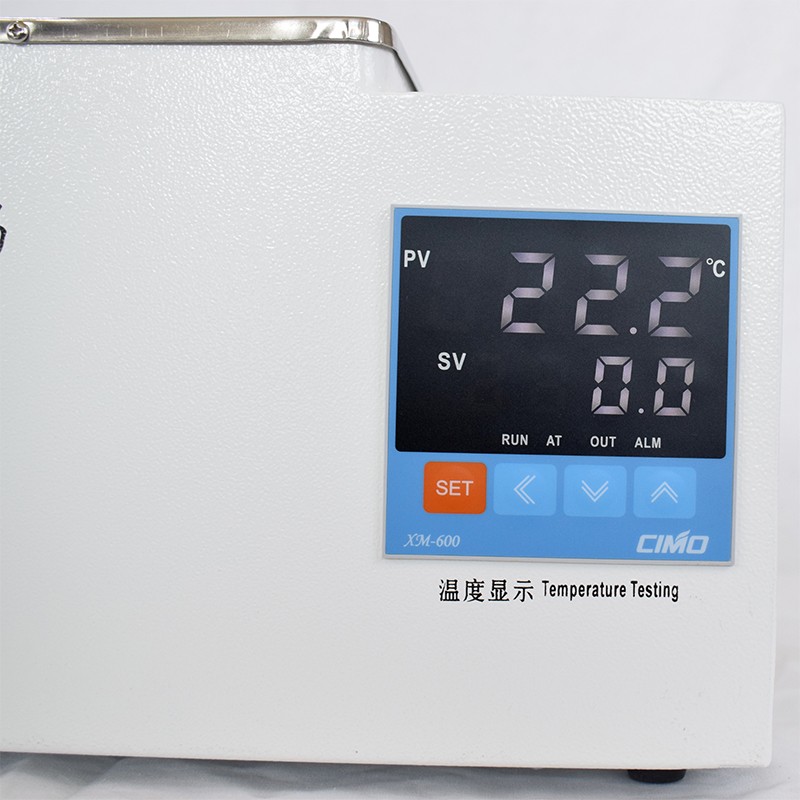

●The temperature control system adopts digital display microcomputer intelligent control. It has strong thermal sensitivity and high sensitivity, and can be adjusted arbitrarily within the use range. The heating device adopts a closed heater, which is directly immersed in water, with less heat energy loss.

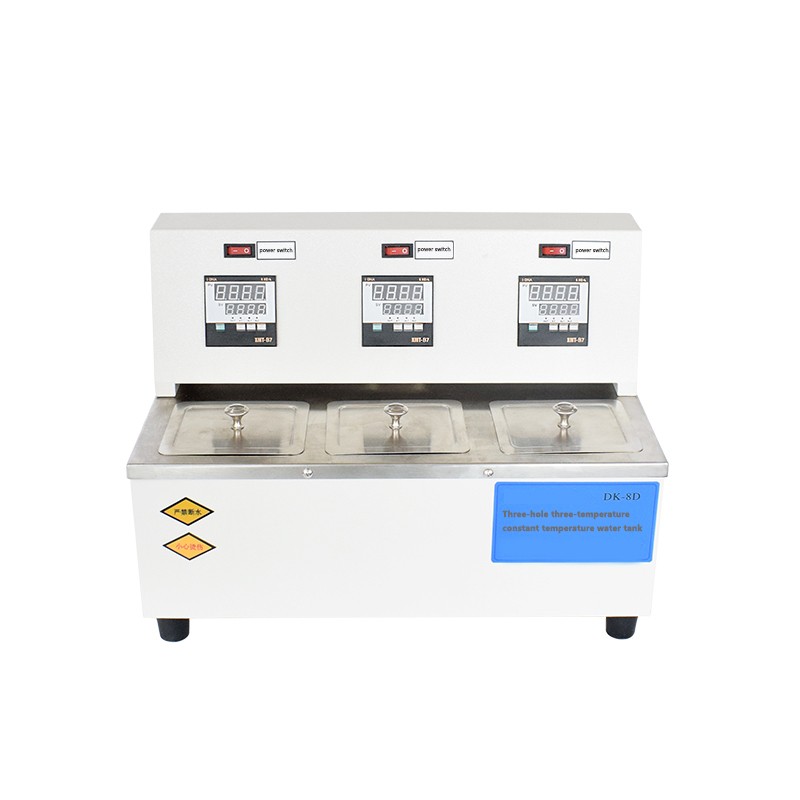

●The shell of the DK - 8D three - hole electric thermostatic water tank is made of high - quality cold - rolled steel plate with spray molding. The inner tank and top cover are made of stainless steel material, with a novel and beautiful shape; the three holes independently control the temperature; the temperature controller adopts a high - speed and high - performance CPU processing chip, a high - sensitivity and high - precision platinum resistance sensor, and has over - temperature acousto - optic tracking alarm, so that the samples can be reliably protected.

parameters

Serial No.	Item	Technical parameters
1	Product Model	H•SWX-420BS	H•SWX-600BS	DK-8D
2	Volume	11.3L	34.2L	2L×③
3	Heating Method	Closed stainless steel electric heater	Closed stainless steel electric heater	Closed stainless steel electric heater
4	Temp. Control Range	Room temp. +5℃ - 100℃	Room temp. +5℃ - 100℃	Room temp. +5℃ - 100℃
5	Temp. Resolution	0.1℃	0.1℃	0.1℃
6	Constant Temp. Fluctuation	±0.5℃	±0.5℃	±0.5℃
7	Working Time	1-9999 mins (timed or continuous)	1-9999 mins (timed or continuous)	1-9999 mins (timed or continuous)
8	Power	1000W	1500W	300W×③
9	Working Power	AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
10	Chamber Size	420x180x150mm	600x300x190mm	120x155x105mm×③
11	Overall Size	570x220x275mm	750x345x315mm	480x250x320mm

Optional Accessories
●Low water level alarm device
●Heating rate
Remarks
Performance parameters are tested under no - load conditions: ambient temperature 20°C, ambient humidity 50% RH.
