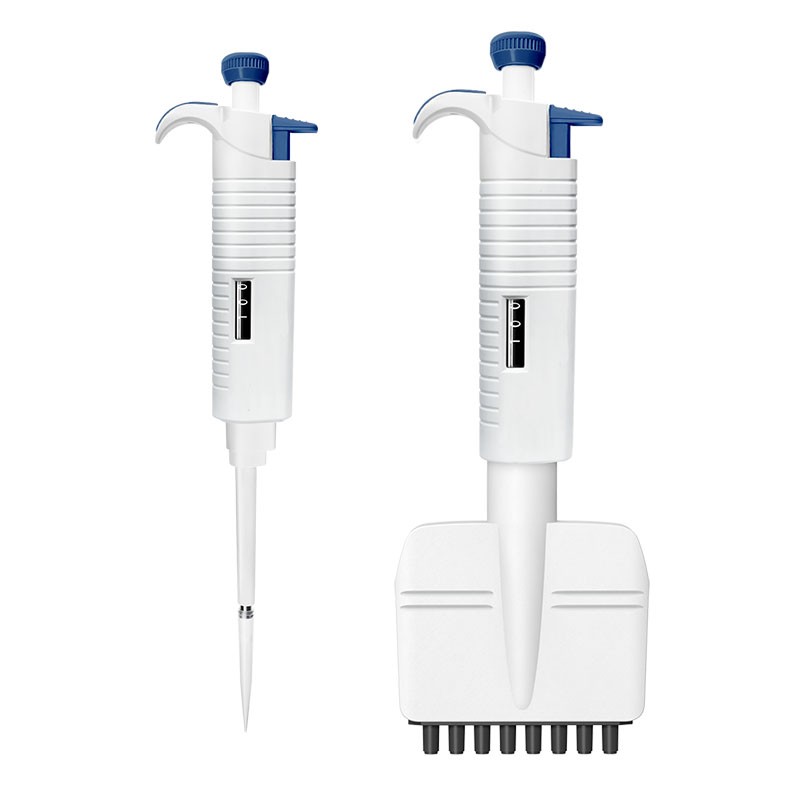

Multi-channel pipettor

Category： Pipette
Brand:Shu Yu
Name：Multi-channel pipettor (single/8/12 channel)
Application:Shuyu Technology's this pipette is applicable to many fields such as scientific research, detection and monitoring, medical - related and education.
INQUIRY EMAIL

Application Fields
Shuyu Technology's this pipette is applicable to many fields such as scientific research, detection and monitoring, medical - related and education.

Features
●Available as Fixed Volume and Adjustable Volume formats
●Streamlined shape design
●Comprehensive volume range from 0.1μL to 10mL
●Easy calibration and maintenance
●8 and 12 channel pipette options
●Dispensing head rotates for effortless pipetting convenience
●Individual piston and tip cone assembly
●Spring loaded tip cones for easy cleaning and maintenance
●Compound material-made tip cone secures high sealing performance

Specifications

Single-channel Adjustable Volume Pipettes
Volume Range	Increment	Test Volume	Error limits in accordance with ISO8655-2
Volume Range	Increment	Test Volume	Systematic Error		Random Error
μL	μL	μL	μL	%	μL	%
0.1–2.5	0.05	2.5	±0.0625	±2.50	±0.05	±2.00
		1.25	±0.0375	±3.00	±0.0375	±3.00
		0.25	±0.03	±12.00	±0.015	±6.00
0.5–10	0.1	10	±0.1	±1.00	±0.08	±0.80
		5	±0.075	±1.50	±0.075	±1.50
		1	±0.025	±2.50	±0.015	±1.50
2–20	0.5	20	±0.18	±0.90	±0.08	±0.40
		10	±0.12	±1.20	±0.04	±1.00
		2	±0.06	±3.00	±0.04	±2.00
5–50	0.5	50	±0.3	±0.60	±0.15	±0.30
		25	±0.225	±0.90	±0.15	±0.60
		5	±0.1	±2.00	±0.1	±2.00
10–100	1	100	±0.8	±0.80	±0.15	±0.15
		50	±0.5	±1.00	±0.2	±0.40
		10	±0.3	±3.00	±0.15	±1.50
20–200	1	200	±1.2	±0.60	±0.3	±0.15
		100	±0.8	±0.80	±0.3	±0.30
		20	±0.6	±3.00	±0.2	±1.00
50–200	1	200	±1.2	±0.60	±0.3	±0.15
		100	±0.8	±0.80	±0.3	±0.30
		50	±0.5	±1.00	±0.2	±0.40
100–1000	5	1000	±6	±0.60	±2	±0.20
		500	±3.5	±0.70	±1.25	±0.25
		100	±2	±2.00	±0.7	±0.70
200–1000	5	1000	±6	±0.60	±2	±0.20
		500	±3.5	±0.70	±1.25	±0.25
		200	±1.8	±0.90	±0.6	±0.30
1000–5000	50	5000	±25	±0.50	±7.5	±0.15
		2500	±15	±0.60	±7.5	±0.30
		1000	±7	±0.70	±3	±0.30
2000–10000Do not apply to MicroPette plus	100	10000	±60	±0.60	±20	±0.20
		5000	±30	±1.20	±15	±0.30
		2000	±60	±3.00	±12	±0.60

Fixed Volume Pipettes
Volume Range	Increment	Test Volume	Systematic Error		Random Error
μL	--	μL	μL	%	μL	%
5	--	5	±0.065	±1.3	±0.06	±1.2
10	--	10	±0.08	±0.8	±0.08	±0.8
20	--	20	±0.12	±0.6	±0.1	±0.5
25	--	25	±0.125	±0.5	±0.075	±0.3
50	--	50	±0.25	±0.5	±0.15	±0.3
100	--	100	±0.5	±0.5	±0.3	±0.3
200	--	200	±0.8	±0.4	±0.4	±0.2
250	--	250	±1.0	±0.4	±0.5	±0.2
500	--	500	±1.5	±0.3	±1.0	±0.2
1000	--	1000	±3.0	±0.3	±2.0	±0.2
2000	--	2000	±6.0	±0.3	±3.0	±0.15
5000	--	5000	±15	±0.3	±7.5	±0.15

8-channel Adjustable Volume Pipettes
Volume Range（μL）	Increment（μL）	Test Volume（μL）	Systematic Error（μL）	Systematic Error（%）	Random Error（μL）	Random Error（%）
0.5–10	0.1	10	±0.15	±1.50	±0.15	±1.50
		5	±0.125	±2.50	±0.125	±2.50
		1	±0.04	±4.00	±0.04	±4.00
5–50	0.5	50	±0.5	±1.00	±0.25	±0.50
		25	±0.375	±1.50	±0.25	±1.00
		5	±0.15	±3.00	±0.1	±2.00
50–300	5	300	±2.1	±0.70	±0.75	±0.25
		150	±1.5	±1.00	±0.75	±0.50
		50	±0.75	±1.50	±0.4	±0.80

12-channel Adjustable Volume Pipettes
Volume Range（μL）	Increment（μL）	Test Volume（μL）	Systematic Error（μL）	Systematic Error（%）	Random Error（μL）	Random Error（%）
0.5–10	0.1	10	±0.15	±1.50	±0.15	±1.50
		5	±0.125	±2.50	±0.125	±2.50
		1	±0.04	±4.00	±0.04	±4.00
5–50	0.5	50	±0.5	±1.00	±0.25	±0.50
		25	±0.375	±1.50	±0.25	±1.00
		5	±0.15	±3.00	±0.1	±2.00
50–300	5	300	±2.1	±0.70	±0.75	±0.25
		150	±1.5	±1.00	±0.75	±0.50
		50	±0.75	±1.50	±0.4	±0.80
