Digital rotary evaporator

Category： Rotary evaporator
Brand:Shu Yu
Name：RE100-S Digital rotary evaporator
Rotary evaporators are indispensable equipment in the evaporation, concentration, crystallization, drying, separation, solvent recovery and other processes in many fields. They are mainly used for the
INQUIRY EMAIL

Description

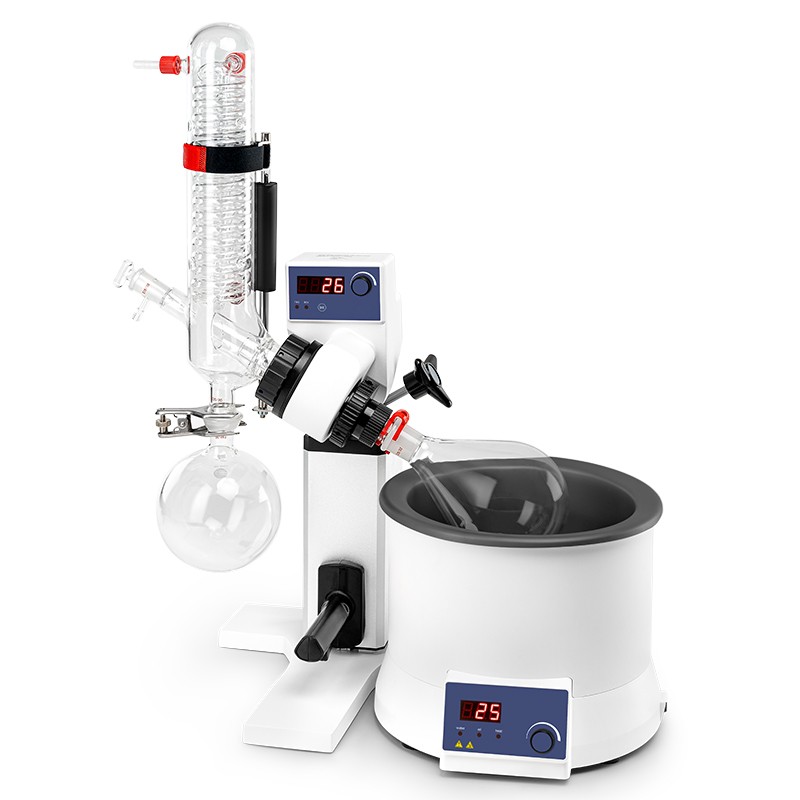

LED Digital Rotary evaporator is a basic chemical
laboratory instrument suitable for evaporation, distillation
and separation of chemicals. It can be used as a

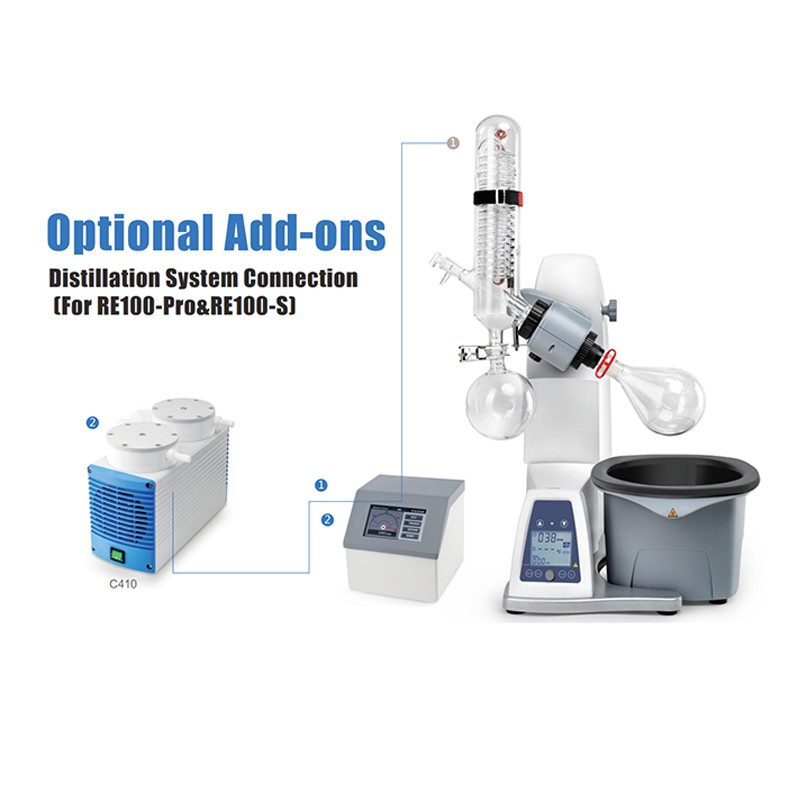

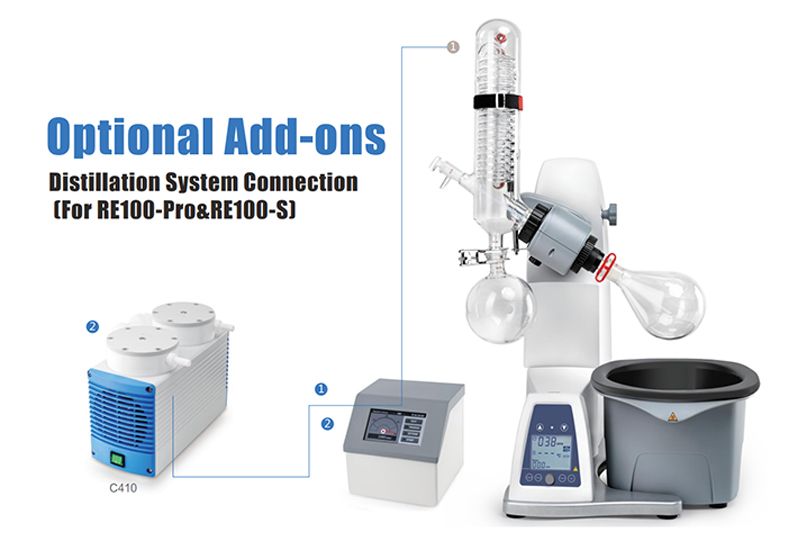

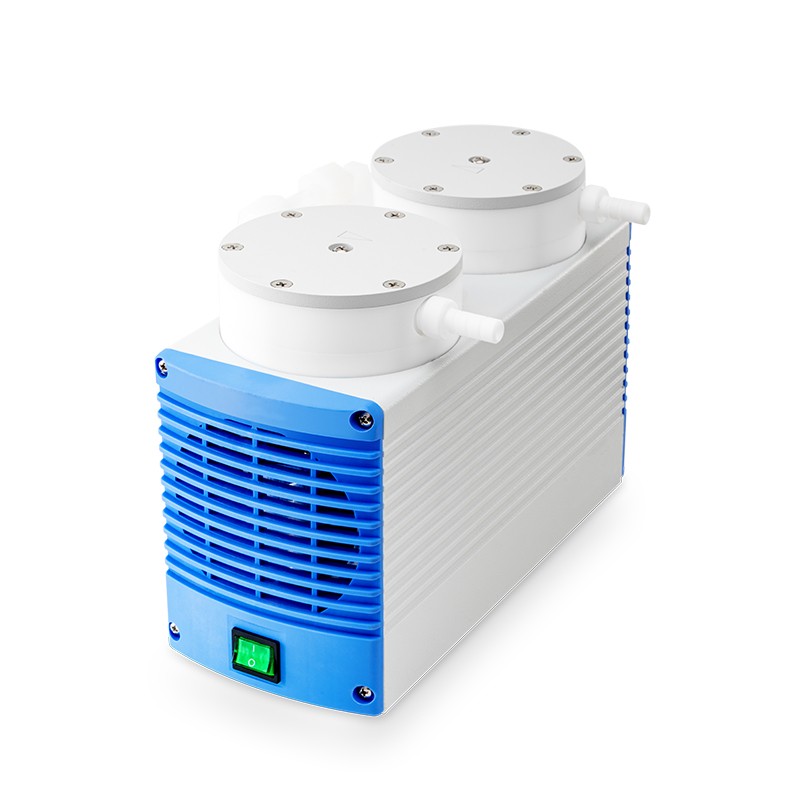

multifunctional system in combination with vacuum pump,

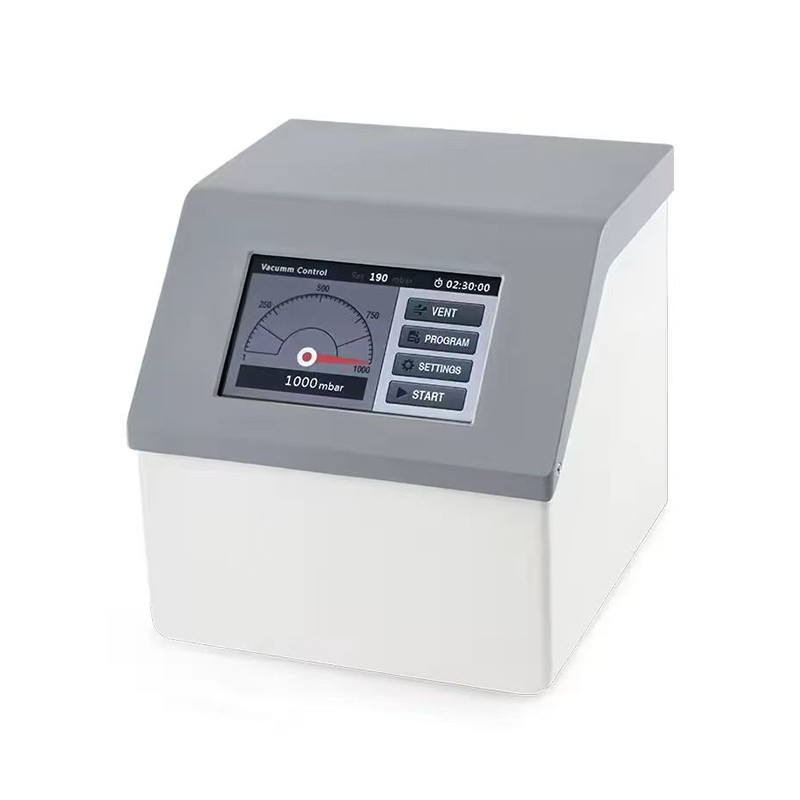

Vacuum Controller and low temperature circulators to
provide excellent distillation solutions in many laboratory
applications.

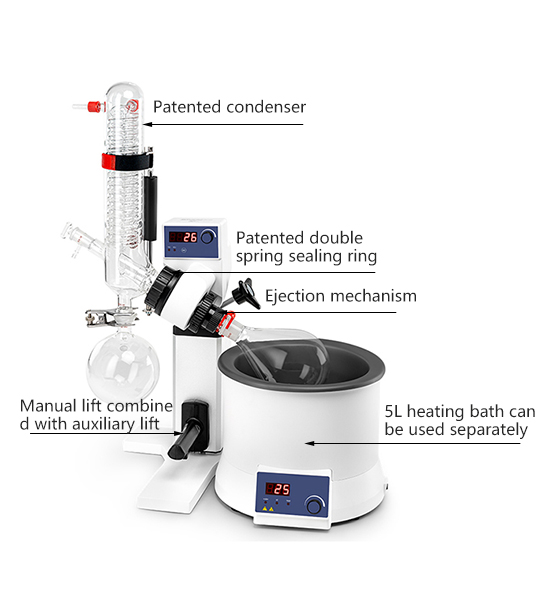

Features
●5L heating bath with a wide temperature range (room
temp.to180°C). Independent temperature control
makes it can be used separately. Water/oil heating
mode can be changed just through a switch
●Manual lift combined with auxiliary lift for precise
positioning of the glassware
PID control ensures high temperature accuracy at
±1°C (water)
●Overheating protection temperature at 220°C
●Boil-dry protection, automatically power off if heating
without water/oil in the heating bath
Speed range from 20 to 200rpm, timing interval
operation in clockwise and anticlockwise directions
for drying process
●Patented condenser (cooling surface 1200/1700cm2
for selection), speeding up the flow rate of liquid with
excellent cooling effect
●Ejection mechanism ensures easy exchange of
evaporating flask
●Adjustable immersion angle
●Patented double spring sealing ring which is made of
PTFE provides an excellent sealing performance

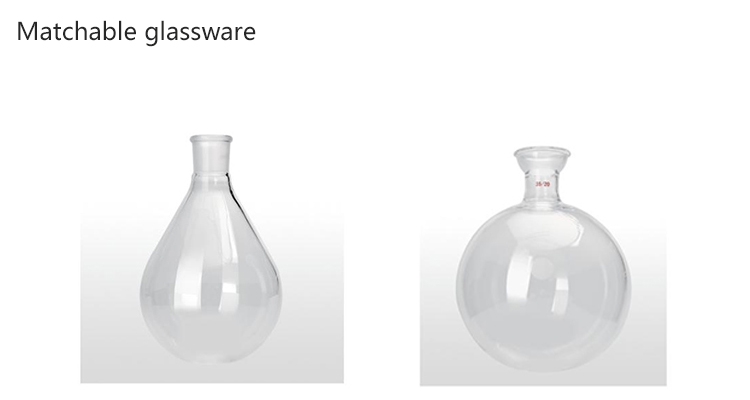

●Compatible with the entire range of RE100-Pro
glassware
●Optional glassware with explosion proof film available
●High temperature warning when above 50°C

Parameters

Specifications	RE100-S
Motor Type	Brushless DC motor
Speed Range	20 - 200rpm
Display	LED(speed, temperature, time)
Direction of Rotation	Clockwise and counterclockwise
Heating Temperature Range	Room temp. to 180℃
Control Accuracy	water: ±1℃; oil: ±3℃
Heating Power	1200W
Lift stroke	Manual 110mm + auxiliary 100mm
Interval Time Setting Range	1 - 999s
Dimension[D×W×H]	Main Unit: 440×320×450mm；Heating Bath: 300×300×240mm
Weight	Main Unit: 7kg；Heating Bath: 3kg
Permissible Ambient Temperature	5 - 40℃
Permissible Relative Humidity	80%RH
Protection Class	IP20
USB Interface	Yes
Voltage/Frequency	100 - 120/200 - 240V，50/60Hz
Power	1245W
