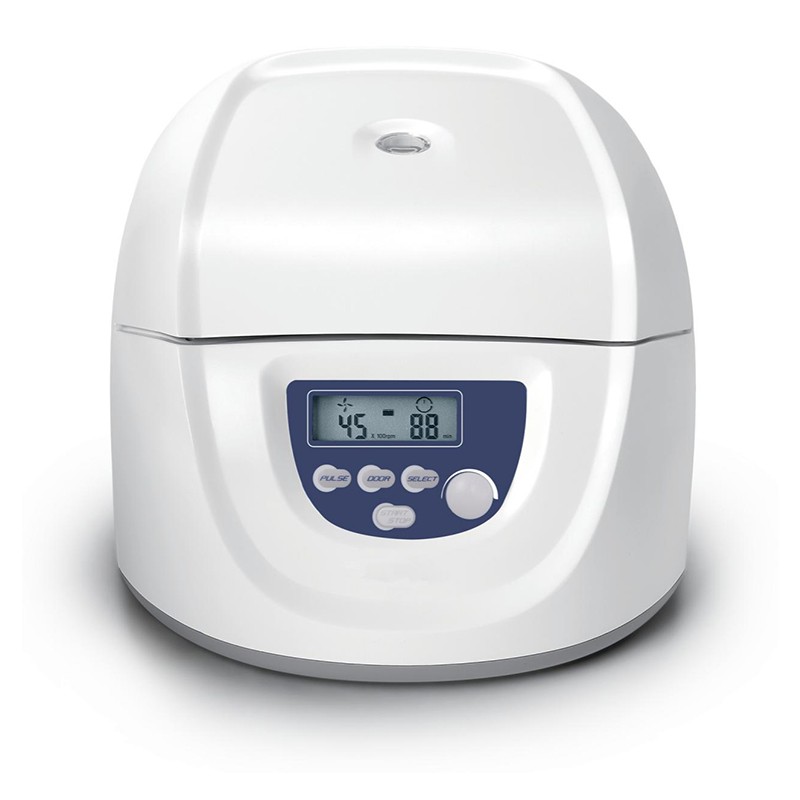

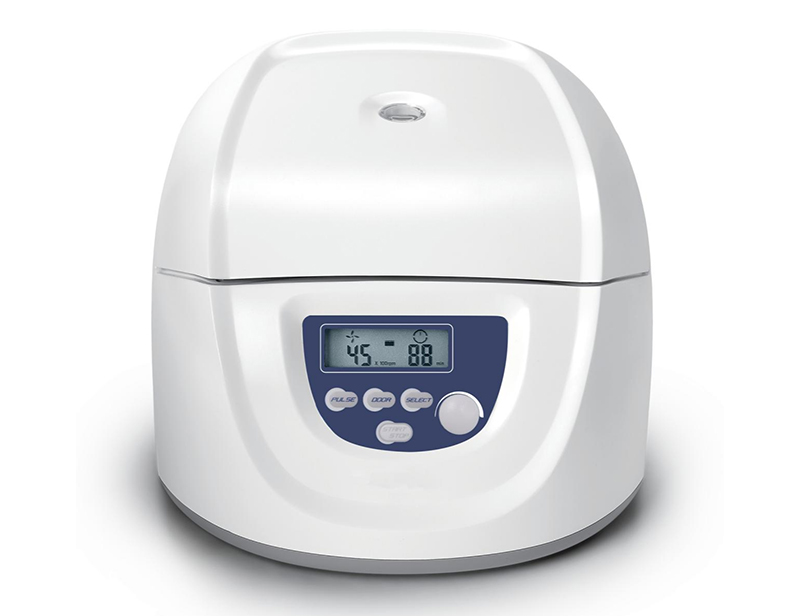

Low Speed Centrifuge
- Category： Low Speed Centrifuge
- Brand:Shu Yu
- Model:DM0412
- Application：used in applications from clinical to bioche mical for qualitative analysis of serum, plasma, blood, and urine.
DM0412 is ideal for separation of whole
blood components, such as serum, plasma,
buffy coat, red blood cells, as well as other
bodily fluids.
•Easy operation with intuitive menu and easy-to-read
display
•Speed can be set in RPM/RCF
•Maintenance-free brushless DC motor
•Quick spin function with press and hold pulse key
•Lid with electric lock and automatic release function
•Automatic lid-lock release after running
•Braking time 2 steps adjustable only for A6-50P rotor

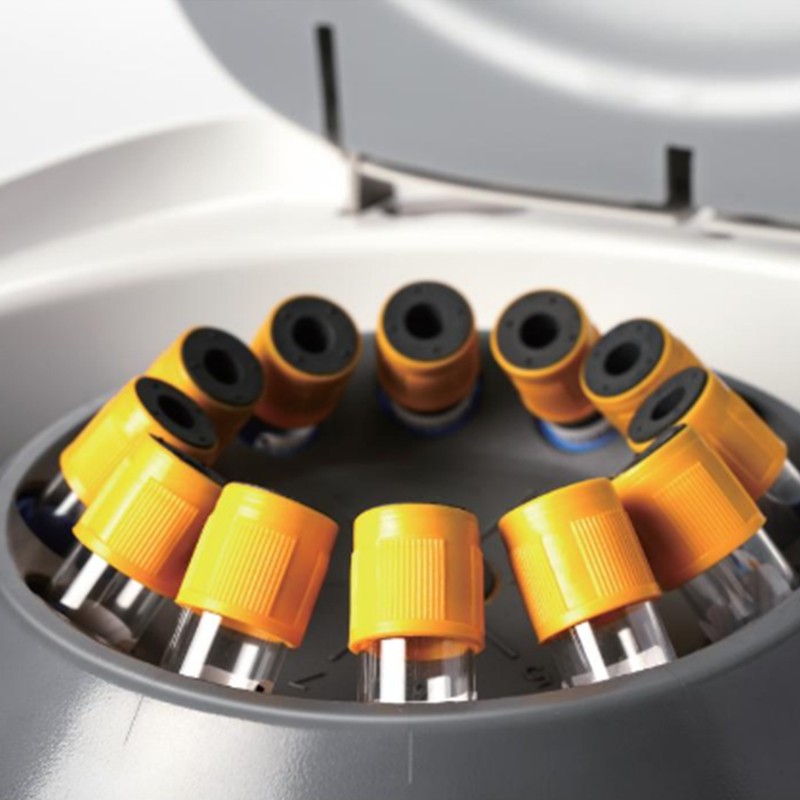

•High strength plastic rotor gives excellent balance to
guarantee stable working
•Dual protection housing particularly benefit for safe
running
•Gentle braking at low speeds with efficient separation
•CE marked, cTÜVus, and passed explosion-proof test
Applications
DM0412 is ideal for separation of whole
blood components, such as serum, plasma,
buffy coat, red blood cells, as well as other
bodily fluids.
parameters
|
Specifications |
DM0412 |
|
Speed Range |
300-4500rpm,increment: 100rpm |
|
Max. RCF |
2490×g |
|
Speed accuracy |
±20rpm |
|
Rotor type |
A12-10P, A6-50P |
|
Run Time |
30sec-99min HOLD (Continuous operation) |
|
Motor |
Brushless DC motor |
|
Display |
LCD |
|
Safety Devices |
Door interlock, Overspeed detector; Automatic internal diagnosis |
|
Acceleration/Braking time |
A12-10P: 20s ↑ 13s ↓A6-50P: 20s ↑ 20 s /90 s ↓ |
|
Power Requirements |
Single-phase,100V-240V, 50Hz/60Hz, 3A 70W |
|
Dimension[W×D×H] |
354 × 304 × 215mm |
|
Weight |
6kg |
|
Certification |
CE cTÜVus |
|
Advanced features |
Speed/RCF switch; Short-time run function; sound-alert function |
