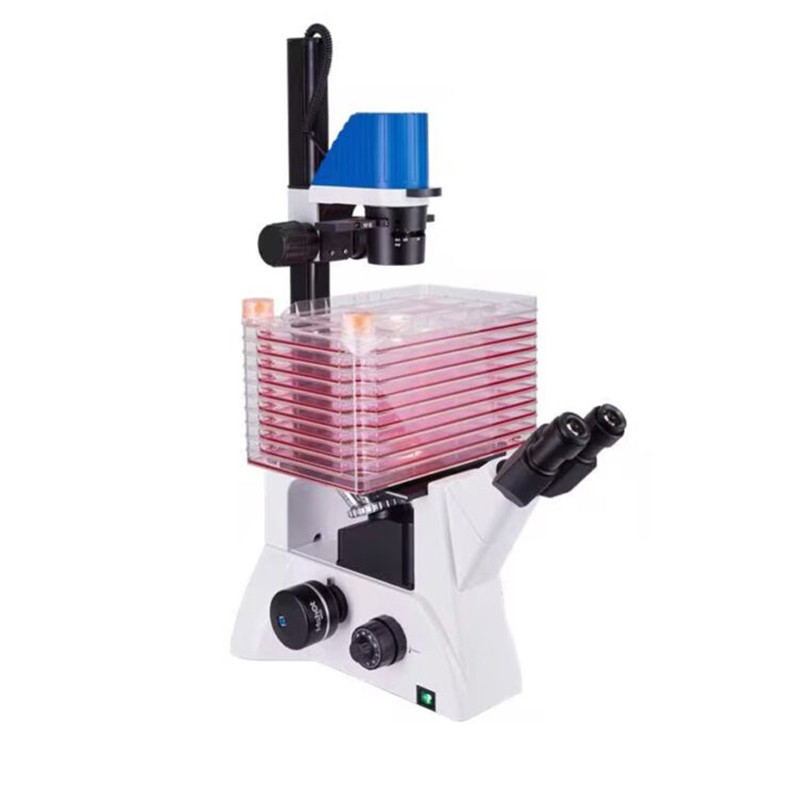

Cell Factory Microscope MI52-CF
- Category： Biological microscopes
- Brand:Shu Yu
- MI52-CF adopts an excellent infinity optical system, which can realize bright field and phase contrast observation. It can be used in scientific research institutes, universities, medical and health,
- INQUIRY EMAIL
It adopts an excellent infinity optical system, which can realize bright field and phase contrast observation. Users can observe non-contaminated cultured cells on high petri dishes
or cylindrical flasks, or conduct microscopic observations of cell tissues and transparent liquid tissues, dynamic microscopic observations of cultured tissues in petri dishes,
or microscopic observations of “cell factories” observe. It can be used in scientific research institutes, universities, medical and health, biomedicine, inspection and quarantine,
agriculture, animal husbandry and dairy industries.
Feature
1.Wide field of view eyepiece in high eyepoint:
Observation is more comfortable. Standard interface, compatible with camera sensors within 1 inch.
2.High quality objective lens
Long working distance plan achromatic objective lens, high quality imaging.
3.Adjustable transmitted light:
The height of the transmitted light source is adjustable, and the cell factory can be placed within 10 layers.

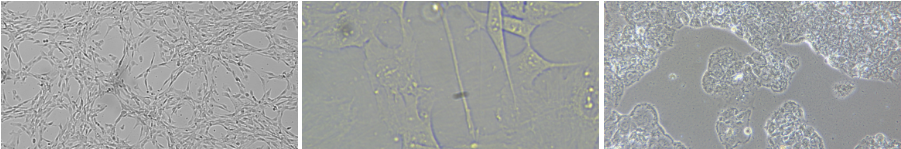

Sample images:
Specifications
|
Parts |
Specification |
Standard |
Optional |
|
Eyepiece |
Wide field SWF10X , FN 22mm, high eyepoint, one diopter adjustable |
• |
|
|
Centering telescope |
• |
|
|
|
Observation tube |
45˚ inclined, interpupillary distance 53~75mm |
• |
|
|
Nosepiece |
Quintuple nosepiece,ball bearing with anti fungus device |
• |
|
|
Objectives |
Long working distance plan objective lens M-UPLFLN4X/0.13 working distance: 17.15mm |
• |
|
|
Infinity long working distance plan achromatic objective lens Plan40X/0.58 working distance: 2.5mm |
• |
|
|
|
Infinity long working distance plan achromatic phase contrast objective Plan10X/0.25 PH working distance: 9.3mm |
• |
|
|
|
Infinity long working distance plan achromatic phase contrast objective Plan20X/0.45 PH working distance: 5mm |
• |
|
|
|
Long working distance plan objective Plan10X/0.25, working distance: 4.1mm |
|
• |
|
|
Long working distance plan objective Plan20X/0.45, working distance: 5mm |
|
• |
|
|
Long working distance plan objective Plan40X/0.58, working distance: 2.5mm |
|
• |
|
|
Long working distance 4X plan phase contrast objective (PH) |
|
• |
|
|
Long working distance semi-apochromatic plan objective 4X/10X/20X (FL) |
|
• |
