Advanced Flow Cytometry HIV Detection CD4 Cell Counter FCM Flow Cytometer

Advanced Flow Cytometry HIV Detection CD4 Cell Counter FCM Flow Cytometer

Category： Flow Cytometer
Brand:Shu Yu

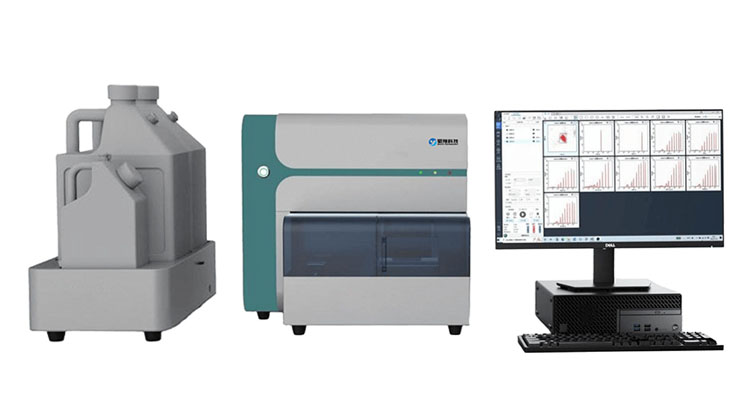

Name：Dual-laser six-color/Triple-laser eight-color flow cytometer
Fcm Flow Cytometry // cd3 Cd4 Counter System Flow Cytometry Hiv Detection System Flow Cytometry
INQUIRY EMAIL

Applications
●Analyze the expression of cell surface and intracellular molecules
●ldentify and characterize different cell types inheterogeneous cell populations
●Analyze cell size and volume

Features
●Simple and stable optical path design with fiber opticconduction makes the instrument more stable and sensitive.
●Excellent signal resolution (CV<2%) guarantees moreaccurate and reliable detection data.
●Adopting high-precision loading pump with volumetricabsolute counting function to ensure the accuracy ofvolumetric absolute counting, and at the same timecompatible with microsphere absolute counting.
●High-throughput autosampling system, compatible with40 tubes/plate or 96-well plate.
●Exclusive patented mixing device ensures homogeneityof test samples and improves the accuracy andreproducibility of test data.
●Automatic cleaning of injection needle can be set togreatly reduce the cross contamination between samples
●Automatic liquid level monitoring function, real-timemonitoring of the status of the instrument, real-timewarning, automatic calibration function of the sampler.
●One-key system maintenance process, convenient forinstrument maintenance and repair.

Parameters

Configuration	Details
Laser	Dual laser six-color: 405nm violet laser, 488nm blue laser, 638nm red laser Triple laser eight-color: Laser with semiconductor temperature control (TEC) module, using three-dimensional space excitation.
Fluorescence Detector	The latest APD detector with high photoelectric conversion efficiency is adopted to improve the stability of the optical path transmission, reduce the loss of optical signals and improve the collection rate of optical signals.
Fluorescence Detection Limit	FITC<30MESF; PE<20MESF
Fluorescence Linearity	>0.98
Instrument Resolution	CV<2%
Forward Lateral Detection Limit	FSC≤0.5μm; SSC≤0.2μm
Carrying Contamination Rate	≤0.09%
Minimum Sample Volume	10μL
Analyzing Speed	50000events/sec
Sample Flow Rate	15, 30, 60μL/Min; 15 - 260μL/Min arbitrary adjustment
Absolute Counting Function	Compatible with volumetric method & microsphere method
Sampling Methods	High-throughput and single-tube sampling
Supported Tube Types	Standard flow tubes (12x75mm, 5ml), 96-well plates (flat-bottomed, U-shaped, V-shaped), Centrifuge tubes (1.5ml, conical-bottomed)

Standard Channel Configuration and Applicable Fluorescent Dyes

Excitation Wavelength	Fluorescence Channel	Fluorescent Dye
405nm	450/50BP	mFluor450, Pacific Blue, BV421
405nm	530/30BP	mFluor540, Krome Orange, BV510
488nm	530/30BP	iFluor488, FITC, CFSE, GFP,Fluo-3, Alexa Fluor 488
488nm	576/31BP	PE, PI
488nm	690/50BP	PE-Cy5, PC5, PC5.5, PerCP, PerCP-Cy5.5, PI, BB700
488nm	775/50BP	PE-Cy7, PC7
638nm	660/20BP	iFluor647, APC, Alexa Fluor 647,eFluor 660
638nm	775/50BP	APC-iFluor700, iFluor700, APC-Cy7,APC-H7, APC-Alexa Fluor 750,APC-eFluor 780

Immunization-Related Projects

No.	Project Name	No.	Project Name
1	Lymphocyte Subpopulation Testing	8	Ankylosing Spondylitis Test (B27 Test)
2	Regulatory T Cell Assay	9	Basophil Test (Allergy Related)
3	Lymphoid Fine Subpopulation Test	10	Sequestering Antibodies
4	Cytokine (Plasma and Cellular) Assays	11	Sperm Nuclear Integrity Test
5	CTL, NK Cell Function Assays	12	Mesenchymal Stem Cell Testing
6	Neutrophil CD64 Index	13	Dendritic Cell Assay
7	Immunotargeted Therapeutic Site Monitoring	14	Myeloid-Derived Suppressor Cell Assay

Hematology-Related Programs

No.	Project Name	No.	Project Name
1	Immunophenotyping of Acute Leukemia	8	Cerebrospinal Fluid Immunophenotyping
2	B-Cell Lymphoma Immunophenotyping	9	PNH Test
3	NK/T-Cell Lymphoma Immunophenotyping	10	CD34 Hematopoietic Stem Cell Count
4	Myeloma Immunophenotyping	11	Platelet Activation Function Test
5	Myelodysplastic Syndrome (MDS) Testing	12	Platelet Membrane Surface Glycoprotein Assay
6	Abnormal Lymphoproliferative Disorders Test	13	Post-transplantation Immune Function Monitoring
7	Leukemia Microscopic Residual Lesion Monitoring

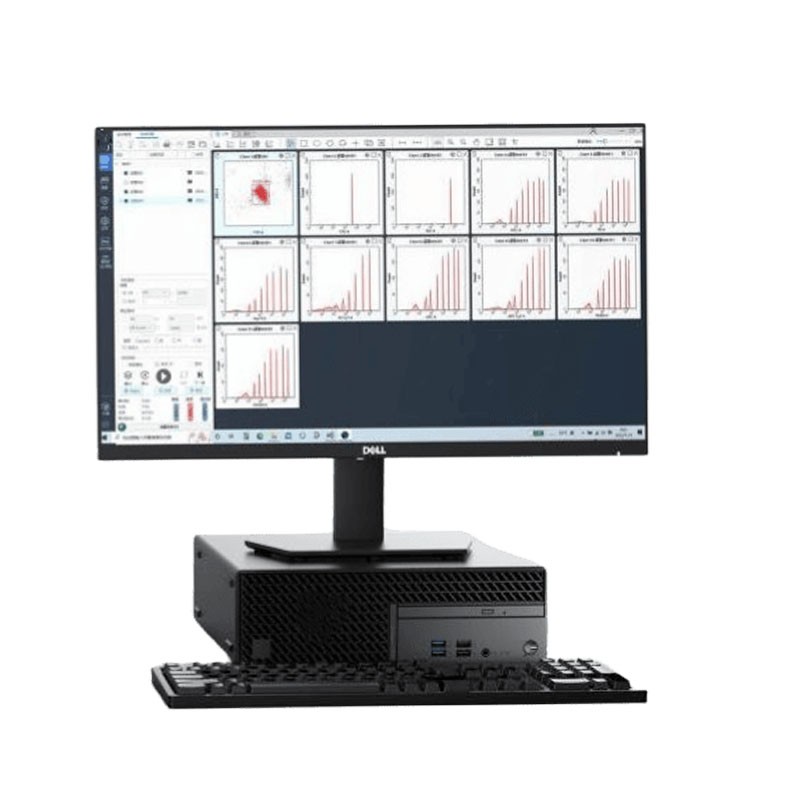

Software System
●Real-time monitoring of instrument status, real-time alarm.
●Support the fast drag threshold of the map analysis area, automatic circle gate function.
●Multiple fluorescence compensation methods, support online and offline compensation, automatic compensation, fast compensation, compensation matrix.
●Support batch output of FCS, CSV, PDF files.
●Seamlessly connect with laboratory LIS system to realize two-way transmission and batch uploading of results.
●Automate the QC process, quickly generate QC reports, and also comprehensively monitor the status of instruments through Levey-Jennings QC charts.
●Multiple users with different privileges can be established, and each user's experiment list exists separately and generates operation logs individually.
