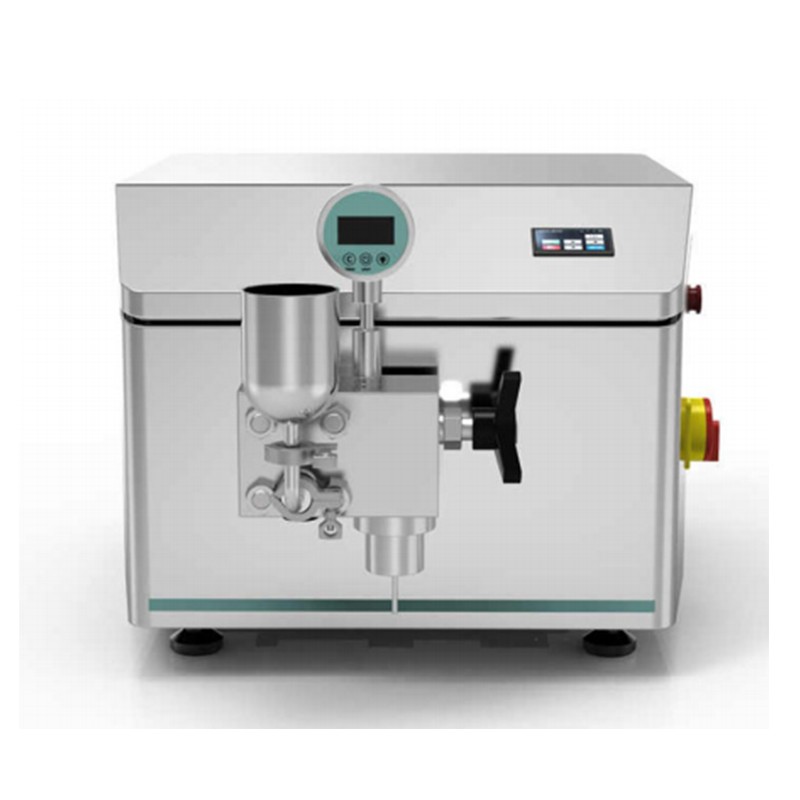

High Pressure Homogenizer
- Category： Planetary Ball Mill
Homogenization is to make the suspension (or emulsion) system in the dispersion of particles, homogenization of the
treatment process, this treatment at the same time play a role in reducing the scale of the dispersion and improve the
uniformity of distribution of the dispersion.
Application Areas
●Preparation of fat granules, drug-carrying emulsions, liposomes,
nanosuspensions and microcapsules for the pharmaceutical industry.
●Cell fragmentation, extraction and homogenization of intracellular
substances for bioengineering products.
●Production and preparation of carbon nanotubes, graphene,
conductive and resistive pastes for fine chemicals.
●Homogenization and dispersion of lipid nanoparticles in personal
care products.
●Homogenization and emulsification of food and industrial products
to improve product stability.
Working Principle
When the high pressure pump head assembly works, the material will be sucked into the pump cavity through the check valve, and the
fluid material will be rowed into very high pressure between the pump cavity and the homogenizing valve seat under the force of the
plunger.
High-pressure material through the homogenizing valve assembly, resulting in the following three homogenizing effects:
① Shear effect, the gap between the homogenizing valve seat and spool is very small, and it produces shear effect on the material
particles.
② cavitation effect, high-speed extrusion of the material instantaneous loss of pressure, and ultimately achieve the purpose of
homogenizing the material.
③Collision effect, high-speed extrusion of materials with very high speed impact to the collision ring
Collision, high-speed extruded materials with very high speed impact on the collision ring, resulting in impact crushing
Product Features
●Structural features: single ceramic plunger drive, precise control of discharge flow. Optional plunger lubrication device, longer
sealing life.
●Homogenizing pressure: Maximum design pressure 2000bar/200MPa/29000psi, use sanitary digital diaphragm pressure gauge.
●Homogenizing flow rate: minimum sample size 15ml, especially suitable for expensive pharmaceutical production. Automatic
suction without feeding equipment.
●Component technology: homogenizing valve seat assembly can be made of zirconia, tungsten steel, diamond, stellite, etc., single/
double-sided processing, double-sided use, double the service life. The secondary valve disperses the emulsification to make the
material distribution more uniform and consistent.
●Energy-saving technology: equipment frequency control, access to 220V utility can be used, imported brand components equipment
more stable, lower energy consumption, higher energy efficiency ratio.
Technical Paramete
|
Model |
JXNANO-5 |
JXNANO-15 |
JXNANO-30 |
GSL-5 |
GSL-15 |
GSL-30 |
|
Design Flow Rate (L/H) |
5~8 |
12~15 |
25~30 |
5~8 |
12~15 |
25~30 |
|
Design Maximum Pressure(MPa/bar/psi) |
200/2000/29000 |
200/2000/29000 |
150/1500/21750 |
200/2000/29000 |
200/2000/29000 |
170/1700/24650 |
|
Operating Pressure (MPa/bar/psi) |
180/1800/26100 |
180/1800/26100 |
120/1200/17400 |
180/1800/26100 |
180/1800/26100 |
150/1500/21750 |
|
Operation Mode |
Pushbutton |
Pushbutton |
Pushbutton |
Touch screen/Keypad |
Touch screen/Keypad |
Touch screen/Keypad |
|
Voltage(V) |
220 |
220 |
220 |
220 |
220 |
220 |
|
Plunger quantity (pcs) |
1 |
1 |
1 |
1 |
1 |
2 |
|
Rated power(KW) |
1.5 |
2.2 |
2.2 |
1.5 |
2.2 |
3 |
|
Main Functions |
Homogenization, wall-breaking, refinement (optional chiller temperature control) |
Homogenization, wall-breaking, refinement (optional chiller temperature control) |
Homogenization, wall-breaking, refinement (optional chiller temperature control) |
Homogenization, wall-breaking, refinement (optional chiller temperature control) |
Homogenization, wall-breaking, refinement (optional chiller temperature control) |
Homogenization, wall-breaking, refinement (optional chiller temperature control) |
|
Minimum processing capacity(mL) |
15 |
25 |
45 |
15 |
15 |
45 |
|
Product process viscosity |
2000cp |
2000cp |
2000cp |
2000cp |
2000cp |
2000cp |
|
Maximum feed particle size |
≤100μm |
≤100μm |
≤100μm |
≤100μm |
≤100μm |
≤100μm |
|
Working Pressure Display |
Pressure gauge |
Pressure gauge |
Pressure gauge |
Pressure sensor (7-inch touch screen/digital display) |
Pressure sensor (7-inch touch screen/digital display) |
Pressure sensor (7-inch touch screen/digital display) |
|
Control mode |
Manual operation |
Manual operation |
Manual operation |
Manual operation |
Manual operation |
Manual operation |
|
Maximum product feed temperature |
90℃ |
90℃ |
90℃ |
90℃ |
90℃ |
90℃ |
|
Weight (KG) |
110 |
120 |
150 |
140 |
140 |
/ |
