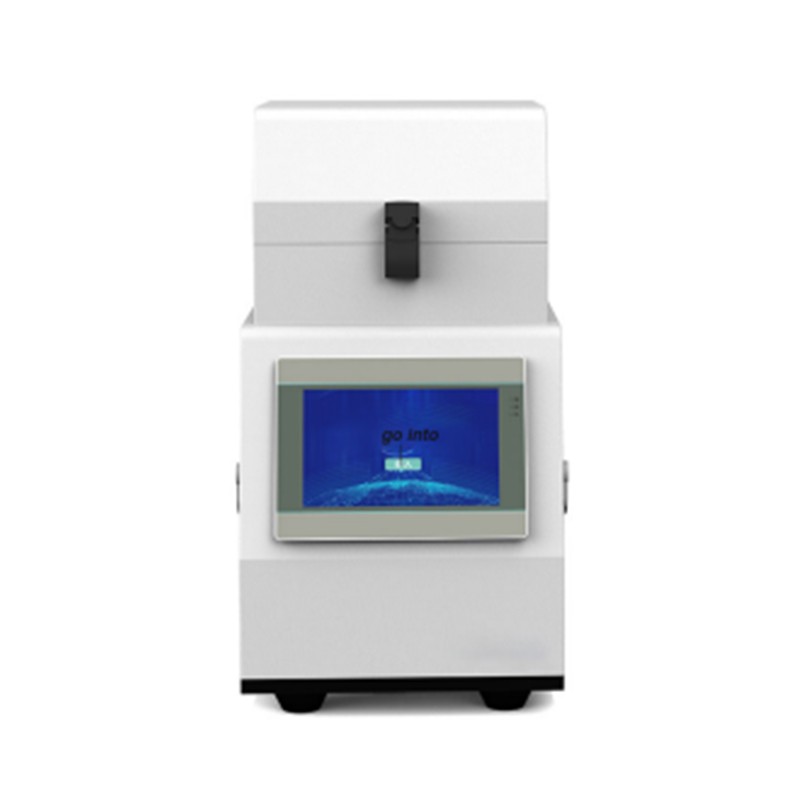

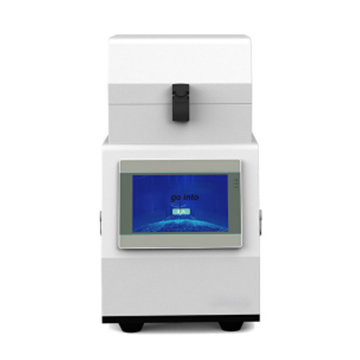

High Speed Tissue Grinder
- Category： Planetary Ball Mill
- Brand:Shu Yu
- Name：High Speed Tissue Grinder
- Application： Leaves, animal and plant tissues, microorganisms, hair, etc
Tiss-24/48 High Speed Tissue Sample Grinder adopts a special
vertical up and down one-piece vibration mode, which grinds the
sample through the high-frequency reciprocating vibration, impact,
and shear of the grinding beads. During the grinding process, the
high throughput makes it consistent and reproducible, and its
excellent performance can be competent for most of the sample pretreatment tasks with no cross contamination during the process.
Working Principle
High-speed tissue sample grinder adopts a special vertical up and down one vibration mode, through the grinding beads
(zirconia beads, stainless steel beads, chrome steel beads, tungsten carbide beads, quartz sand, etc.) in the grinding tube or
stainless steel tank in high-frequency reciprocating vibration, impact, shear and extrusion force on the sample to be ground,
Working Principle
crushed.
Key Benefits
●Higher number of operations with better results: efficient and fast working can process up to 2 ml x 48 samples in 1
minute saving time and labor, with low inter-batch and intra-batch variations. Higher specific activity of extracted proteins
and longer nucleic acid fragments.
●Good stability: the upper and lower integrated vibration mode, grinding more fully, better stability.
●No cross-contamination: the sample tube is in a fully closed state during the crushing process, avoiding crosscontamination between samples and external contamination
●The instrument can rotate only when the safety door is closed, if the safety door is opened during the process, it will stop
automatically. There is a special emergency stop button to prevent accidents.
●Easy to operate: humanized operation interface, built-in program controller, can be set for grinding time, rotor vibration
frequency and other parameters
●Adopt brushless silent original pulse type motor to drive the generating system, stable performance.
Technical Paramete
|
Fields of application |
Tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, oscillation |
|
Simultaneous processing of 24/48 samples in 15 seconds, including liquid nitrogen freezing adapters for 12- and 24-position samples |
|
|
Compatible sample volumes |
24*(0.2-0.5mL)/242mL/482mL can be customized with various grinding tubes |
|
Feed size |
No requirement, adjustable according to adapter |
|
Fastening device with automatic center positioning |
Yes |
|
Discharge particle size |
~5μm |
|
Homogenizing speed |
0-70Hz/s |
|
Working time |
0sec-9999sec, user settable |
|
Acceleration and deceleration |
Higher/lower speeds within 2 sec |
|
Noise level |
<65DB |
|
Grinding Method |
Wet grinding, dry grinding, low-temperature grinding available |
|
Dimension |
260380495mm |
