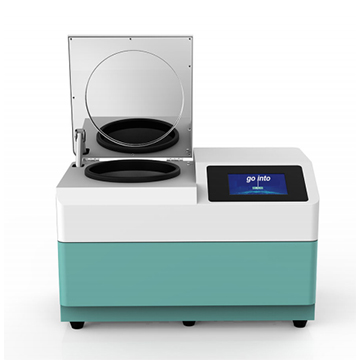

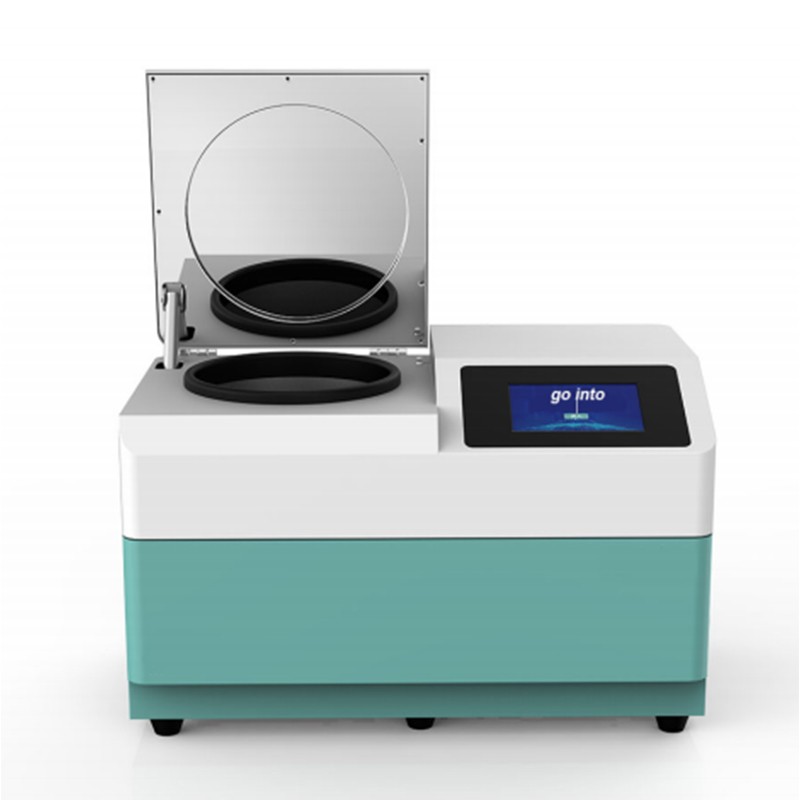

Three-dimensional Centrifugal Freezer Grinder

Category： Planetary Ball Mill
Brand:Shu Yu
Name：JXCL-6K
Application：It is widely used in various industries such as biomedicine, agriculture, forensics, public security, geology, chemical industry, RoHS, toys, environment, quality control, and colleges an
INQUIRY EMAIL

Product Overview
JXCL-6K three-dimensional centrifugal freezing and grinding instrument is a grinding instrument with the function of freezing,
grinding and centrifugal three-dimensional integration. In a short time can be all kinds of animal and plant tissues (the main soil,
fungi, cells, paleontological specimens, hair and other samples for cell crushing and homogenization. It can effectively prevent
ngn stop the degradation of target substances, retain the activity of target substances, and facilitate the extraction and
purification of DNA, RNA and protein of subsequent samples.

Operating Principles
●Place the sample and grinding balls into the grinder
(equipped with a grinding jar or Centrifuge tube/adapter).
●Under the action of high-frequency oscillation, the
grinding balls are impacted and rubbed back and forth at
high speed in the grinder, which can crush, homogenize
and break the cell wall of all kinds of samples in a very
short time.
●Quickly release the original DNA, RNA and protein,
etc., which is convenient for subsequent extraction and
purification.

Scope of Application
●Suitable for grinding and crushing of food and
pharmaceutical composition analysis and testing
●Suitable for grinding and crushing various plant tissues
(roots, stems, leaves, flowers, fruits, seeds, etc.) and fungi,
bacteria and other samples.
●Suitable for grinding and crushing all kinds of animal
tissues, including brain, heart, lung, stomach, liver, thymus
, kidney, intestines, lymph nodes, muscles, bones and other
samples.

Technical Paramete

Parameter	Specification
Time Setting	1-999s
Sample size	242ML / 125ML
Oscillation speed	1-21M/S
Temperature range	-50 degrees Celsius to room temperature
Centrifugal speed	0-600RPM
Program Groups	20
Lid opening method	Intelligent start
Anti-pinch function	Yes
Automatic Center Positioning Fastening Device	Yes
Safety protection	Work safety lock
Noise level	<54DB
Power	800w
Voltage	AC 220V/50-60Hz
Overall Dimension	685400500MM
Weight	84KG
