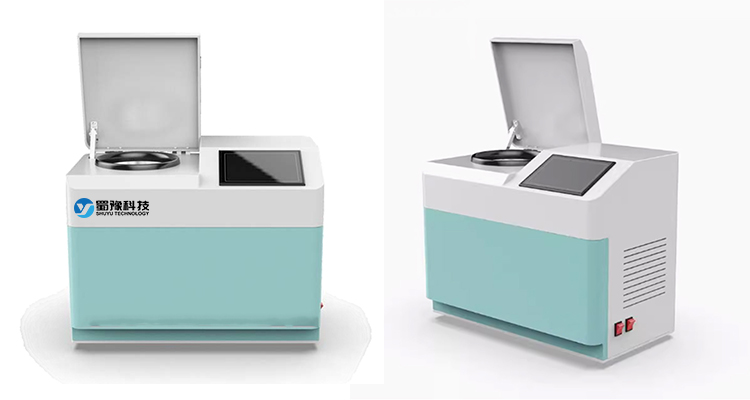

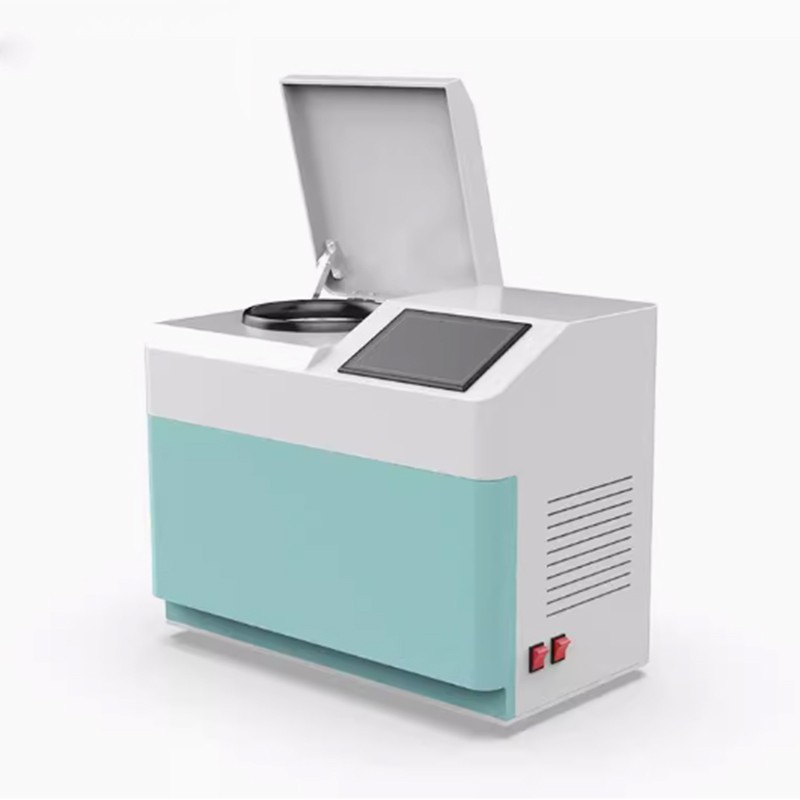

Freezing Grinder

Category： Planetary Ball Mill
Brand:Shu Yu
Name：Freezing Grinder JXFSTPRP-CLN-48
Application：Life sciences, medicine, biochemistry, environment, geology, agriculture, forestry, quality inspection, component detection, materials, etc.
INQUIRY EMAIL

Application Areas
Life sciences, medicine, biochemistry, environment, geology, agriculture, forestry, quality inspection, component detection, materials, etc.

Product Applications

1.Extracting Nucleic Acids/Proteins
Grinding samples at low temperature can effectively inhibit nucleic acid degradation and retain protein activity.

2.Analyzing Active Pharmaceutical Ingredients
There are often significant differences between isomers of active pharmaceutical ingredients. Low - temperature grinding can prevent molecules from degrading due to pressure and heat.

3.Reducing Sample Volatilization
Low - temperature grinding can significantly reduce sample volatilization and more completely retain the content of sample components.

4.Grinding Tough/Hard Samples
For difficult - to - grind samples such as high - toughness plastics, high - strength plastics, and resins, low - temperature grinding can greatly improve the grinding effect and efficiency.

Technical features
• Adjustable cooling: -50°C to 37°C
• High-throughput sample processing: Processes up to 192 samples at a time
•Good grinding effect: Output particle size of 5μm

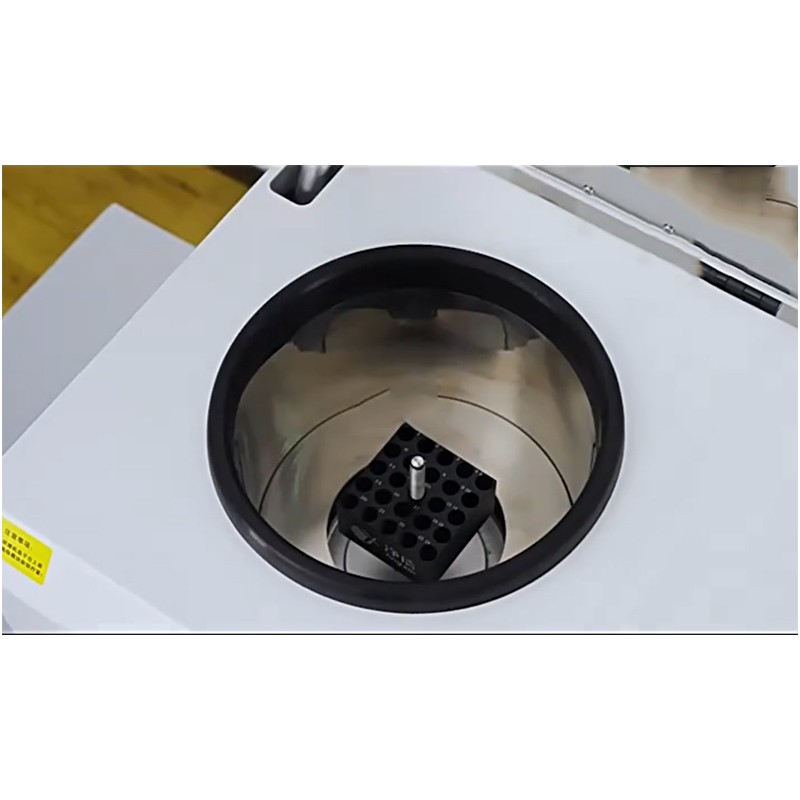

• Fully enclosed grinding: No cross-contamination
• Stable repeatability: Same grinding program yields the same results
• Programmable storage: Stores 10 sets of custom grinding programs
• Time and labor saving, high-speed and convenient
• Low noise < 55dB, using brushless variable frequency motor
• No need for liquid nitrogen operation, high safety
•No fragile parts design, electromagnetic lock protection
•Stainless steel inner cavity, easy to clean and disinfect
• No regular maintenance required

Speciﬁcation

Item	Details
Applications	Tissue homogenization, grinding, cell disruption, slurrying, material dispersion, preparation, oscillation
Max Processing Capacity in 15 Seconds	Can process up to 64 samples simultaneously, compatible with 12 - position and 24 - position liquid nitrogen freezing adapters
Compatible Sample Volumes	64*(0.2–0.5mL) / 642mL / 12(5–15)mL / 425mL / 250mL; Custom - made grinding tubes of various specifications available
Touch Screen Display	User - friendly interface design, easy to operate; Can store 10 sets of experimental data, with different operation modes for animal heart, lung, bone, skin, hair samples etc.
Mode Cycle	According to the set experimental parameters, can cycle among several preset parameters, further reducing human - factor interference
Max Feed Size	No specific requirement, adjustable according to adapters
Cooling Function	Available, adjustable from -50°C to 37°C
Temperature Control Precision	±0.5°C
Lid - Open Operation Protection	Electromagnetic locking (manual or automatic switch optional)
Final Output Particle Size	~5μm
Number of Grinding Platforms (for Grinding Jars)	>2
Self - Centering Tightening Device	Available
Homogenization Speed & Time	0–70Hz/second
Working Time	0 second–9999 minutes, user - definable
Grinding Ball Diameter	0.1–30mm
Grinding Ball Materials	Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand
Acceleration	Reach maximum speed within 2 seconds
Deceleration	Reach minimum speed within 2 seconds
Noise Level	<55dB
Grinding Modes	Wet grinding, dry grinding, low - temperature grinding all applicable
Upgradeable Cooling Function	Capable of being upgraded to ultra - low - temperature liquid nitrogen freezing or air - cooled chiller cooling
Adapter Materials	Teflon or alloy steel
Safety Lock During Operation	Full - process protection with safety lock
Grinding Kit Materials	Hard alloy, Teflon (Teflon), zirconia
Grinder Dimensions	685x400x510mm
Grinder Weight	85KG
