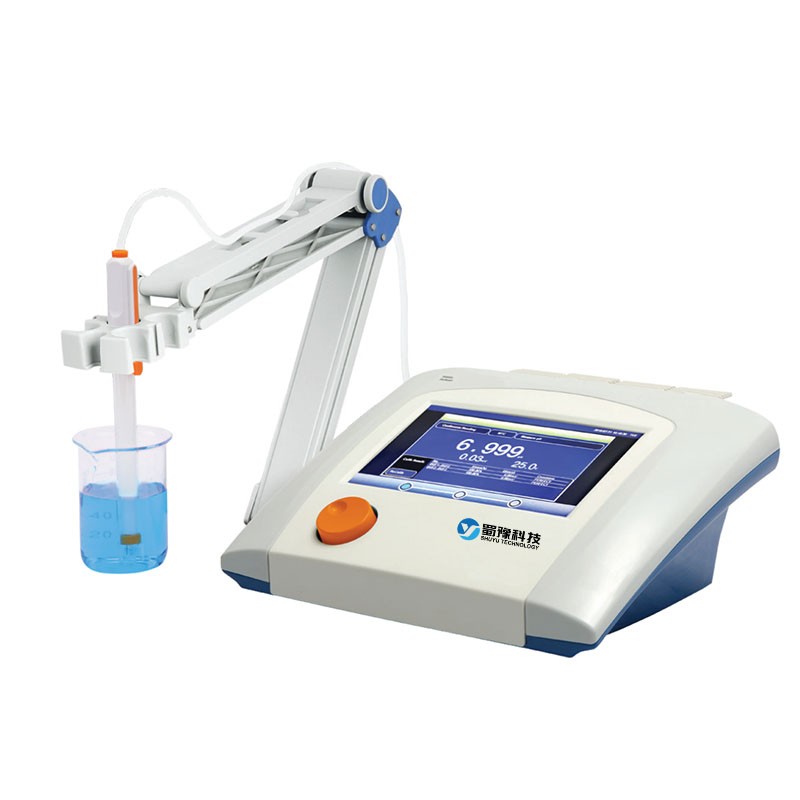

Benchtop Digital Ph Meter

Category： PH Meter
Brand:Shu Yu
Name：PH600L pH Meter
Application:water testing
INQUIRY EMAIL

Feature
● Color High contrast LCD touchscreen, 7.0 inches.
● Intelligent operation system provides features including user
management, calibration management, method management,
data management and etc.
● Multi-reading feature allows auto-read, timed-read and
continuous-read.
● Automatic/Manual temperature compensation ensures accurate
results.
● Data Storage 1000 sets for each parameter (GLP-compliant).
● Data analysis feature helps user review, compare and
recalculate results.
● Support for USB or RS-232 communication.
● Reset feature automatically resumes all settings back to factory
default options.
● IP54 waterproof.
● 1-6 points calibration with Standard Recognition.
● Selectable pH buffer groups, including NIST, DIN, GB.
● Support for pH standard group customization.

● Automatic electrode diagnosis with pH slope and offset display.

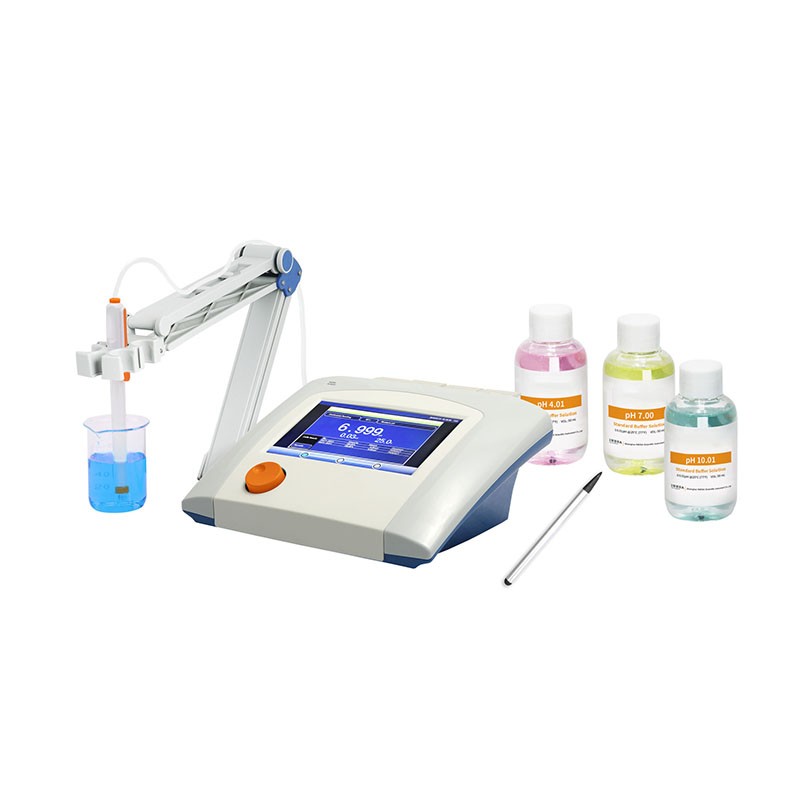

Includes
E-201-L pH composite electrode
T-818-L Temperature probe
NIST pH standard solution(4.01, 7.00, 10.01) ，50ml/vial
REX-3 electrode stand
Touch pen

Speciﬁcation

Model	PH600L
Parameters	pH/Temp.(mV/ORP)
pH - Range	-2.000 to 20.000 pH
pH - Resolution	0.1, 0.01, 0.001pH
pH - Accuracy	±0.002 pH
pH - Calibration Points	Up to 6
pH - Standard Customization	Yes
pH - Calibration Reminder	Yes
pH - Standard Recognition	NIST, GB, DIN buffers
pH - Slope Limit	Yes
mV/ORP - Range	-2000.00 to 2000.00 mV
mV/ORP - Resolution	0.1, 0.01 mV
mV/ORP - Accuracy	±0.03%FS
Temperature - Range	-5 to 130 °C
Temperature - Unit	°C
Temperature - Resolution	0.1
Temperature - Accuracy	±0.1
Measurement - Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
Measurement - Reading Prompts	Reading, Stable, Locked
Measurement - Temp. Compensation	ATC, MTC
Data management - Data Storage	1000 Groups
Data management - GLP Features	Yes
Data management - Log Management	Yes
Inputs - pH Electrode	BNC(Q9)
Inputs - Temp. Probe	6 - pin Mini - DIN
Outputs - USB, RS 232	USB 2.0 flash memory device, printer, PC
Display options - Backlight	Yes
Display options - Auto Shutdown	1 - 60 min, off
Display options - IP Rating	IP54
Display options - Date and Time	Yes
General - Power	AC Adapter, 100 - 240V AC input, DC24V output
General - Dimensions	280×280×130 mm
General - Weight	2500g (5.51 lb)
