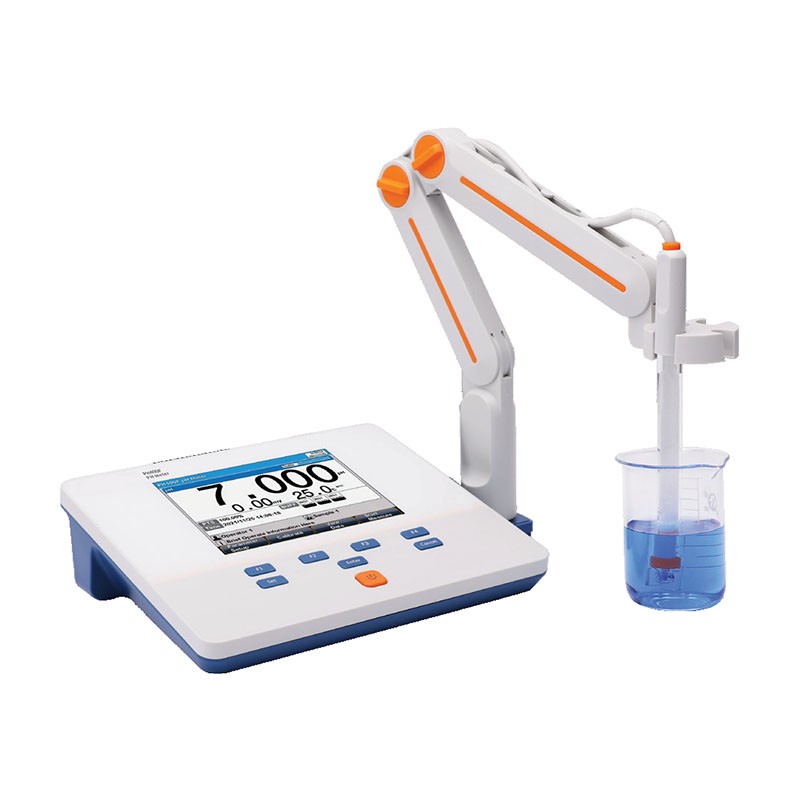

PH400F pH Meter

Category： PH Meter
Brand:Shu Yu
Name：PH400F pH Meter
Application:water testing
INQUIRY EMAIL

Feature
● High resolution LCD display, 5.7 inches.
● Multi-reading feature allows auto-read, timed-read and
continuous-read.
● Automatic/Manual temperature compensation ensures accurate
results.
● Auto-hold feature senses and locks the measurement endpoint.
● Data Storage 500 sets (GLP-compliant).
● Support for USB or RS-232 communication.
● Reset feature automatically resumes all settings back to factory
default options.
● IP54 waterproof.
● 1-5 points calibration with Standard Recognition.
● Selectable pH buffer groups, including NIST, DIN, GB, USA,
MERK.
● Automatic electrode diagnosis with pH slope and offset display.

Includes
●E-301-QC 3 in 1 pH composite electrode
●NIST pH standard solution(4.01, 7.00, 10.01) ，50ml/vial
●REX-5 electrode stand

Speciﬁcation

Model	PH400F
Parameters	pH/Temp.(mV)
pH - Range	-2.000 to 20.000 pH
pH - Resolution	0.1, 0.01, 0.001pH
pH - Accuracy	± 0.002 pH
pH - Calibration Points	Up to 5
pH - Standard Customization	Yes
pH - Standard Recognition	NIST, GB, DIN, USA and MERK buffers
mV - Range	-2000.00 to 2000.00 mV
mV - Resolution	0.1, 0.01 mV
mV - Accuracy	± 0.1 mV or ± 0.03%
Temperature - Range	-10 to 135 °C, 14 to 275 °F
Temperature - Unit	°C, °F
Temperature - Resolution	0.1
Temperature - Accuracy	± 0.1
Measurement - Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
Measurement - Reading Prompts	Reading, Stable, Locked
Measurement - Temp. Compensation	ATC, MTC
Data management - Data Storage	500 results each
Data management - GLP Features	Yes
Inputs - pH Electrode	BNC(Q9)
Inputs - Temp. Probe	4-pin aviation connector
Outputs - USB	PC
Outputs - RS 232	printer
Display options - Backlight	Yes
Display options - Auto Shutdown	1~60 min, off
Display options - IP Rating	IP54
Display options - Date and Time	Yes
General - Power	AC Adapter, 100-240V AC input, DC9V output
General - Dimensions	242 × 195 × 68 mm
General - Weight	900g (1.98 lb)
