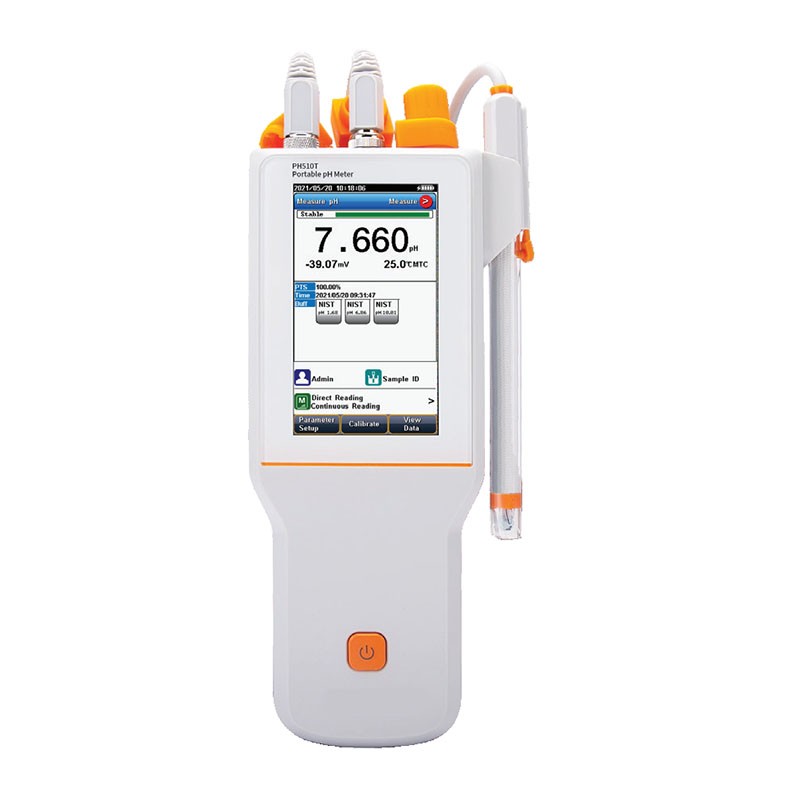

Portable pH Meter

Category： PH Meter
Brand:Shu Yu
Name：PH510T pH Meter
Application:water testing
INQUIRY EMAIL

Feature

● Color High contrast LCD touchscreen, 4.3 inches.
● Intelligent operation system provides features including user management,
calibration management, electrode management, method management, data
management, Log Management and etc.
● Multi-reading feature allows auto-read, timed-read and continuous-read.
● Automatic/Manual temperature compensation ensures accurate results.
● Auto-hold feature senses and locks the measurement endpoint.
● Data Storage 1000 sets for each parameter (GLP-compliant).
● Data analysis feature helps user review, compare and recalculate results.
● Support for USB communication.
● Auto-power off feature effectively extends the battery service life.
● Reset feature automatically resumes all settings back to factory default options.
● IP65 waterproof. The portable meter is suitable for ffelds measurements and out
door measurements.
● 1-8 points calibration with Standard Recognition.
● Selectable pH buffer groups, including USA, NIST, DIN, GB, MERK, JIS.

● User-deffned pH buffer or buffer group is supported.

● Automatic electrode diagnosis with pH slope and offset display.

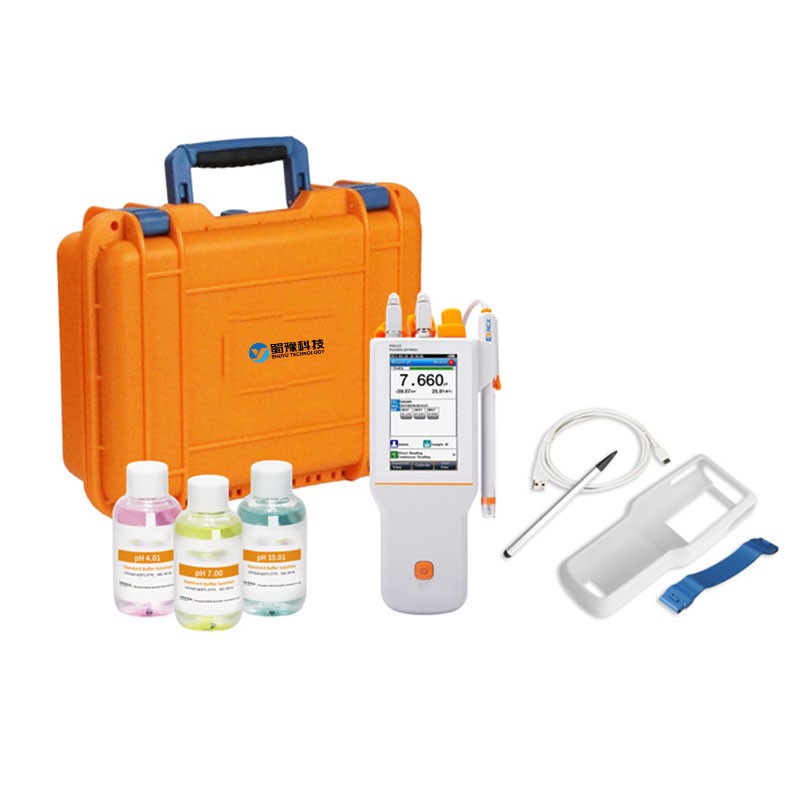

Includes
●E-301-QC 3 in 1 pH composite electrode
●NIST pH standard solution(4.01, 7.00, 10.01) ，50ml/vial
●Electrode holder
●Silicone rubber case
●Wristbands
●Touch pen
●Carrying case

Speciﬁcation

Model	PH510T
Parameters	pH/Temp.(mV/ORP)
pH - Range	-2.000 to 20.000 pH
pH - Resolution	0.1, 0.01, 0.001pH
pH - Accuracy	± 0.002 pH
pH - Calibration Points	Up to 8
pH - Standard Customization	Yes
pH - Calibration Reminder	Yes
pH - Standard Recognition	USA, NIST, MERK, JIS, GB and DIN buffers
pH - Slope Limit	Yes
mV/ORP - Range	-2000.00 to 2000.00 mV
mV/ORP - Resolution	0.1, 0.01 mV
mV/ORP - Accuracy	± 0.1 mV or ± 0.03%
mV/ORP - EH ORP Mode	Yes
mV/ORP - ORP Calibration Points	1 custom point (relative mV)
Temperature - Range	-10 to 135 °C, 14 to 275 °F
Temperature - Unit	°C, °F
Temperature - Resolution	0.1
Temperature - Accuracy	0.1
Measurement - Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
Measurement - Reading Prompts	Reading, Stable, Locked
Measurement - Temp. Compensation	ATC, MTC
Data management - Data Storage	1000 Groups
Data management - GLP Features	Yes
Inputs - pH Electrode	BNC(Q9)
Inputs - Temp. Probe	4-pin aviation connector
Outputs - USB	USB 2.0 flash memory device, PC, scanner
Outputs - Bluetooth	Yes
Display options - Backlight	300, 600, 1200, 1800, 3600 sec., off
Display options - Auto Shutdown	IP65
Display options - IP Rating	Yes
Display options - Date and Time	Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
General - Power	90 × 255 × 40 mm
General - Dimensions	500g (1.1 lb)
General - Weight	500g (1.1 lb)
