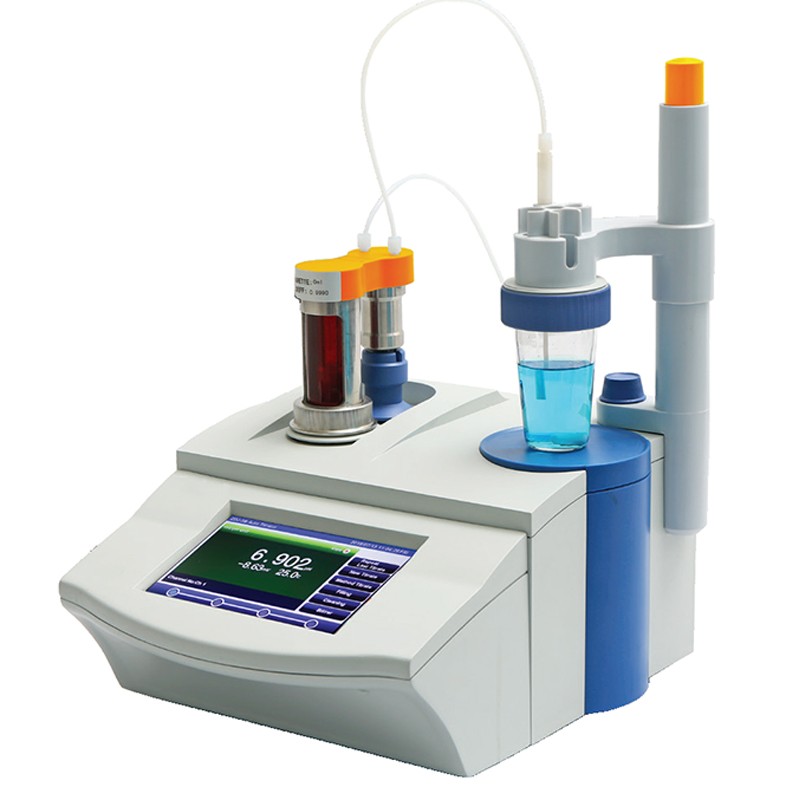

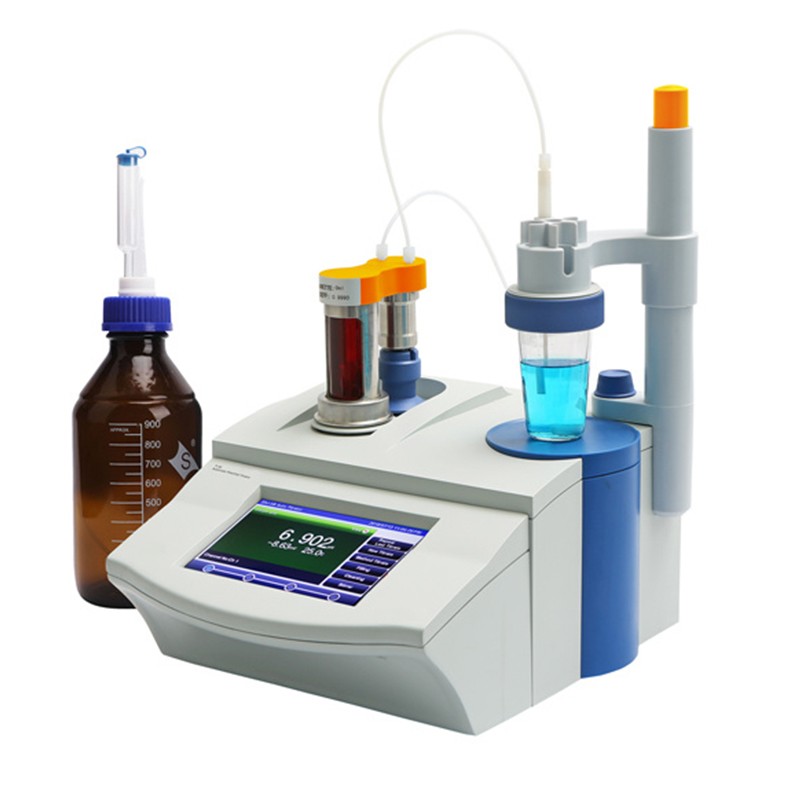

Ti-50 Automatic Potential Titrator / Automatic Titrator

Ti-50 Automatic Potential Titrator / Automatic Titrator

Category： Titrator
Brand:Shu Yu
Name：Ti-50 Automatic Potential Titrator / Automatic Titrator
Application:for laboratory application of potentiometric titration for capacity analysis;
INQUIRY EMAIL

Feature
● 7” colorful touchscreen and smart guide system.
● Titration methods, curves and results are displayed in detail.
● 1 extra burette driver can be installed (optional).

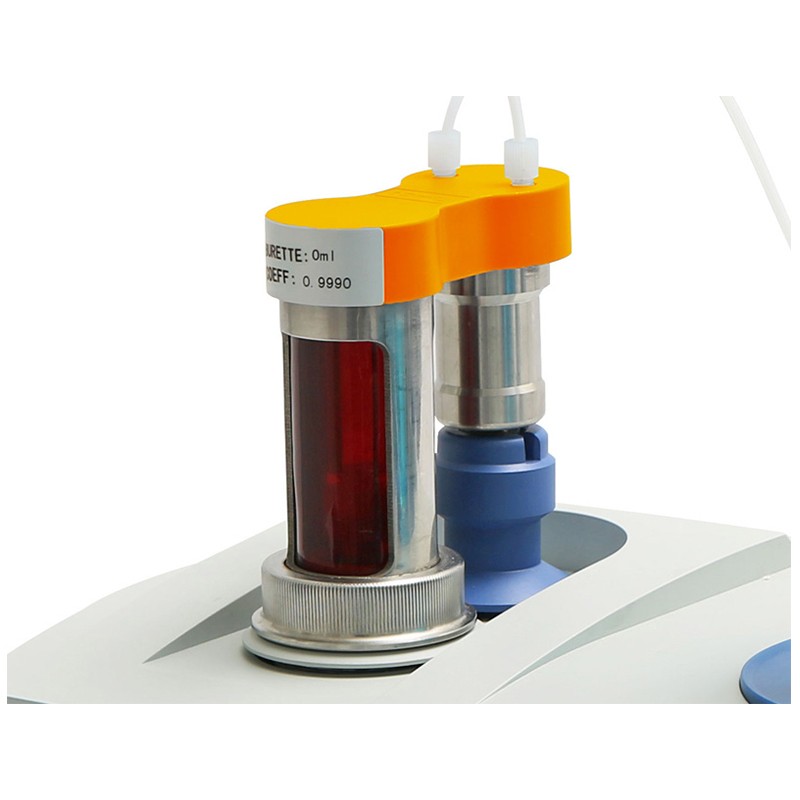

● Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
● Intelligent operation system provides features including user
management, method management, electrode management, titrant
management, data management, etc.
● Support titration modes: DET (dynamic equivalence point titration),
MET (monotone equivalence point titration), SET (Preset Endpoint
Titration) and MAT (manual titration).
● pH calibration and measurement are supported.
● Up to 100 user-deffned methods and 10 user-deffned shortcuts.
● Auto calculation with pre-deffned formula.
● Store up to 200 titration data sets (GLP-compliant).
● Data analysis feature helps user review, compare and recalculate
results.
● Data can be easily transferred to printer via RS-232 communication
interface.
● Titrator can be controlled by computer via USB or RS-232
communication interface.
● Automatic sampler is supported.

Includes
10ml burette
232-01 referenc electrode
213-01 platinum electrode
216-01 silver electrode
217-01 referenc electrode
231-01 pH indicator electrode
T-818-B-6 Temperature probe
NIST pH standard solution(4.01, 7.00, 10.01) ，50ml/vial

Speciﬁcation

Model	Ti-50
Burette - Repeatability	≤ 0.2%
Burette - Accuracy	10ml Burette: ±0.020ml20ml Burette: ±0.030ml
Burette - Resolution	1/30000
Mechanical Unit - Range	(-2000.00~2000.00) mV(0.000~20.000)pH
Measuring Unit - Resolutions	0.01mV, 0.001pH
Measuring Unit - Accuracy	pH: ±0.002pHmV: ±0.03% or ±0.2mV
Measuring Unit - Fluctuation	±0.3mV/3h
Temp. Compensation - Range	(-5.0~105.0) °C
Temp. Compensation - Resolutions	0.1 °C
Temp. Compensation - Accuracy	±0.2 °C
General - Power Supply	AC Adapter, 100-240V AC input, C24V output
General - Dimensions	340×400×400 mm
General - Weight	10 kg
