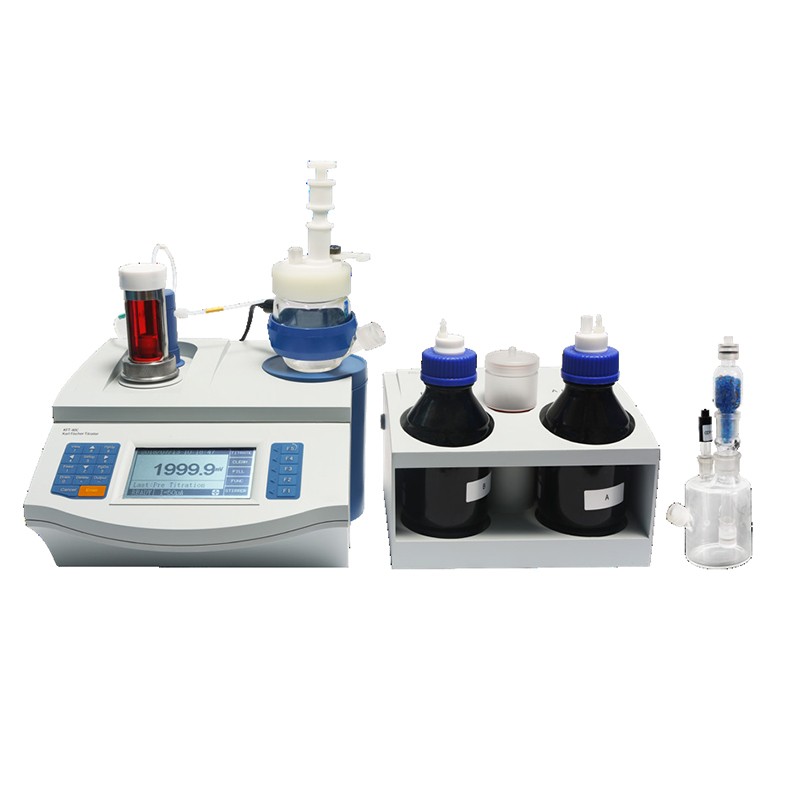

KFT-40VC Karl Fischer Titrator

Category： Titrator
Brand:Shu Yu
Name：KFT-40VC Karl Fischer Titrator
INQUIRY EMAIL

Feature

Volumetric Karl Fischer Titration
●Support KF Titration Mode and Titer Detection Mode.
● Features of auto-fflling, auto-purging and auto-mixing of the reagents
ensure safe handling of Karl Fischer chemicals.
● Automatic/manual background drift correction ensures accurate results.
● Selectable units including mg, mg/L, %, ppm, etc.
● Settable parameters, including measurement unit, polarization current,
stirring rate, titration rate, stop volume, endpoint potential, stop criterion
and etc.
● Store up to 200 titration data sets (GLP-compliant).

Coulometric Karl Fischer Titration
●Generator cell with diaphragm.
● Automatic/manual background drift correction ensures accurate results.
● Selectable units including μg,mg,%,ppm,mg/L,μg/mL, etc.
● Settable parameters, including measurement unit, polarization current,
stirring rate, generator current, endpoint potential, stop criterion and etc.
● Store up to 200 titration data sets (GLP-compliant).

General Feature
● LCD display screen.
● Titration methods, curves and results are displayed in detail.
● Volumetric KF Titration and Coulometric KF Titration are supported.
● Data analysis feature helps user review and compare results.
● Data can be easily transferred to printer via RS-232 communication
interface.
● Reset feature automatically resumes all settings back to factory default
options.

Includes
●External device
●Electrolysis electrode
●Measuring electrode
●10ml Burette

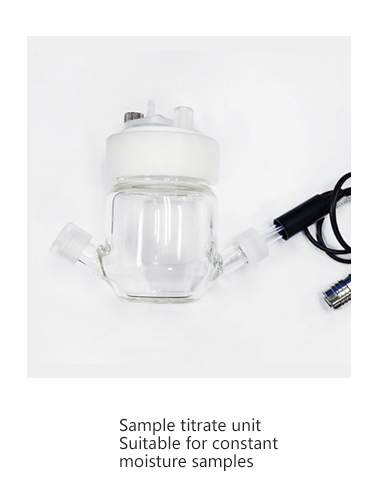

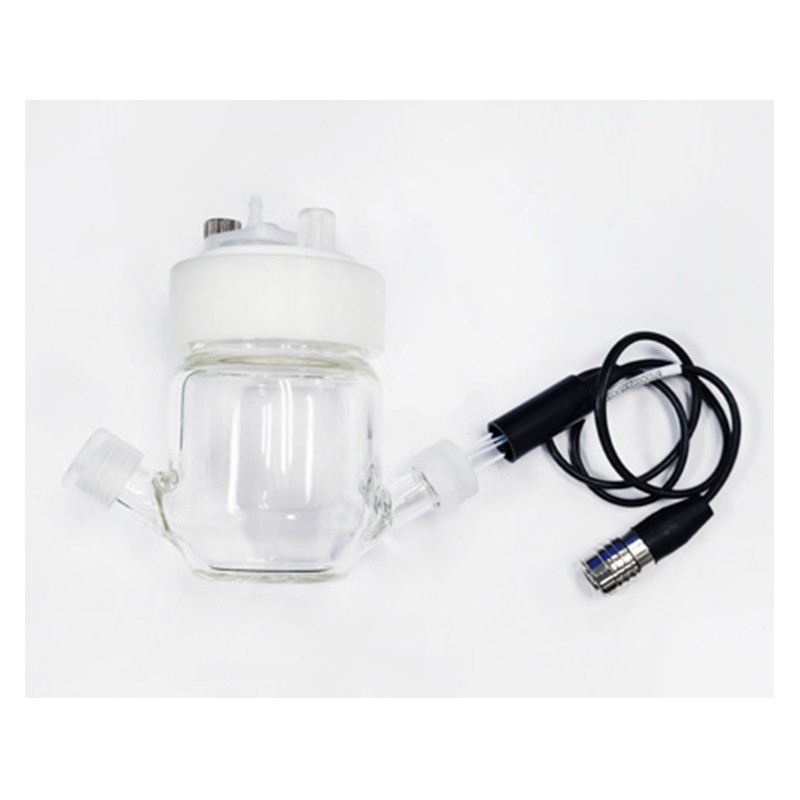

●Volumetric titration cell
●Coulometric titration cell

Speciﬁcation

Model	KFT-40VC
Volumetric Titration - Range	(0.1mg~250)mg
Volumetric Titration - Polarization Current Accuracy	1μA±0.2μA; 50μA±10μA
Volumetric Titration - Repeatability	≤ 0.5%
Coulometric Titration - Range	10μg~20mg
Coulometric Titration - Polarization Current Accuracy	±0.2μA
Coulometric Titration - Working Current	1, 1.86, 5.10 μg (H₂O) /s for 10.72mA, 20 mA, 53.61mA, 107.2 mA
Coulometric Titration - Working Current Accuracy	0.5%
Coulometric Titration - Accuracy	± (5%+3) μg
Coulometric Titration - Repeatability	≤ 3%
General - Power Supply	AC Adapter, 100-240 V AC input
General - Dimensions	340×400×400 mm
General - Weight	10kg
