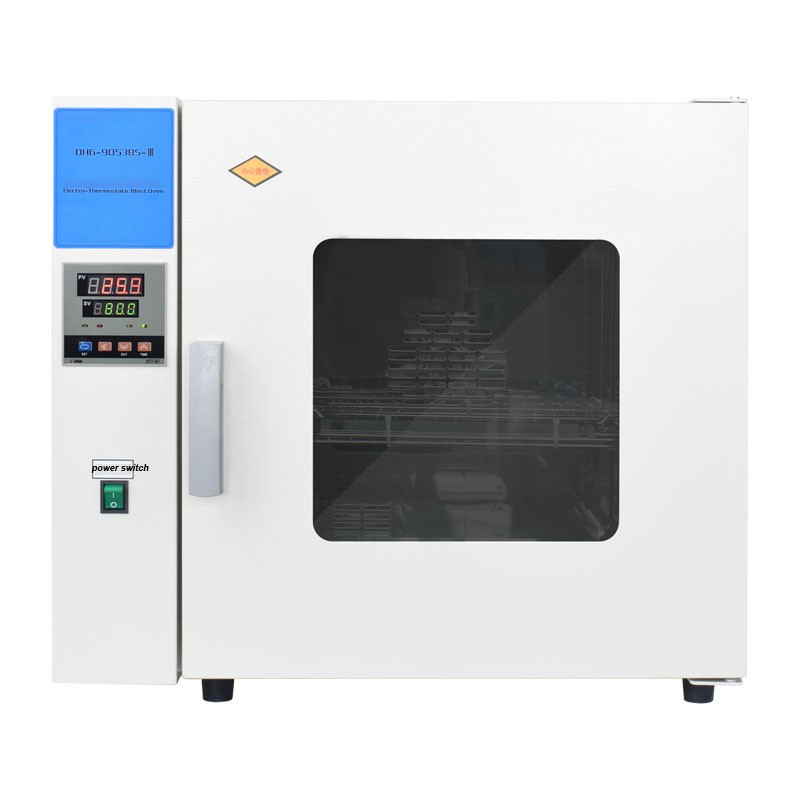

Hot Air Drying Oven 200℃

Category： Hot Air Drying Oven
Brand:Shu Yu
Name：Hot Air Drying Oven 200℃
Application:Applicable to laboratories, scientific research units, industrial and mining enterprises to bake wax, drying, sterilization.
INQUIRY EMAIL

Description

For scientific research units, colleges and universities, medical institutions, industrial and mining enterprises and other units and departments to be used for various tests,
such as drying, disinfection, sterilization, solidification, etc.

Features

1. Microcomputer intelligent P.I.D controller. After setting the temperature, the instrument automatically controls the heating power and displays the heating status,
with accurate and stable temperature control.
2. Over-temperature acousto-optic alarm and automatic cut-off of heating power supply.
3.Built-in stainless steel shelf, the height of which can be freely adjusted.

Materials:
1.The cabinet is made of high-quality cold-rolled steel plate, with electrostatic spray coating on the surface. The coating is hard and firm, and has extremely strong
rust - prevention ability. The working chamber is made of high-quality 304 mirror stainless steel. The inner corner of the cabinet is rounded, smooth and fluid, and
extremely easy to clean. The shelf bracket can be freely assembled and disassembled.
2. Special low-noise fan, which can run stably at high temperature for a long time; adjustable new air inlet, which controls the air volume entering and exiting the cabinet.
3. Independent over-temperature alarm system. When the temperature exceeds the limit, it will be automatically interrupted immediately to ensure the smooth progress
of the experiment (optional).
4.Optional multi-stage program controller, which is convenient for long-term multi-temperature point experiments (optional).
5. Can be equipped with a printer or RS - 485 interface to connect to a computer to record the changes of parameters such as temperature (optional).

Parameters

Serial No.	Item	Technical Parameters
1	Product Model	DHG-9033BS-Ⅲ	DHG-9053BS-Ⅲ	DHG-9073BS-Ⅲ	DHG-9143BS-Ⅲ	DHG-9243BS-Ⅲ
2	Volume	30.4L	51.6L	72L	121L	207L
3	Heating Method	Stainless steel electric heater
4	Temperature Control Range	Room temperature +5°C - 200°C
5	Temperature Resolution	0.1°C
6	Temperature Fluctuation	±0.2°C
7	Number of Shelves	2 pieces
8	Working Time	1 - 9999 minutes for timing or continuous operation
9	Power	700W	900W	1050W	1650W	2050W
10	Working Power Supply	AC 220V 50Hz
11	Size of Working Chamber (mm)	320×280×340	380×340×400	450×350×450	550×400×550	600×460×750
12	Overall Dimensions (mm)	580×450×520	640×505×580	705×520×630	800×580×730	850×630×930

Optional Accessories
1.Side face test hole of the cabinet
2. Independent over-temperature controller
3.Intelligent multi-stage program controller
4.LCD display instrument
5.Built-in printer
6.RS-485 communication interface and software
7.Heating rate

Remarks
1.Performance parameters are tested under no-load conditions: ambient temperature 25°C, ambient humidity 50%RH.
