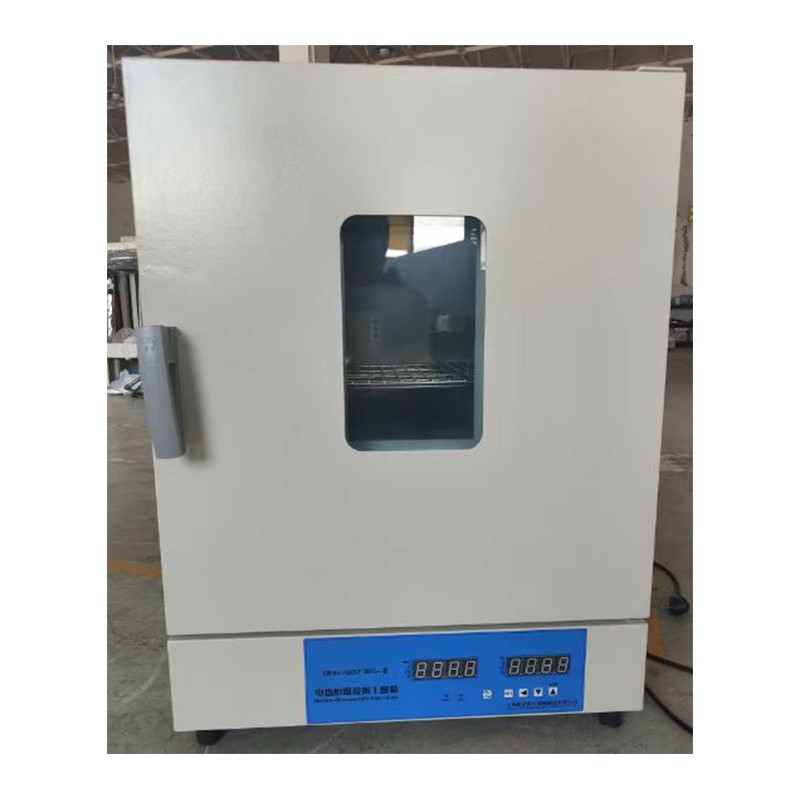

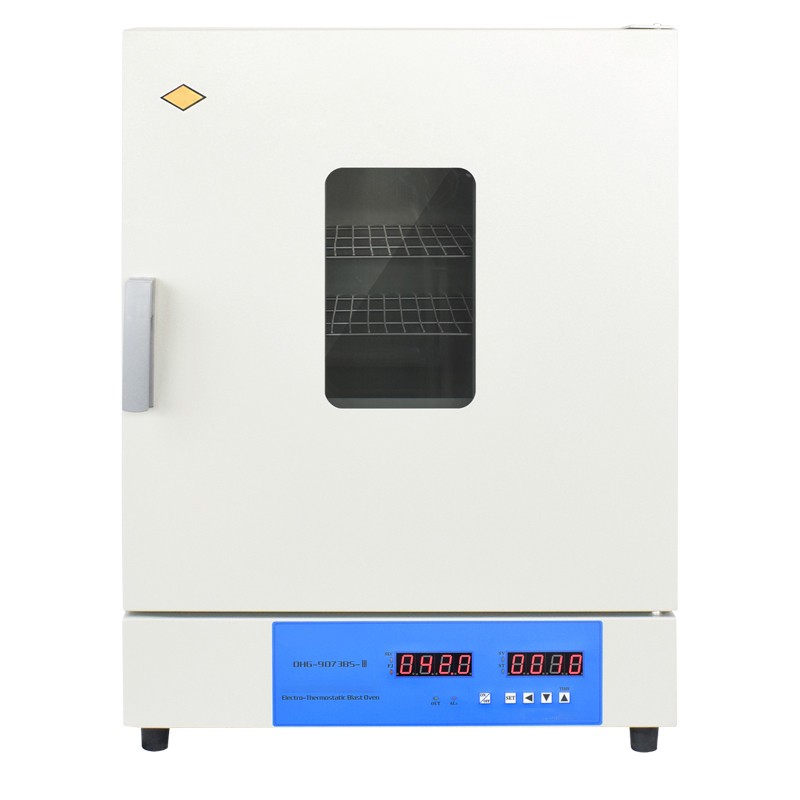

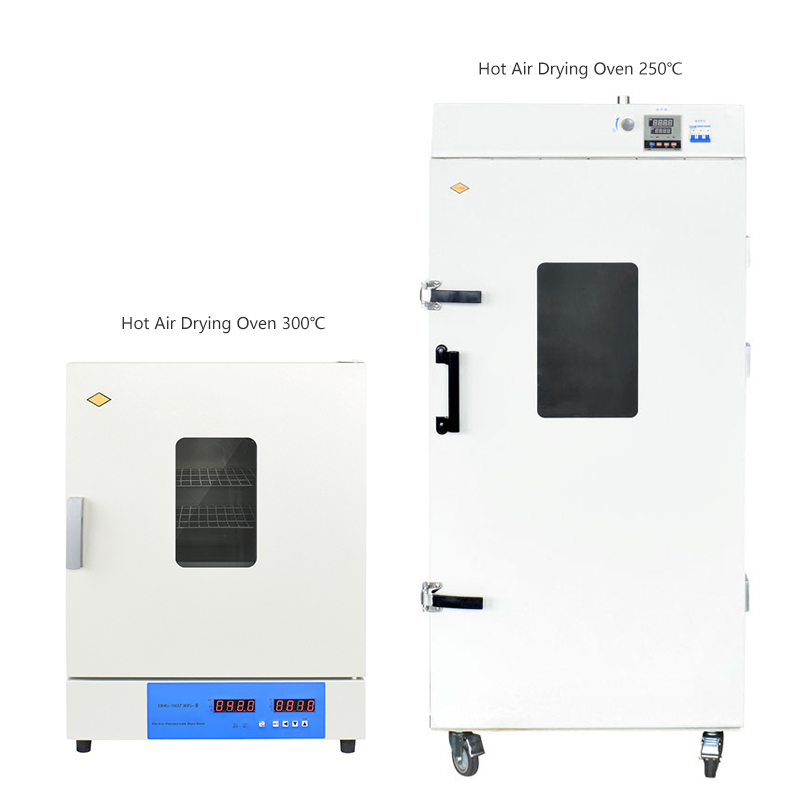

Hot Air Drying Oven 300℃

Category： Hot Air Drying Oven
Brand:Shu Yu
Name：Hot Air Drying Oven 300℃
Application：For scientific research units, colleges and universities, medical institutions, industrial and mining enterprises and other units and departments to be used for various tests, such as dry
INQUIRY EMAIL

Description

For scientific research units, colleges and universities, medical institutions, industrial and mining enterprises and other units and departments to be used for various tests,
such as drying, disinfection, sterilization, curing and other applications.

Features

1.Microcomputer - intelligent P.I.D. controller. After setting the temperature, the instrument automatically controls the heating power and displays the heating status, with
accurate and stable temperature control.

2.Overtemperature acousto - optic alarm and automatic cut - off of the heating power supply.

3.Built - in stainless steel shelves, the height of which can be freely adjusted.

Materials:

1.The box body is made of high - quality cold - rolled steel plate, with electrostatic spray - molding on the surface. The coating is hard and firm, and has extremely strong
rust - prevention ability. The working chamber is made of high - quality 304 stainless steel material, with a rounded corner design inside the box, smooth and flowing, and
extremely easy to clean,Special low - noise fan, which can operate stably for a long time at high temperatures.

2.Independent limit temperature alarm system. When the temperature exceeds the limit, it will be automatically interrupted immediately to ensure the smooth progress
of the experiment (optional).

3.Optional multi - segment program controller, convenient for long - time multi - temperature point experiments (optional).

4.Optional printer or RS - 485 interface, to connect to a computer to record the changes of parameters such as temperature (optional).

Parameters

Serial No.	Item	Technical Parameters
1	Product Model	DHG-9073BS-Ⅲ	DHG-9143BS-Ⅲ	DHG-9243BS-Ⅲ	DHG-9423BS-Ⅲ	DHG-9623BS-Ⅲ
2	Volume	72L	136L	225L	429L	624L
3	Heating Method	Stainless steel electric heater
4	Temperature Control Range	Room temperature +5°C - 300°C			Room temperature +5°C - 250°C / Room temperature +5°C - 300°C (customized)
5	Temperature Resolution	0.1°C
6	Temperature Fluctuation	±0.5°C
7	Number of Shelves	2 pieces			3 pieces
8	Working Time	1 - 9999 minutes for timing or continuous operation
9	Power	1600W	2200W	2400W	3580W	5440W
10	Working Power Supply	AC 220V 50Hz			AC 380V 50Hz three - phase five - wire
11	Size of Working Chamber (mm)	400×400×450	450×550×550	500×600×750	600×550×1300	800×600×1300
12	Overall Dimensions (mm)	590×540×790	640×690×890	690×740×1090	820×740×1780	1020×790×1780

Optional Accessories：

1.Side test hole of the box body
2.Independent temperature limit controller
3.Intelligent multi - stage program controller
4.LCD display instrument
5.Embedded printer
6.RS - 485 communication interface and software
7.Heating rate

Remarks：
1.The performance parameters are tested under no - load conditions: ambient temperature 25°C, ambient humidity 50% RH.
