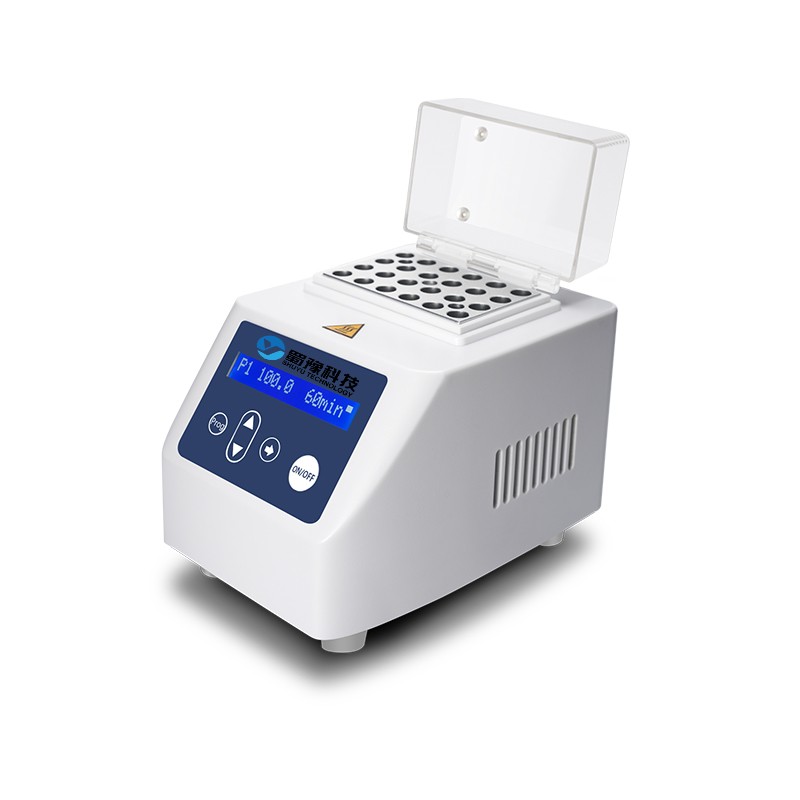

Mini Dry Bath

Category： Metal Bath
Brand:Shu Yu
Model：MiniHCL/MiniHC100/MiniH100
Applications:Useful for rapid and uniform heating of biological samples in applications like preservation, denaturation of nucleic acids and proteins, and many other applications.
INQUIRY EMAIL

Features
●Mini, lightweight, safe with LCD display
●Digital control over both temperature and time
●Built-in user recalibration function guarantees long term temperature accuracy
●Overheating protection
●Optional cooling function

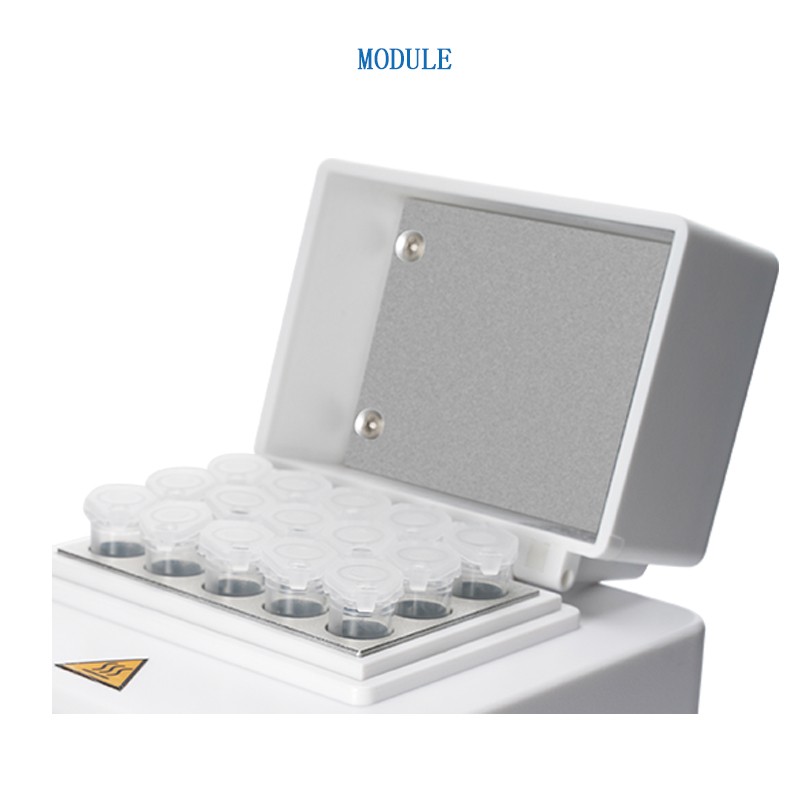

●Interchangeable blocks for a wide variety of test tube sizes
●Mini HCL100 with hot lid to prevent water condensing on the tube cap
Applications
Useful for rapid and uniform heating of biological samples in applications like preservation, denaturation of nucleic
acids and proteins, and many other applications.

Specifications

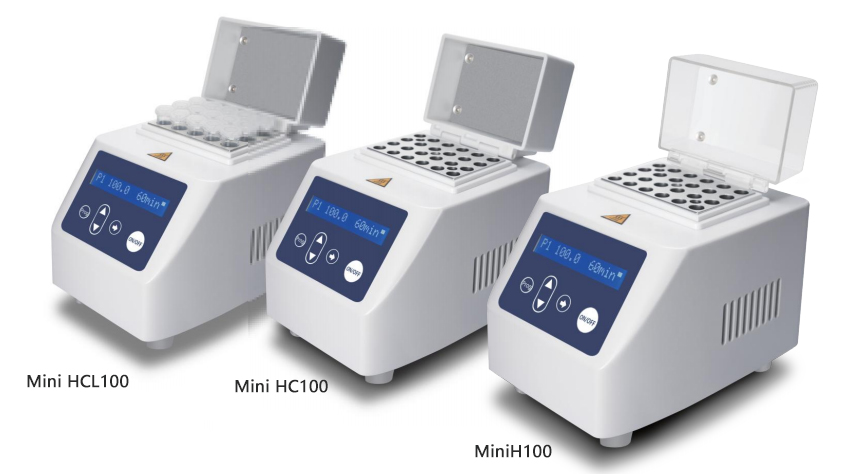

Specifications	MiniHCL100	MiniHC100	MiniH100
Display	LCD	LCD	LCD
Temperature setting range[°C]	0 - 100	0 - 100	25 - 100
Temperature range [°C]	Room temperature - 23 - 100	Room temperature - 23 - 100	Room temperature + 5 - 100
Temperature control accuracy[°C]	±0.5	±0.5	±0.5
Temperature display accuracy[°C]	0.1	0.1	0.1
Minimum time taken for heating(25°C + 100°C)	≤20min	≤20min	≤20min
Minimum time for cooling(20°C - 0°C)	≤25min	≤25min	-
Max. Heating Rate	8°C/min	8°C/min	6.5°C/min
Max. Cooling Rate	3°C/min	3°C/min	-
Time setting range	0 - 999min/0 - 999sec	0 - 999min/0 - 999sec	0 - 999min/0 - 999sec
Program Memory	9(2steps for each)	9(2steps for each)	9(2steps for each)
Temperature self - calibration	Support	Support	Support
USB interface	Support	Support	Support
Error code display	Support	Support	Support
Dimension[W×D×H]	110×162×140mm	110×162×140mm	110×162×140mm
Total Weight [kg]	≤1	≤1	≤1
Voltage,Frequency	100 - 240V, 50/60Hz or DC12V	100 - 240V, 50/60Hz or DC12V	100 - 240V, 50/60Hz or DC12V
Power [w]	60	60	60
Operating temperature[°C]	+10 - 40	+10 - 40	+10 - 40
Operating humidity [% RH]	≤80	≤80	≤80
