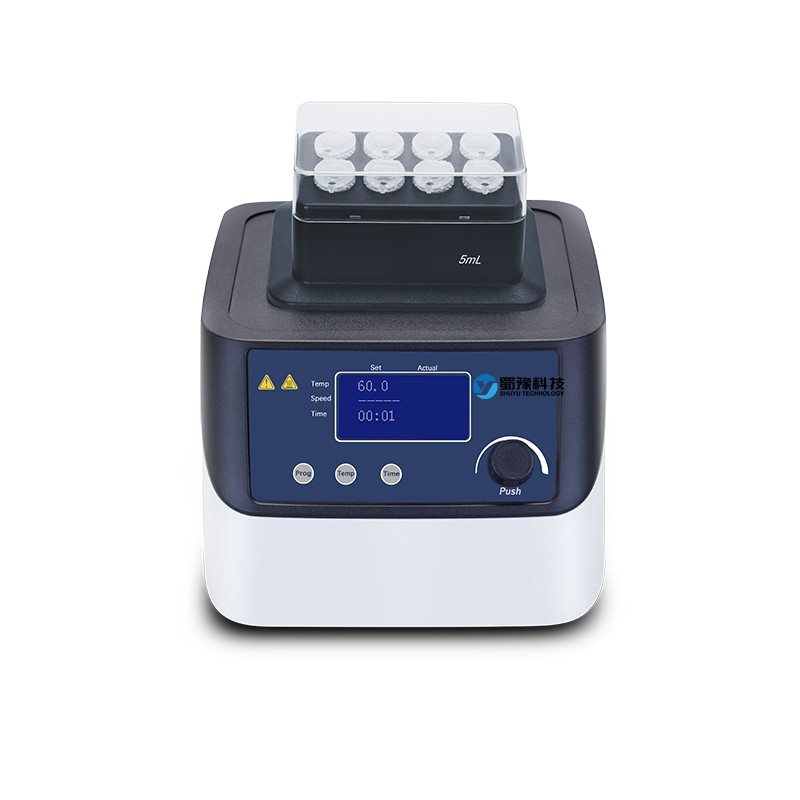

Constant temperature shaking metal bath

Category： Metal Bath
Brand:Shu Yu
Model：HCM100-Pro/HM100-Pro
Application:Precise and efficient heating/cooling and mixing is applicable for many applications such as Gene synthesis,gene purification, gene and protein denaturation, enzymatic reaction, bacterial
INQUIRY EMAIL

Applications
Precise and efficient heating/cooling and mixing is applicable for many applications such as Gene synthesis,gene purification, gene and protein denaturation, enzymatic reaction, bacterial growth, and others.

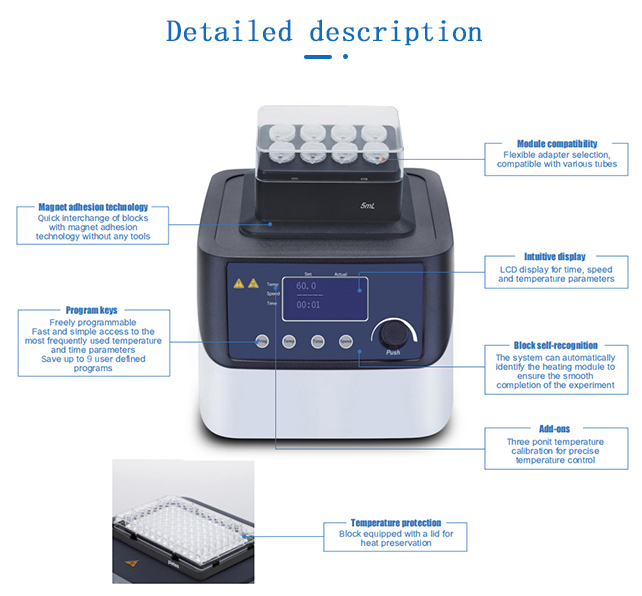

Features
●Fully programmable
●Precise temperature control for heating and cooling
●Real-time display of speed, temperature and time
●Excellent mixing (200-1500rpm)
●Quick interchange of blocks without tools and automatic block recognition
●Compatible with most popular tubes
●Block equipped with a lid for heat preservation
●Temperature self-calibration

Specifications
As low as -5℃
Precise temperature control for heating and cooling between -5℃-110℃.

Specifications	HCM100 - Pro	HM100 - Pro
Functions	Heating, cooling & mixing	Heating & mixing
Temperature range [°C]	Below room temp 15 - 100	Room temp - 100
Temperature Setting range [°C]	0 - 100	15 - 100
Temperature control accuracy@20 - 45 [°C]	±0.5	±0.5
Temperature uniformity@20 - 45 [°C]	±0.5	±0.5
Power [W]	200	200
Time setting range	0min - 99h30min	0min - 99h30min
Max Heating speed	5.5°C/min	5.5°C/min
Max Cooling speed	5°C/min (100°C - room temp) 0.5°C/min (below room temp)	-
Mixing speed [rpm]	200 - 1500	200 - 1500
Mixing orbit [mm]	3	3
Display	TFT	TFT
Program	9	9
Overheating protection [°C]	150	150
Voltage, Frequency	110/220V, 50/60HZ	110/220V, 50/60HZ
Dimension [mm]	200x235x120	200x235x120
Weight [kg]	7.3	7.3
Operating temperature [°C]	10 - 40	10 - 40
Operating humidity [% RH]	< 80	< 80
