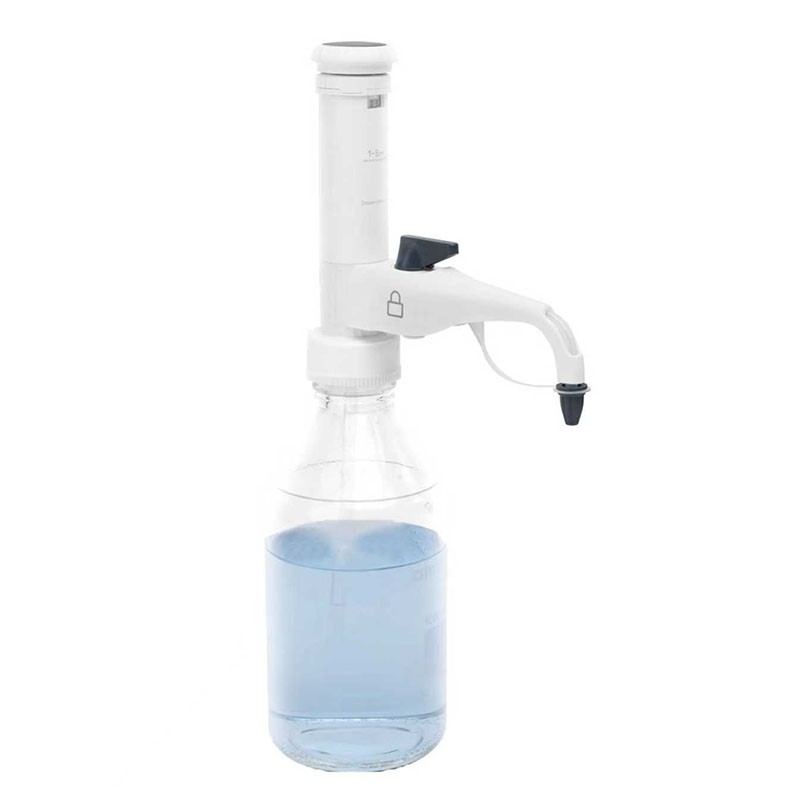

Economy Bottle-Top Dispenser

Category： Pipette
Brand:Shu Yu
Model：DispensMate-E
Application：The simple bottle-top dispenser is widely used for routine liquid dispensing in fields such as chemistry, biology, pharmaceuticals, food, environmental monitoring, and scientific research
INQUIRY EMAIL

Application
The simple bottle-top dispenser is widely used for routine liquid dispensing in fields such as chemistry,
biology, pharmaceuticals, food, environmental monitoring, and scientific research education.

Features
●Excellent chemical resistance.
●The five bottle neck adapters provided are:
S40, 45/40mm; GL32, 45/32mm; GL38, 45/38mm; GL25, 32/25mm; GL28, 32/28mm.
●4 models cover a capacity range of 1-60mL.
●Made of materials such as PTFE, FEP, PVC, and PP.
●Convenient design ensures easy and economical cleaning and maintenance of the dispenser.
●Maximum pressure resistance: 500mbar, maximum viscosity: 500mm²/s, maximum liquid
temperature resistance: 40°C, maximum liquid density resistance: 2.2g/cm³.

Specifications

Volume Range	Graduation (mL)	Test Volume (mL)	Systematic Error ±%	Systematic Error ±μL	Random Error ±%	Random Error ±μL
1 - 5mL	0.1	1	5	50	1	10
1 - 5mL	0.1	2.5	1	25	0.2	5
1 - 5mL	0.1	5	0.5	25	0.1	5
2 - 10mL	0.2	2	5	100	1	20
2 - 10mL	0.2	5	1	50	0.2	10
2 - 10mL	0.2	10	0.5	50	0.1	10
5 - 30mL	0.5	5	5	250	1	50
5 - 30mL	0.5	15	1	150	0.2	30
5 - 30mL	0.5	30	0.5	150	0.1	30
10 - 60mL	1	10	5	500	1	100
10 - 60mL	1	30	1	300	0.2	60
10 - 60mL	1	60	0.5	300	0.1	60
