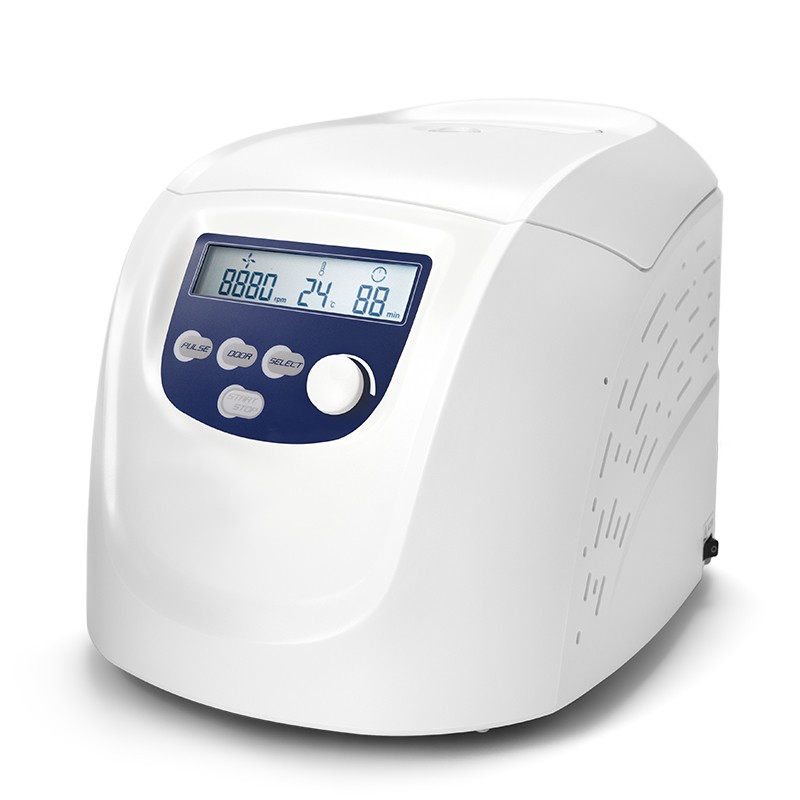

Table Top Capillary Vessel Haematocrit Centrifuge

Table Top Capillary Vessel Haematocrit Centrifuge

Category： High Speed Centrifuge
Brand:Shu Yu
Name：Table Top Capillary Vessel Haematocrit Centrifuge
This Centrifuge used to measure the ratio of blood corpuscle and separate microblood and micro solution.
INQUIRY EMAIL

Application

Hematocrit Centrifuges are used for determination of
erythrocyte fractions in blood as well as micro solution
separations. It provides hematocrit values (HCT) for
testing in biochemistry, immunity, genetics, blood
separation and for general clinical tests for diagnostic
purposes and also for dope tests. They have special
applications for the photometric determination of bilirubin
content in neonate blood samples. They are suitable for
extraction of DNA and RNA. Veterinary clinics and
Vitamins testing for Infants.

Feature

1.DM1424 Model Features:
Speed range of 200-12000 rpm Precise and independent
control of speed and time
Easy operation with intuitive menu and LCD display
Maintenance-free brushless DC motor
Pulse operation for fast and convenient quick spins
Advance features include speed/RCF switch; short-time
run function; audible alert function
Safety features include door interlock, overspeed
detector;over-temperature detector; automatic internal
diagnosis and automatic rotor identification

2.DM1224 Model Features:
Speed range of 500-12000 rpm
Precise control of speed and time
Maintenance-free brushless DC motors
Door interlock

parameters

Specifications	DM1424	DM1224
Speed Range	200 - 12000rpm, increment: 10rpm	500 - 12000rpm, increment: 100rpm
Max. RCF	13680 × g	13680 × g
Speed Accuracy	± 20	± 100
Run Time	30sec - 99min/Continuous	10sec - 99min/Continuous
Motor	Brushless DC motor	Brushless DC motor
Display	LCD	LCD
Safety Devices	Door interlock, Overspeed detector; Automatic internal diagnosis, Automatic rotor identification	Door interlock
Acceleration/Braking time	30s ↑ 30s ↓	40s ↑ 40s ↓
Power Requirements	Single - phase, 200V - 240V, 50Hz/60Hz, 5A; 100V - 120V, 50Hz/60Hz, 5A 160W	Single - phase, 200V - 240V, 50Hz/60Hz, 5A; 380W
Dimension[W×DxH]	280 × 364 × 274mm	280 × 364 × 213mm
Weight	10.5kg	8.5Kg
Certification	CE cTÜVus FCC MCA	--
Advanced features	Speed/RCF switch; Short - time run function; sound - alert function	Speed/RCF switch; Short - time run function; sound - alert function
