High Speed Refrigerated Centrifuge

Category： High Speed Centrifuge
Brand:Shu Yu

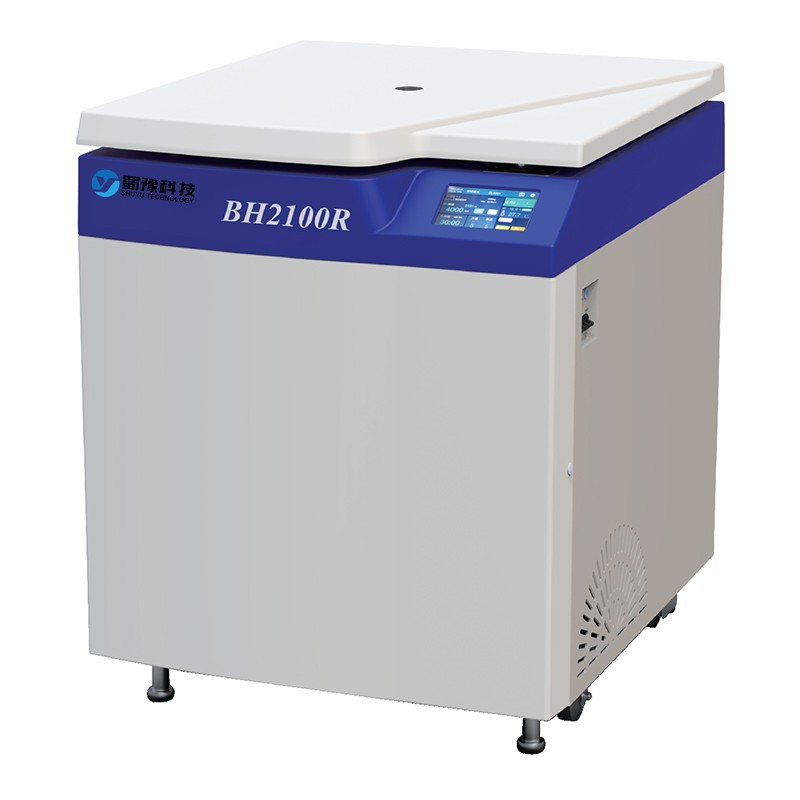

Name：BH2200R/BH2100RHigh Speed Refrigerated Centrifuge
Application：The new - generation intelligent centrifuge with international advanced level features a super - strong and intelligent control system. It is the preferred product for molecular biology, p
INQUIRY EMAIL

Application

The new - generation intelligent Centrifuge with international advanced level features a super - strong and intelligent control system. It is the preferred product for molecular biology, protein, DNA, RNA, cell separation, and clinical medicine.

Main Technical Performances

1. Controlled by a high-definition, large-screen true-color TFT touch screen, it is easy to operate and intuitive to display. The set parameters and real-time operating parameters can be displayed on the same screen.

2. It has ultra-large-capacity operating data and fault records and other information, facilitating the tracking of historical operating data information.

3.The powerful control system can realize ten-level gradient centrifugation to meet diversified experimental needs (100 programs, each program is divided into 10 steps), with functions such as program mode and curve mode. It has a preset program calling function. Users can customize and edit 100 groups of programs, and conduct hierarchical password management to ensure the safe and reliable use of the instrument, facilitating refined management.

4.Optional PLC control system, which can display the control flow chart in real time and dynamically, has PID adjustment function, realizes electronic records and electronic signatures, and can export relevant data via USB and perform PDF printing, meeting the requirements of China's new version of GMP.

5.It has 10 programs of acceleration curves / 11 programs of deceleration curves, and the acceleration / deceleration time can be set as needed.

6.Sample numbers can be entered to check the centrifugation records of each sample.

7.Imported high-performance compressor units are used, with no-fluoride refrigerant R404a, meeting environmental protection requirements.

8. It has a rotor identification function, is equipped with an electronic door lock, and has multiple program protection functions such as unbalance, door cover self-locking, overspeed, and over-temperature to ensure the safe operation of the instrument.

9.ptional imported PC Centrifuge bottles, which are transparent and intuitive, extend the service life, and can be autoclaved.

10.An integral sealing ring made of food-grade silicone rubber is used, meeting GMP certification. The centrifuge has obtained US FDA certification.

parameters

Model	BH2200R	BH2100R
Max Speed	22000r/min	21000r/min
Max RCF	52000×g	50400×g
Max Capacity	6×600ml	6×500ml
Speed Accuracy	±10r/min	±10r/min
Time Setting Range	1s~99h59min59s	1s~99h59min59s
Temperature Setting Range	-20~+40℃	-20~+40℃
Temperature Control Accuracy	±1℃	±1℃
Compressor	Imported high-performance compressor unit, environmental-friendly refrigerant R404a	Imported high-performance compressor unit, environmental-friendly refrigerant R404a
Noise of Compressor	<65dB(A)	<65dB(A)
Power Supply	AC380V 50Hz 40A	AC380V 50Hz 40A
Total Power	7.5kW	7.5kW
Dimension (L×W×H)	910mm×1015mm×1070mm	910mm×1015mm×1070mm
Outer Packaging Size (L×W×H)	1030mm×1135mm×1180mm	1030mm×1135mm×1180mm
Net Weight	350kg	350kg
