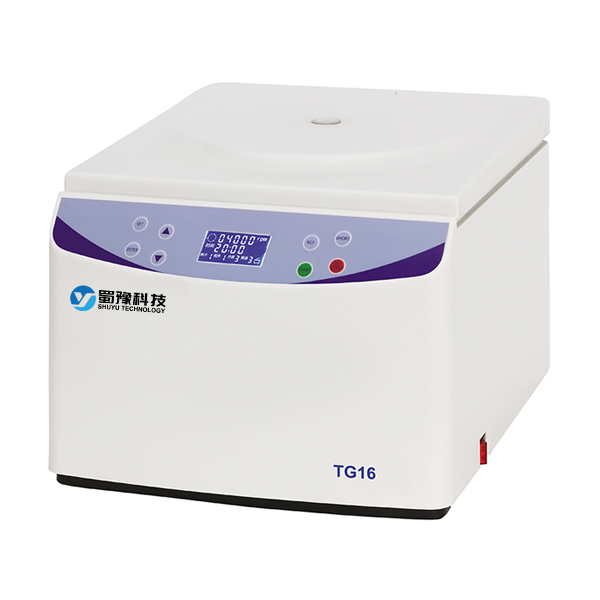

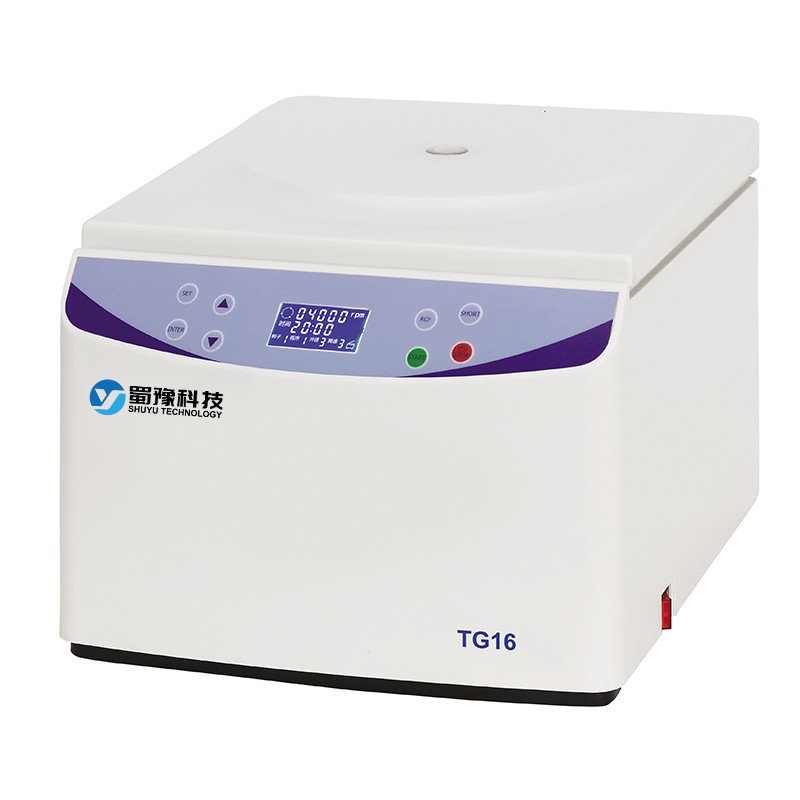

High Speed Benchtop Centrifuges

Category： High Speed Centrifuge
Brand:Shu Yu
Name：TG16 Centrifuges
Application：It is widely applied in fields such as clinical medicine, biochemistry, genetic engineering, and immunology. It is an essential instrument for centrifugal separation in hospitals at all le
INQUIRY EMAIL

Application

It is widely applied in fields such as clinical medicine, biochemistry, genetic engineering, and immunology. It is an essential instrument for centrifugal separation in hospitals at all levels, research institutions, and institutions of higher learning.

Main Technical Performances

1.Microcomputer control, driven by a DC brushless motor, with stable operation, low noise, and high low - speed precision.
2.Touch panel, programmable operation. The main machine operation parameters can be set according to requirements and automatically stored.
3.LCD display, human - oriented interface, simple and convenient operation.
4.Real - time conversion and setting of readings between rpm/RCF, convenient and fast.
5.Equipped with an electronic door lock, with multiple protection functions such as door cover protection and overspeed protection, and automatic fault alarm function, safe and reliable.
6.Adopt an integral sealing ring made of food - grade silicone rubber, in line with GMP certification. The Centrifuge has obtained US FDA certification.
7.With 9 programs of acceleration curves/10 programs of deceleration curves, the acceleration/deceleration time can be set as required.
8.An optional three - axis gyro unbalance detector, with high unbalance detection sensitivity and high detection reliability. It can adjust the detection control threshold according to different Centrifuge dampers, with fast response speed, online threshold adjustment, convenient adjustment, long service life, good impact resistance and vibration resistance performance, etc.

parameters

Model	TG16
Max Speed	16000r/min
Max Relative Centrifugal Force	23669×g

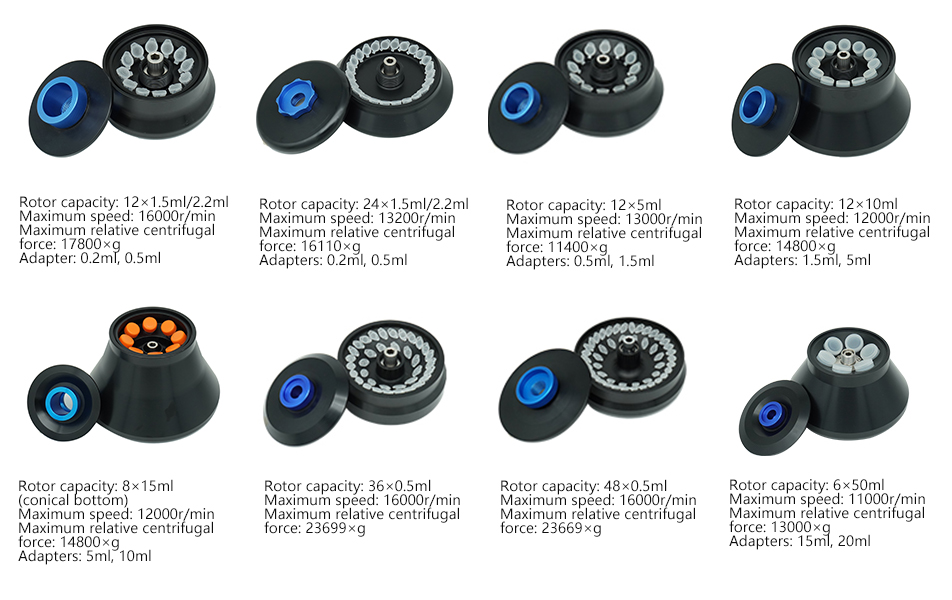

Max Capacity	6×50ml
Speed Accuracy	±30r/min
Time Setting Range	1s - 99min59s
Overall Noise	<65dB (A)
Power Supply	AC220V 50Hz 5A
Overall Power	750W
Overall Dimensions (L×W×H)	330mm×420mm×280mm
Outer Packaging Dimensions (L×W×H)	430mm×520mm×390mm
Net Weight	20kg
