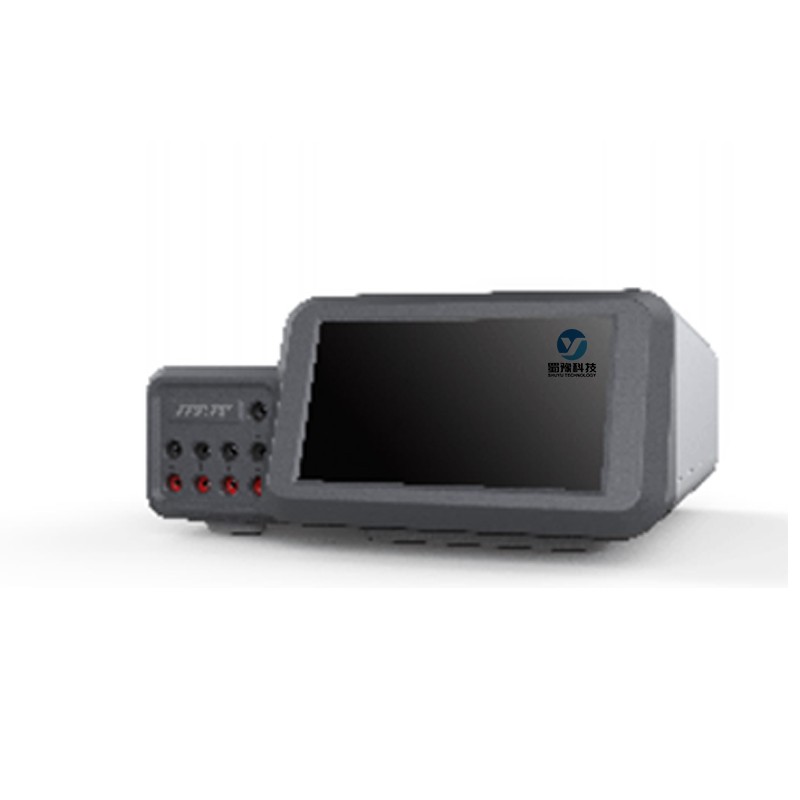

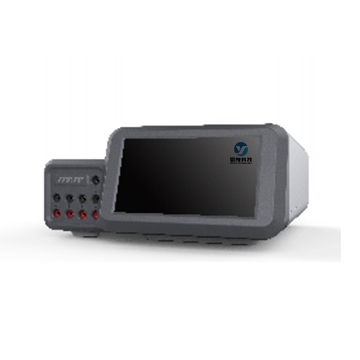

HT-600C Universal Electrophoresis Power Supply

Description
In experimental fields such as biology and chemistry, electrophoresis techniques are frequently employed for the separation and analysis of biomacromolecules, including nucleic acids and proteins. This power supply delivers continuously adjustable outputs of constant voltage, constant current, and constant power, enabling simultaneous connection to multiple electrophoresis chambers. It further incorporates functions such as timers, temperature monitoring, and stepwise control, thereby ensuring the precision and efficiency of electrophoresis experiments. It constitutes an essential instrument for laboratories conducting electrophoresis-related research and analytical work.

Parameters
Universal Power Supply
Input range: 110-250V, suitable for use in different countries
Four sets of output jacks: High current can connect four electrophoresis tanks simultaneously
Type of Output: constant voltage, constant current, and constant power, continuously adjustable
Output range: HT-600C: 5-600V 1-600mA 5-300W
HT-600D: 5-600V 1-1200mA 5-500W
Increment: Voltage (1V) Current (1mA) Power (1W)
Timing range: 1 minute to 99 hours and 59 minutes
Temperature detection: -20 ℃~+85 ℃
Step-by-step control function:editable 10 groups, each group of up to make 10 program automatic connection operation
Protection function: when overcurrent, overload, over temperature, no load, short circuit
Micro current: After timed operation, unmanned shutdown can maintain micro current output
Display screen: 7-inch large touch screen, automatic generation of Numeric keypad during setting, display timing, temperature, operation status and various prompt operations
Automatic setting: When a certain indicator of constant voltage, current, and power is set, the other two items automatically increase to the maximum value, No need for manual adjustment.
External dimensions: 30 * 30 * 13cm
