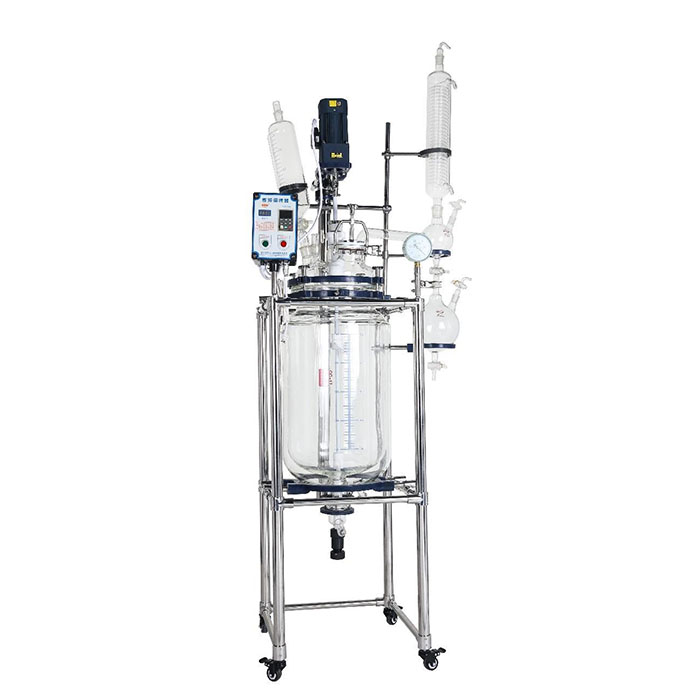

Double-walled Glass-lined Reactor YSF-100L

Category： Glass Reactor
Brand:Shu Yu
Model：YSF-100L
application：Laboratory,School,testing instrument.
INQUIRY EMAIL

Working Principle

The double-walled Glass Reactor features a stirring system, condensation, addition, reflux, and collection systems. The inner layer holds the reaction solvent for stirred reactions, while the jacket circulates heating or cooling sources to facilitate high-temperature reactions (maximum temperature up to 300°C) or low-temperature reactions (minimum temperature down to -80°C). During heated reactions, vacuum conditions enhance evaporation efficiency (requires vacuum apparatus connection). Solvent vapour condenses into liquid upon passing through the glass cooling coil (requires cooling apparatus connection), which may be refluxed into the reactor or recovered via the lower valve of the reflux elbow. Upon reaction completion, material discharges via the bottom side outlet. The fully transparent process offers clear visibility, making it an ideal pilot-scale apparatus for modern biopharmaceuticals, fine chemicals, and new material synthesis.

Product Features
1. This unique apparatus features an all-stainless steel frame construction (with precision-fitted three-way and four-way connectors), offering a compact, robust, and non-deformable structure that is easily manoeuvrable.
2. All parts in contact with materials utilise high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene (PTFE), ensuring stable performance, minimal chemical interaction with materials, and convenient, safe operation.
3. The proprietary variable-frequency speed control allows precise and flexible operation across low, medium, and high speeds. An optional fully explosion-proof system is available, featuring a dual-display explosion-proof box that digitally shows both the speed and the temperature of the material inside the vessel. This system offers stable performance, clear display of control and data interfaces, and is simple to operate.
4. The stirring system employs ceramic bearings and mechanical seals to prevent wear and debris shedding from the stirring rod. It is resistant to high temperatures and wear, and provides excellent sealing performance.
5. Incorporates PT100 temperature sensors with glass thermometer sleeves.
6. Vacuum pressure gauge displays real-time vacuum levels via pointer indication.
7. Crescent-shaped stirrer blades: 304 stainless steel + PTFE-coated impellers; stirrer shaft constructed from 304 stainless steel. Outer PTFE tubing provides high strength and exceptional corrosion resistance.
8. Glass + PTFE discharge valve enables side discharge without liquid accumulation, facilitating rapid solution recovery.

9. Equipped with swivel castors with brakes at the base for easy overall movement and convenient operation.

parameters

Model

YSF-100L

Effective Volume in Reactor (L)

100L

Jacket Volume (L)

~30L

Power Supply

220V/50Hz

Glass Material Components

High Borosilicate Glass 3.3

Reactor Temperature Range

-80℃ ~ +250℃

Temperature Measurement Accuracy

±1℃

Constant Pressure Funnel Volume (L)

2L

Constant Pressure Funnel Specification

Upper 29# Ground Stopper, Lower 40# Ground Joint

Condenser Specification

Φ120×700H (mm)

Condenser Heat Exchange Area (m²)

0.7m²

Condenser Circulation Interface Size

16mm

Receiving Flask Volume (L)

5L

Allowable Internal Pressure of Reactor (Mpa)

-0.1-0.0

Allowable Jacket Pressure (Mpa)

≤0.03

Agitator Motor - Rated Power (W)

300W

Agitator Motor - Speed Regulation Method

Servo Motor, Frequency Control

Agitator Motor - Speed Regulation Range (rpm)

0-800rpm/min

Agitator Motor - Agitator Opening

60# Flange Opening

Reactor Lid Openings (340mm) - Solid Feeding Opening

95# Flange Opening

Reactor Lid Openings (340mm) - Constant Pressure Funnel Opening

40# Ground Joint

Reactor Lid Openings (340mm) - Vent Opening

34# Ground Joint

Reactor Lid Openings (340mm) - Condenser Connection Opening

50# Ball Ground Joint

Reactor Lid Openings (340mm) - Temperature Measurement Opening

43 Flat Flange

Main Frame Material

SUS304 Stainless Steel + Fluororubber Flange

Agitator Blade

Φ17mm Blade, Blade Span 230mm

Reactor Inlet and Outlet Interface Specification for Temperature Control Medium

Outer Diameter 35mm Flange, with 6-inch External Thread Stainless Steel Oil Inlet and Outlet

Temperature Sensor

PT100, Glass Thermometer Sleeve Length 820mm

Vacuum Suction Opening Size

10mm

Discharge Valve

No Residue Discharge Valve, Outer Diameter of Discharge Opening 33mm

Operating Ambient Temperature (℃)

5-35

Machine Dimensions (mm)

900L×720W×2800H (mm)

Packaging Dimensions (mm)

1980L×800W×750H (mm)

Net Weight (Kg)

138Kg
