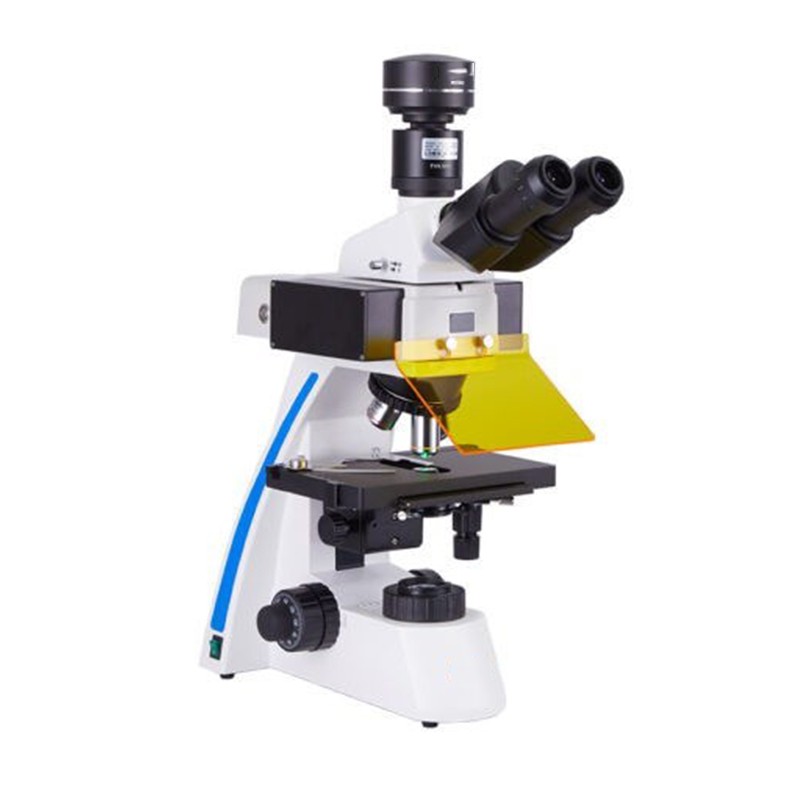

Entry-level upright fluorescence microscope MF31
- Category： Fluorescence microscope
- Brand:Shu Yu
- Name：Entry-level upright fluorescence microscope MF31
- Application：Research Institutes, Colleges and Universities, Healthcare, Biomedicine
MF31 series fluorescence microscope adopting excellent quality infinity optical system combined with LED fluorescence illuminator. The LED fluorescence system is modular design, does not need external power box, it can offer blue, green and UV fluorescence excitation groups. Digital screen shows and remember each fluorescence channel light intensity. The microscope is good for entry level fluorescence observation such as immunofluorescence and bio-fluorescence, and bright field of biological slide. It is easy to operate, environment protect and high safety, widely used at school, university lab, medical center and science research institute. Users can chose different models based on fluorescence channels.
Feature
Excellent accessory compatibility:■Compatible with various accessories that use the UIS2 standard, such as UIS2 objectives and microscope imaging interfaces.

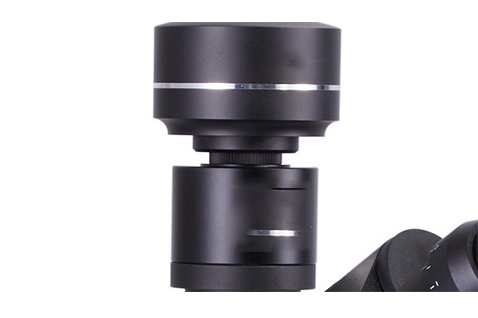

■More expansion can be achieved by selecting corresponding accessories. For example, using the 1.2X T2 interface, it can be adapted to an APS-C format SLR or Microscope. Image on a single screen without the problem of black edges.
■Using MSHOT LED fluorescence module, single-color fluorescence or three-color fluorescence excitation can be selected. In addition to the common BGU three-color fluorescence configuration, there are also Y, R, BG dual-pass and other channel configurations.
■Meet the needs of cell slide observation, respiratory virus detection, tuberculosis Detection, dermatophyte detection and other common fluoroscopy needs.
■The LED digital display fluorescent module can be turned on and off immediately after use. The brightness is adjustable by 1% and the brightness of each channel is independently memorized.
■The digital display screen can clearly display the current channel and brightness settings for easy quantification.
Through the special optical design, the imaging within the entire field of view maintains high clarity and flatness. This overcomes the problem of blurry imaging at the edges of the field of view of traditional achromatic objectives and improves observation comfort and accuracy.
Specifications
|
Parts |
Specification |
|
Eyepiece |
WF10X/FN22mm |
|
Observation tube |
Trinocular tube, 30°inclined |
|
Nosepiece |
Quadruple nosepiece, ball bearing with anti fungus deviceQuintuple nosepiece, ball bearing with anti fungus device |
|
Objective |
Infinity Plan Achromatic Objective 4X/10X/40X/100X |
|
Fluorescence system |
Filter cube Filters |
|
|
B EX:460‒490nm |
|
|
G EX:510-550nm |
|
|
UV EX:330-380nm |
|
|
BU EX: U:330-380nm；B:460‒490nm |
|
|
BGU EX: U：330-380nm；B：460‒490nm；G :510-550nm |
|
Focus system |
Fine and coarse adjustment with tension and limited stopper, 2μm scale, coarse stroke per rotation 40mm, fine stroke per rotation 2μm, focusing vertical movement 24mm |
|
Stage |
Double layer mechanical movable stage, size 210×140mm, travel motion76x50mm |
|
Transmitted illumination system |
White LED lamp with brightness adjustableAbbe condenser NA1.25 |
|
Camera adapter |
1X C-mount0.5X C-mount |
|
Accessories |
Allen driverDust cover |
